CE81PF-8
- CE81PF-8
- DAYTON AUDIO

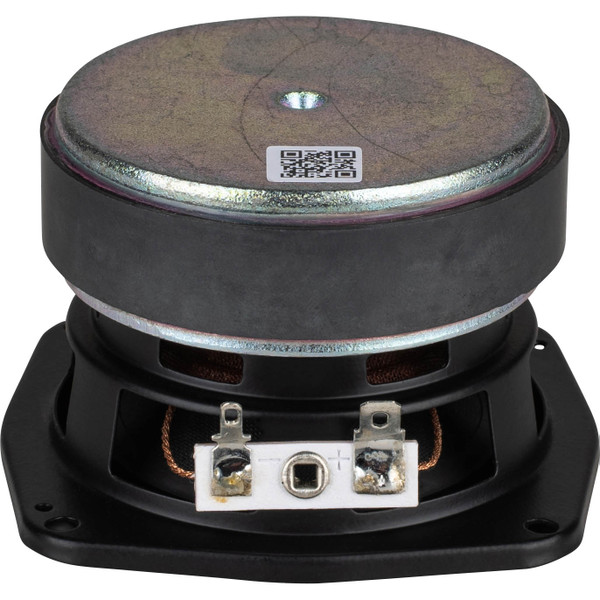

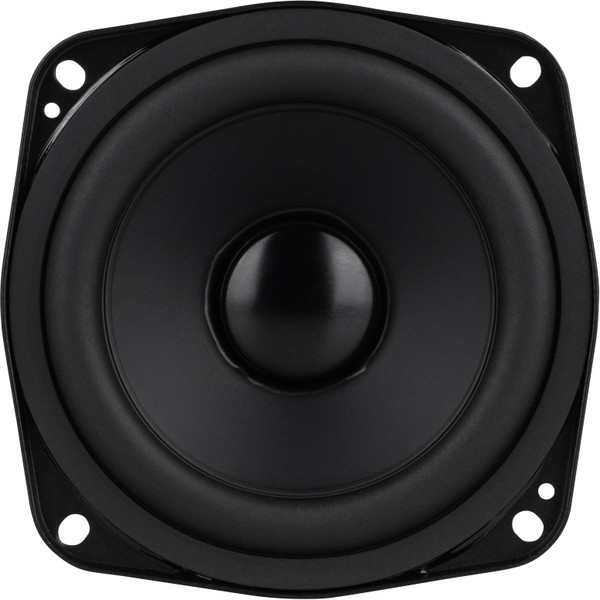

Dayton Audio CE Series CE81PF-8, 81mm (3in) Full-Range 15W 8 ohm
This speaker is a small but mighty workhorse, perfect for any DIY audio project on a budget. Don't let the compact size of Dayton Audio's CE81PF-8 3" full range speaker fool you. It packs a punchy 15 watts of power in an 8-ohm design, ideal for use in commercial environments, manufacturing facilities or for small-scale installations where space is at a premium but sound quality can't be compromised. Economically priced but engineered with the same dedication to detail as Dayton Audio's high-end models, the CE81PF-8 is a micro speaker that delivers macro performance. Whether you need an unobtrusive solution for background music in a retail space or a driver that can handle vocal reinforcement in a boardroom, this full-range driver raises the bar for what you can expect from an affordable commercial speaker.
- High Economic Value
- Delivers crisp, clear audio, ensuring an immersive listening experience
- High-quality audio solutions without breaking the bank, ideal for budget-conscious projects
- Suitable for commercial use, DIY projects, art exhibits, and more
Product Specifications |
|
|---|---|
| Power Handling (RMS) | 15 Watts |
| Power Handling (MAX) | 30 Watts |
| Impedance | 8Ω |
| Frequency Response | 118 - 12,000Hz |
| Sensitivity | 90dB 2.83V/1m |
| Voice Coil Diameter | 20" |
Thiele-Small Parameters |
|
|---|---|
| Resonant Frequency (Fs) | 101Hz |
| DC Resistance (Re) | 6.7Ω |
| Voice Coil Inductance (Le) | 0.1mH |
| Mechanical Q (Qms) | 11.03 |
| Electromagnetic Q (Qes) | 1 |
| Total Q (Qts) | 0.91 |
| Compliance Equivalent Volume (Vas) | 0.03ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.8mm/N |
| BL Product (BL) | 3.63T·m |
| Diaphragm Mass Inc. Airload (Mms) | 2.9g |
| Maximum Linear Excursion (Xmax) | 2.65mm |
| Surface Area of Cone (Sd) | 30.19cm² |
