Crossover Assembly – Solen Inc.

The best way to go about assembling a crossover is to align the pieces as they appear on the diagram.

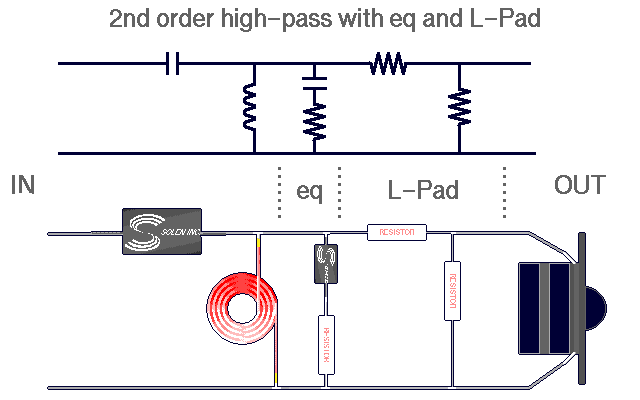

Here’s an example :

cross

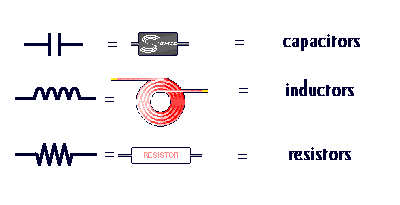

Notice that the parts are identified as such :

cropart

Simply align the parts on a perforated masonite board and solder them point to point.

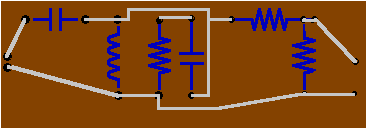

The final crossover once assembled should look like this from underneeth, whithout the blue drawings that are only there as a reference.

cross2

The procedure for a low pass is similar and it is just as simple to place both, high and low pass, on the same board.
