E150MR-4
Out of stock

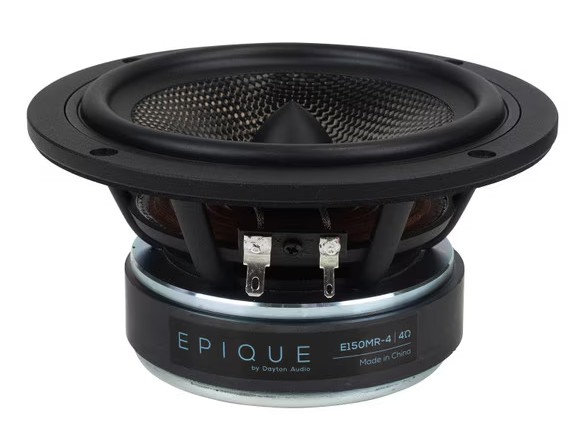

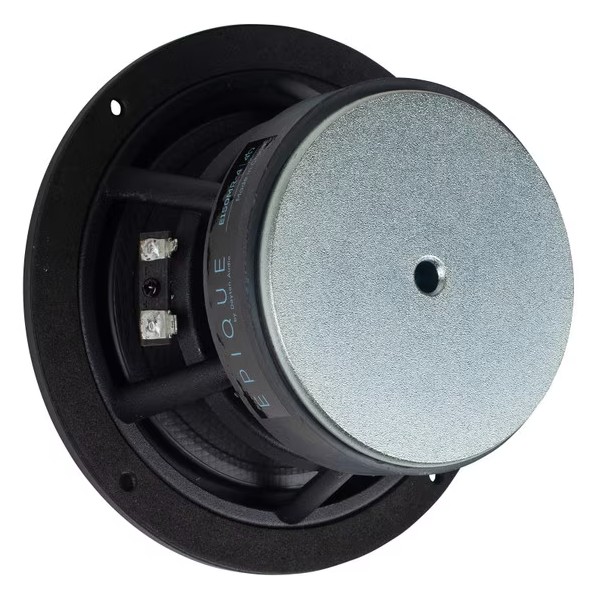

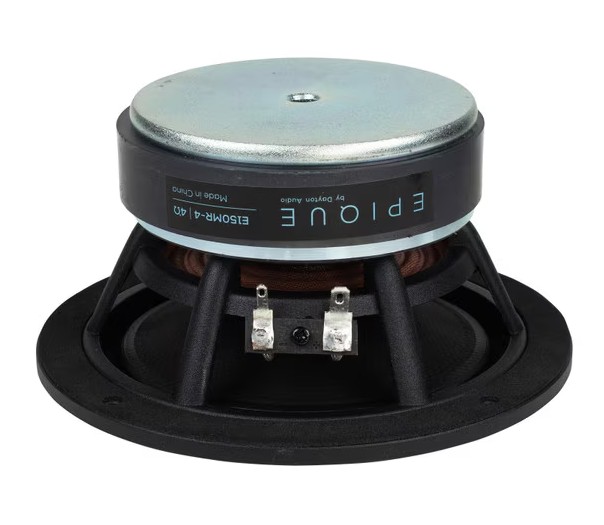

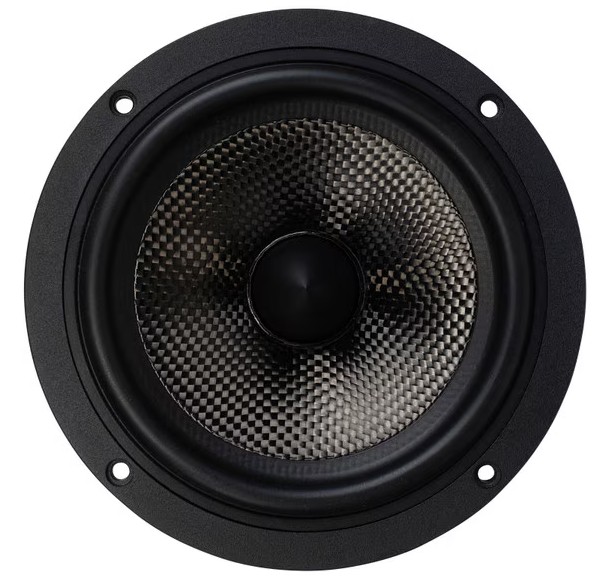

Dayton Audio Epique E150MR-4, 152mm (5.5in / 5-1/2in) Wide-Band Carbon Fiber Midrange Driver 4 Ohm.
CA$88.16Each
- E150MR-4
- DAYTON AUDIO
Dayton Audio Epique E150MR-4, 152mm (5.5in / 5-1/2in) Wide-Band Carbon Fiber Midrange Driver 4 Ohm.
The Dayton Audio Epique E150MR-4 is a wide-band midrange driver designed to deliver clear, fast, and controlled sound across nearly 7 octaves. Focused on low distortion and high efficiency, it uses an advanced motor design and carefully selected materials to produce clean, accurate output from 70 to 7,000 Hz. A rigid cast frame, carbon fiber cone, and effective cooling ensure stable, dependable performance, while the matching carbon fiber cone weave maintains a consistent look with other Epique drivers—making the E150MR-4 a strong choice for premium home audio systems, studio monitors, and custom loudspeaker designs.
Key Features
- High-performance wide-band midrange driver covering a wide, usable frequency range from 70 to 7,000 Hz
- 4-ohm configuration designed for high efficiency and powerful, dynamic output
- Lightweight yet rigid carbon fiber cone with indexed cone and surround for a smooth transition minimizing diffraction
- Advanced motor design featuring a copper cap and aluminum shorting sleeve to significantly reduce distortion
- Titanium former paired with a solid aluminum phase plug for enhanced thermal stability and improved detail
- Rigid cast frame that minimizes vibration and ensures stable, precise operation
Key Specifications:
- Impedance: 4 Ohms
- Re: 3.6 Ohms
- Fs: 75 Hz
- Qts: 0.52
- Qes: 0.61
- Qms: 3.62
- SPL: 92.6 dB
- Frequency Response: 70 - 7,000 Hz
- Power Handling: 60W RMS
- Matching carbon fiber cone weave aligns with existing Epique drivers for seamless aesthetic continuity across multi-driver systems
| FILENAME | ACTION |
|---|---|
| e150mr-4-specification-sheet.pdf | Download |
