KABM-215
4 left in stock

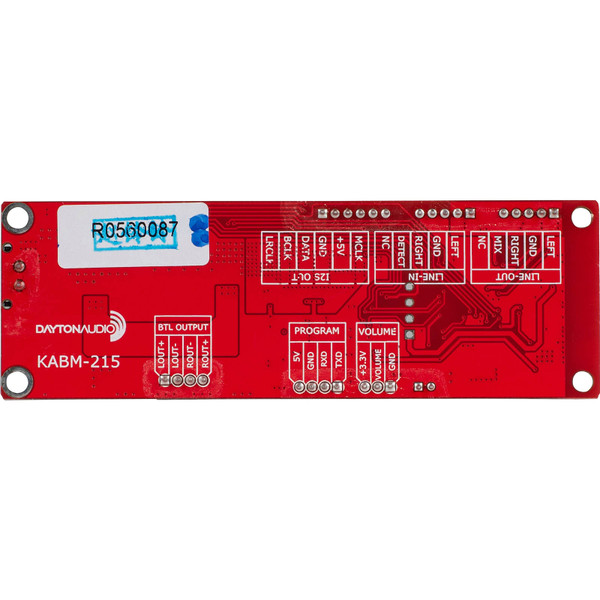

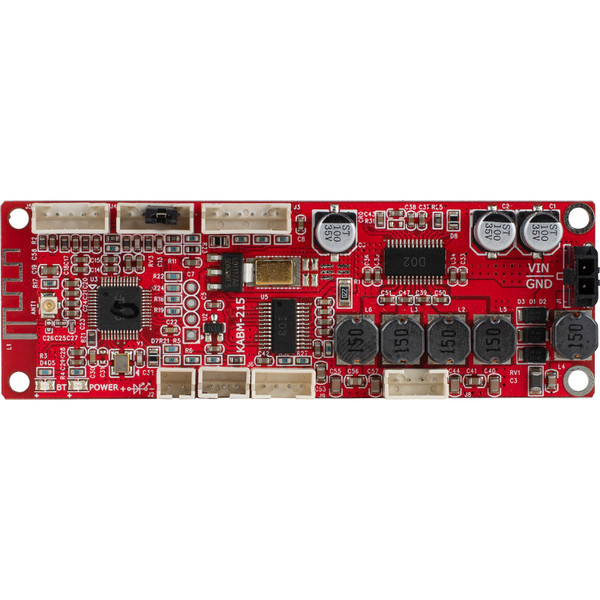

Dayton Audio KABM-215 2 x 15W Bluetooth 5.0 Amp Board with EQ Programing Port
CA$29.39Each
- KABM-215
- DAYTON AUDIO
Dayton Audio KABM-215 2 x 15W Bluetooth 5.0 Amp Board with EQ Programing Port
Are you looking for a compact and versatile audio solution for your next DIY audio project? Look no further than the KABM-215! This tiny Bluetooth 5.0 amplifier board, just slightly larger than a stick of gum, is perfect for portable speaker builds. Preprogram the sound output to match the cabinet and driver size with the KPX programmer (sold separately) and free KABM software.
Key Features
- Add programmable sound customization with the free KABM software via the KPX programmer board (sold separately)
- Plug-N-Play JST-PH and Molex Mini-Fit Jr wire harnesses make installation quick and simple
- Bluetooth 5.0 built directly into the board -- no need for a separate module
- Small footprint slightly larger than a stick of gum
- SNR 99 dB for crystal clean sound reproduction
- Includes accessories for full functionality (just add power and speakers)
- 5-year Dayton Audio warranty

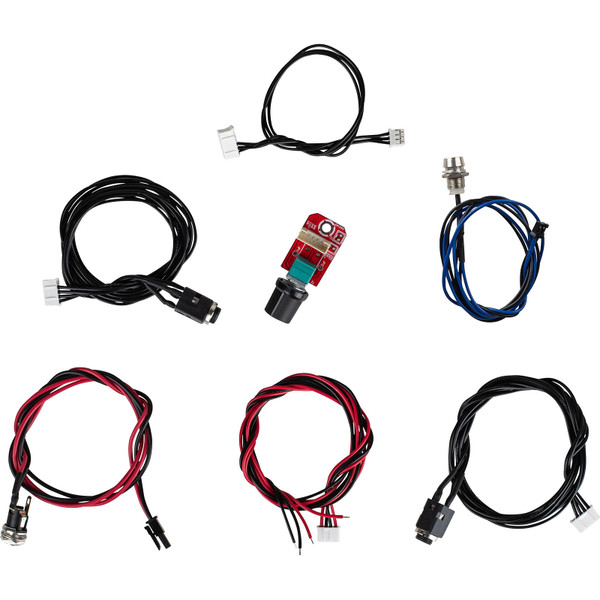

Package Includes
- One Dayton Audio KABM-215 Bluetooth Amplifier Board
- One 20" 2-conductor power cable with a 2.1 x 5.5 mm tip positive DC coax jack attached
- One 4-conductor speaker cable 20"
- One Bluetooth external stick-on antenna with 5" pigtail
- One 20" Aux input cable with 3.5 mm stereo jack
- One 20" Aux output cable with 3.5 mm stereo jack
- One 20" cable with blue LED
- One 7.5" cable for the volume control
- One 10K volume control with knob
Specifications:
- Power output (w/ 15 VDC power supply): 2 x 15W @ 8 ohms
- SNR: 99 dB Line in 2 x 15W @ 8 ohm, A-weighting
- THD: 0.02% @ 8 ohms, 2W, 1 kHz
- Frequency response: 22 to 20,000 Hz (±3 dB)
- Impedance: 6-8 ohms
- Line level sensitivity: 0.775V
- Bluetooth range: 50 ft.
- Stereo full range audio line output: Volume controls doesn't effect the output
- Recommended power supply: 12 to 16 VDC, 4A
- Board mounting holes center to center spacing: 3.53" x 1.03" (89.66 x 26.16 mm)
- Hole diameter: 0.14" (3.5 mm)
- Dimensions: 3.75" L x 1.25" W x 0.5" H
| FILENAME | ACTION |
|---|---|
| kabm215.pdf | Download |
