MX6-22
4 left in stock

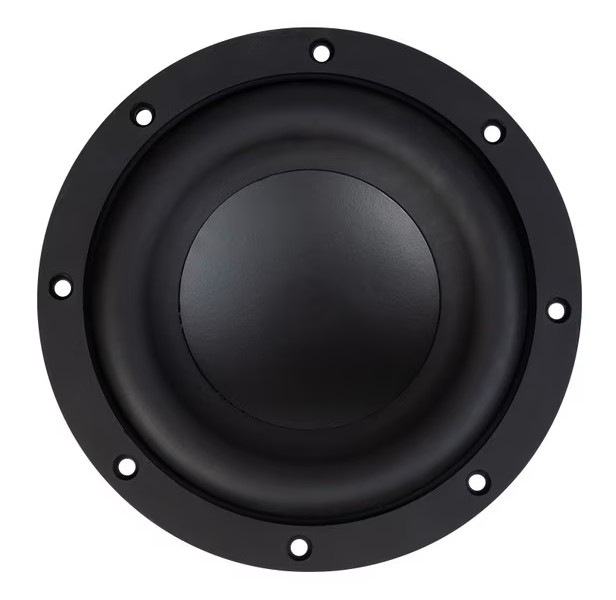

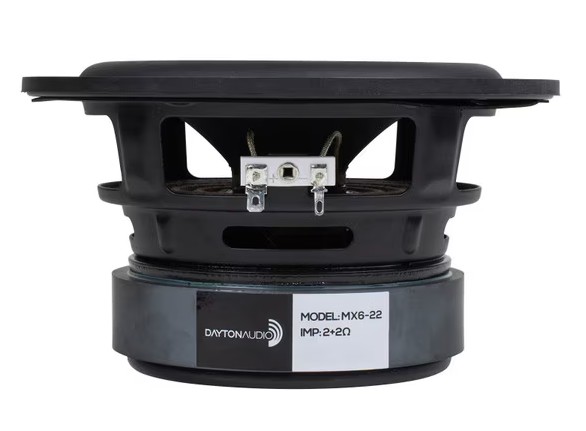

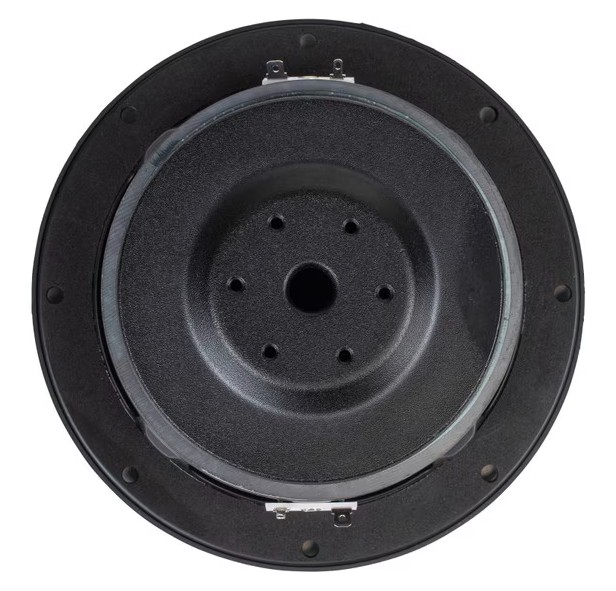

Dayton Audio MX6-22, 182mm (6-1/2") Max-X High Excursion DVC Subwoofer Driver 2 Ohms Per Coil.
CA$86.75Each
- MX6-22
- DAYTON AUDIO
Dayton Audio MX6-22, 182mm (6-1/2") Max-X High Excursion DVC Subwoofer Driver 2 Ohms Per Coil.
The Dayton Audio MX6-22 subwoofer packs impressive performance into a compact 6-1/2" frame, allowing surprisingly deep and powerful bass from places where larger subs simply won’t fit. Its long-throw design, vented architecture, and distortion-taming aluminum shorting sleeve keep the low end tight, clean, and powerful whether you drop it into a home build or a car audio project. Its modern, seamless look fits any setup, and the robust build stands strong during demanding low-frequency bursts. Thanks to its dual 2-ohm voice coils, the MX6-22 can be compatible with most amplifiers and brings full, satisfying bass to a wide range of installations.
Key Features
- Long-throw motor and low resonance frequency deliver powerful low-frequency output from compact enclosures
- Full-coverage concave dust cap reinforces the paper cone and creates a clean modern appearance
- Aluminum shorting sleeve stabilizes inductance for lower distortion across the operating range
- Vented frame, vented pole piece, and gap vents improve airflow to reduce heat buildup and compression
- Surround profile covers the frame for a seamless look and increased adhesive bonding area
- Precision-tooled steel frame provides the structural clearance needed for high travel limits
- Dual 2-ohm voice coils allow flexible wiring options for optimal amplifier loading
Key Specs:
- Nominal Diameter: 6-1/2"
- Power Handling (RMS): 70 watts
- Power Handling (MAX): 140 watts
- Impedance: Dual Voice Coil, 2 Ω + 2 Ω
- Frequency Response: 25-1,000 Hz
- Sensitivity: 83 dB 2.83V/1m
- Voice Coil Diameter: 1.5"
- Maximum Linear Excursion: 12mm
| FILENAME | ACTION |
|---|---|
| mx6-22-spec-sheet.pdf | Download |
