12PR300-4
- 12PR300-4
- FAITALPRO

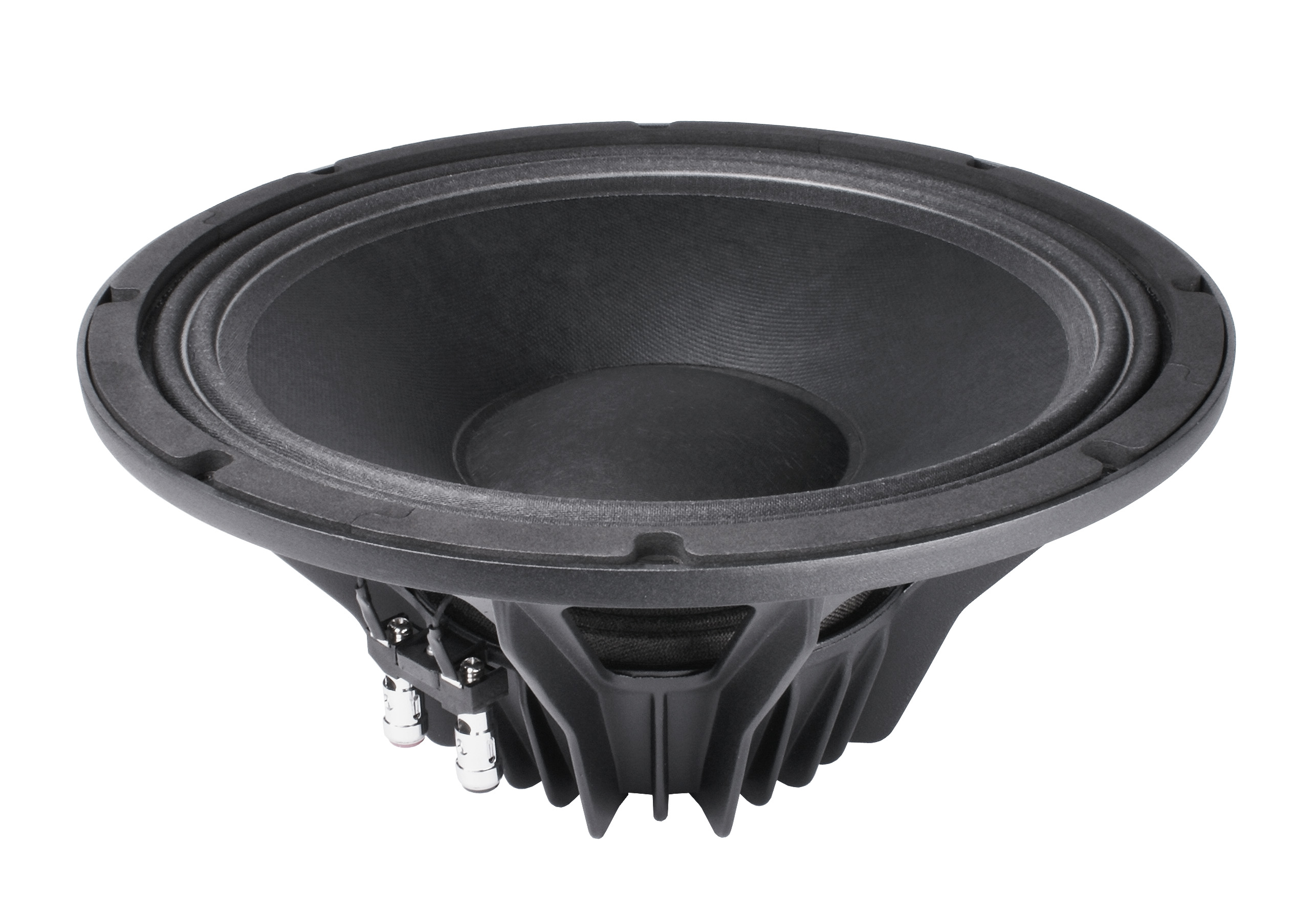

FaitalPRO 12PR300, 316mm (12.44in) Treated Paper Cone Pro Neodymium Midbass, with 65mm (2.56in) Voice Coil, 4ohm.
With high sensitivity and a ruler-flat frequency response from 50 Hz to 5,000 Hz, FaitalPRO's 12PR300 12" midbass is perfect for replacing and upgrading tired, worn-out midbass in small to large-sized, vented two-way speakers. The 12PR300 is a great choice for live sound and high output home audio speakers.
An eight-spoke, cast-aluminum frame adds structural integrity, while the treated paper cone and polycotton M-Roll surround can withstand years of constant use. The 300 watt RMS power handling rating is made possible by the use of a 2.5" voice coil on a glass fiber former. A neodymium slug motor keeps weight low, just over 5-1/2 pounds. Made in Italy.
Key Features
- Lightweight design weighs just over 5-1/2 pounds
- 97 dB sensitivity due to high-energy neo motor
- Four ohm impedance
- Durable cast-aluminum frame
- Ultra-linear frequency response
- Made in Italy
Nominal Specifications
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 315.2 mm (12.4 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 283 mm (11.14 in) |
| Depth | 140.6 mm (5.54 in) |
| Flange and Gasket Thickness | 12.1 mm (0.48 in) |
| Net Weight | 2.5 kg (5.5 lb) |
| FILENAME | ACTION |
|---|---|
| 12PR300-4.pdf | Download |
