18HP1030-8
- 18HP1030-8
- FAITALPRO

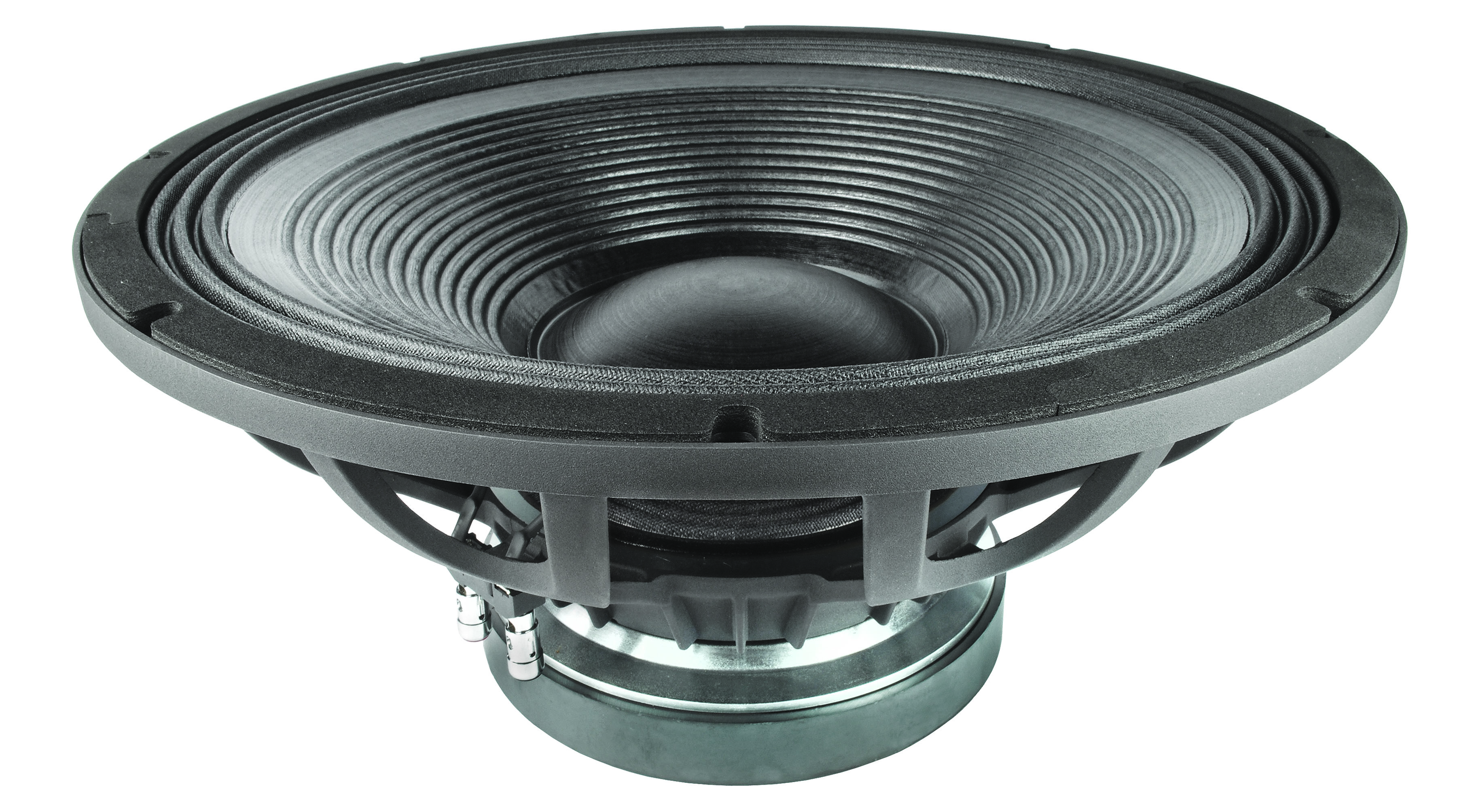

FaitalPRO 18HP1030, 460mm (18.11in) Treated Paper Cone Pro Subwoofer, with 100mm (4in) Voice Coil, 8ohm.
FaitalPRO's 18HP1030 18" professional subwoofer features 1,200 watts of RMS power handling thanks to a 4" diameter voice coil on a glass fiber former. A cast aluminum eight-spoke frame reduces rear reflections and increases basket strength, while the triple roll treated polycotton surround maintains linearity during heavy excursion. The vented backplate lowers voice coil temperatures.
For an extended frequency response and reduced distortion, the 18HP1030 employs an aluminum demodulation ring on top of the pole piece to reduce inductance down to a low 1.48 mH. 12.45 mm of Xmax on tap allows you to use this woofer in vented cabinets that are tuned very low. Made in Italy.
Key Features
- 1,200 watt power handling
- Low distortion motor with an aluminum demodulation ring
- Over 12 mm of Xmax for deep bass reproduction
- Custom cast aluminum frame
- Made in Italy
Nominal Specifications
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 421 mm (16.57 in) |
| Depth | 208.35 mm (8.20 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 12.1 kg (26.7 lb) |
