3FE22-8

6 left in stock

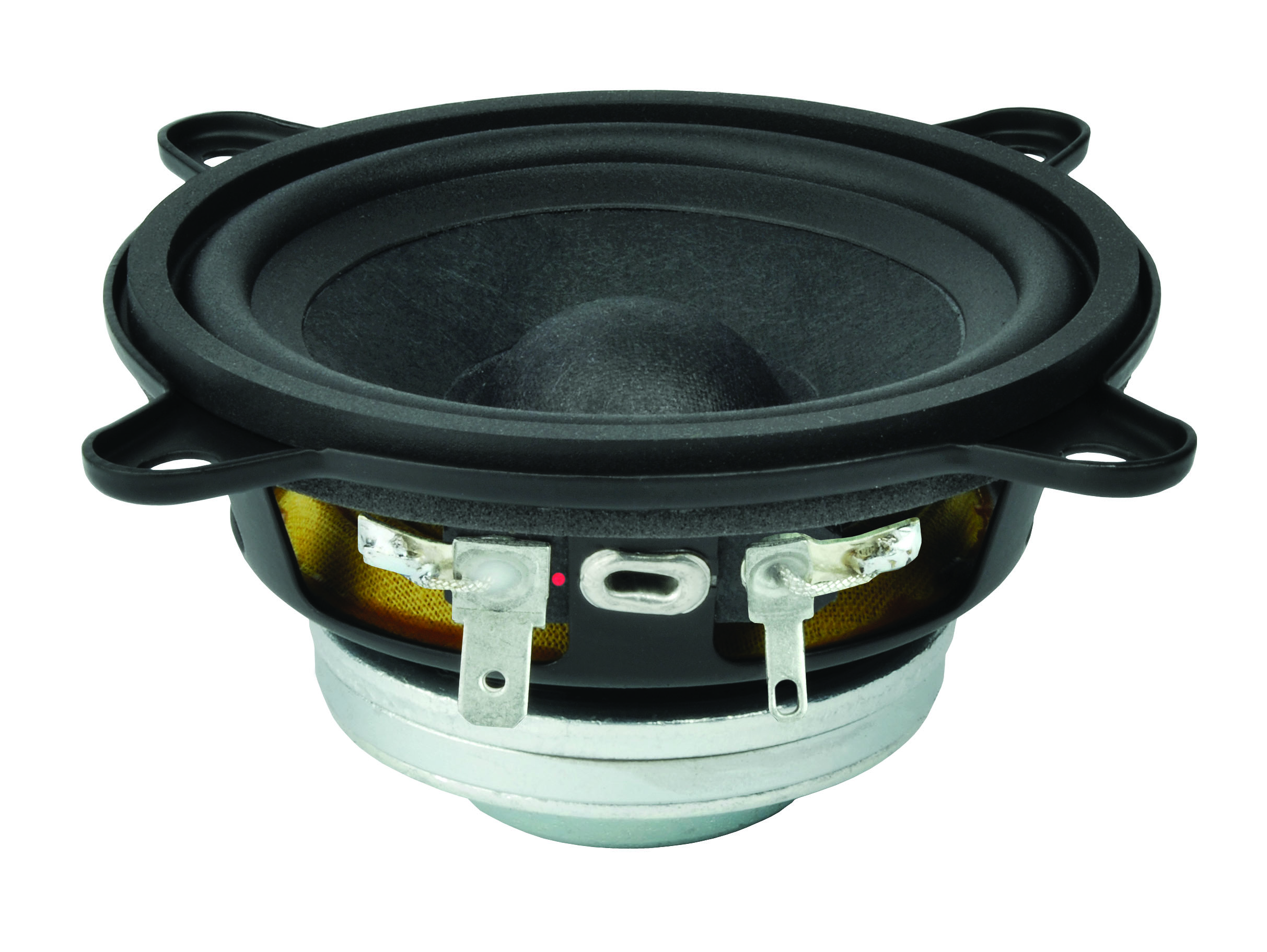

FaitalPRO 3FE22, 81x81mm (3.25x3.25in) Treated Paper Cone Pro Fullrange, with 19mm (3/4in) Voice Coil, 8ohm.
CA$58.80Each

FaitalPRO 3FE22, 81x81mm (3.25x3.25in) Treated Paper Cone Pro Fullrange, with 19mm (3/4in) Voice Coil, 8ohm.



FaitalPRO's 3FE22 3" neodymium professional fullrange has exceptionally flat response from 100 Hz to 20,000 Hz, both on and off-axis, and features a 91 dB sensitivity due to a large neodymium ring magnet. Distortion is reduced through the use of a copper cap to create a demodulation circuit in the motor.

Great for use in compact professional line array speakers, the 3FE22 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a midbass, midrange, or full-range speaker. Made in Italy.



Key Features

  • Great for use as a midrange, midbass, or full-range driver
  • Ultra-flat frequency response
  • Copper cap in the motor for reduced distortion
  • Made in Italy



Nominal Specifications

Nominal Diameter 80 mm (3 in)
Overall Diameter 105.6/81 mm (4.16/3.19 in)
Bolt Circle Diameter 92 mm (3.62 in)
Baffle Cutout Diameter 73.6 mm (2.90 in)
Depth 46 mm (1.81 in)
Flange and Gasket Thickness 6.5 mm (0.26 in)
Net Weight 240 g (0.5 lb)
FILENAME ACTION
3FE22-8.pdf Download
