HF200

Special Order
Please allow a minimum of 2 weeks for delivery.

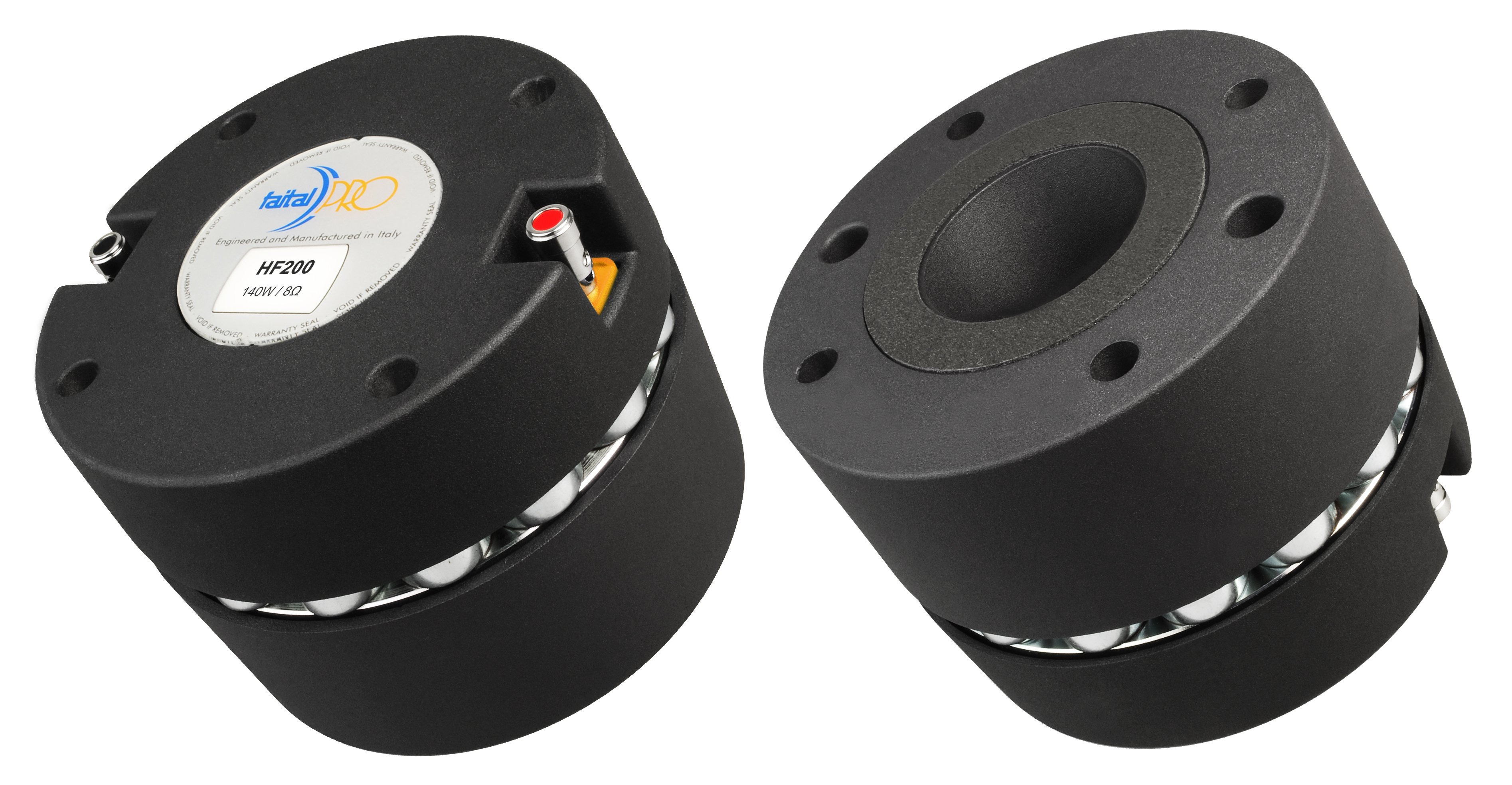

FaitalPRO HF200, 74mm (2.9in / 2-7/8in) COMPRESSION NEODYMIUM DRIVER 8 OHM, 2in THROAT, 4-BOLT.
CA$604.80Each

FaitalPRO HF200, 74mm (2.9in / 2-7/8in) COMPRESSION NEODYMIUM DRIVER 8 OHM, 2in THROAT, 4-BOLT.



FailtalPRO's HF200 2" compression horn driver uses a radial neodymium slug motor design to pack as much BL product into the voice coil gap as possible. When combined with the titanium diaphragm, the HF200 produces smooth, neutral sound over a broad range (from 500 to 18,000 Hz).

The high energy motor is also responsible for output up to 111 dB with only one watt of input power, with a 109 dB average sensitivity, while keeping the total weight of the driver around seven pounds. Built with an annular phase plug. Made in Italy.



Key Features

  • Large voice coil for high power handling
  • Neo radial motor design for light weight and high output
  • Titanium diaphragm for smooth output
  • Wide band 500 Hz to 18,000 Hz frequency response



Specifications:

• Power handling: 50 watts RMS (above 650 Hz), 70 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope

• VCdia: 74mm (2.91")

• Impedance: 8 ohms

• Frequency response: 500-18,000 Hz

• SPL: 109 dB 1W/1m

• Dimensions: 130.5mm (5.14") diameter x 95mm (3.74") depth

• Bolt pattern:  4 x M6

• Weight: 3.2Kg (7.1 lbs).

FILENAME ACTION
HF200.pdf Download
