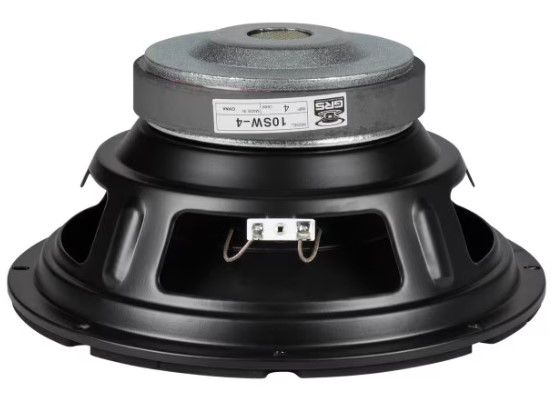

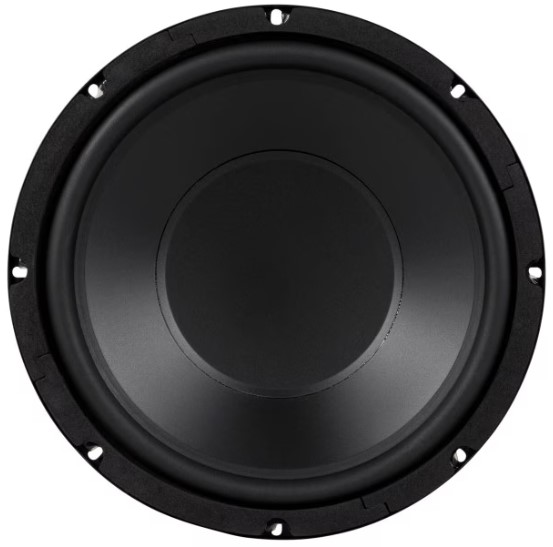

GRS 10SW-4, 254mm (10in) Poly Cone Subwoofer 4 Ohm.
- Butyl rubber surround ensures high excursion and long-term durability
- Polypropylene cone for perfect balance of stiffness, mass, and self-damping
- Long-throw design for deep, powerful bass
- Large 2" voice coil and bumped back plate enable high power handling
Now you can replace blown or damaged subwoofers with new drivers that equal or outperform the original! GRS poly cone subwoofers are not only the perfect replacement for tired, worn out subwoofers in a variety of audio gear, but they are also a great choice for new designs. Their handsome polypropylene cones provide durability and good looks, while the large vented magnet assemblies and extended voice coils enable long-throw performance and authoritative bass in a variety of enclosures.
The 10" model features a 2" diameter voice coil with big 8.5mm excursion for solid bass performance in compact sealed and vented enclosures. These versatile subs are also rugged enough to be used in dipole and automotive infinite baffle applications.
See the below list of recommended enclosure alignments for new design.
Recommended sealed enclosure: Vb = 1.0 ft^3, F3 = 42 Hz, Qtc: 1.17
Recommended vented enclosure: Vb = 1.5 ft^3, Fb = 35 Hz, F3 = 32 Hz
| FILENAME | ACTION |
|---|---|
| 10sw-4.pdf | Download |
