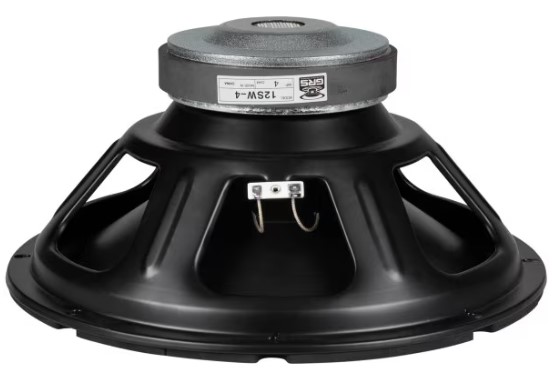

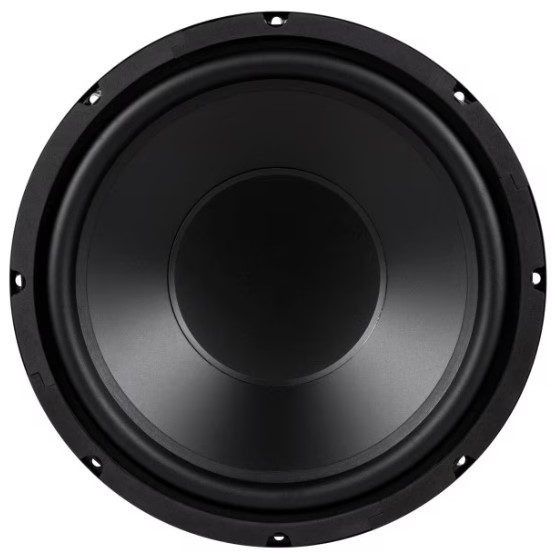

GRS 12SW-4, 311mm (12in) Poly Cone Subwoofer 4 Ohm.
- Large 2" voice coil and bumped back plate enable high power handling
- Butyl rubber surround ensures high excursion and long-term durability
- Polypropylene cone for perfect balance of stiffness, mass, and self-damping
- Long-throw design for deep, powerful bass
Now you can replace blown or damaged subwoofers with new drivers that equal or outperform the original! GRS 12SW-4 poly cone subwoofer is not only the perfect replacement for tired, worn-out subwoofers in a variety of audio gear, but they are also a great choice for new designs. The handsome polypropylene cone provide durability and good looks, while the large vented magnet assembly and extended voice coil enable long-throw performance and authoritative bass in a variety of enclosures.
The 12" model features a 2" diameter voice coil with big 8.5mm excursion for solid bass performance in compact sealed and vented enclosures. These versatile subs are also rugged enough for use in dipole and automotive infinite baffle applications.
See the below list of recommended enclosure alignments for new design.
Recommended sealed enclosure: Vb = 1.5 ft^3, F3 = 37 Hz, Qtc: 1.6
Recommended vented enclosure: Vb = 2.5 ft^3, Fb = 32 Hz, F3 = 30 Hz
| FILENAME | ACTION |
|---|---|
| 12sw-4.pdf | Download |
