1TM-4
- 1TM-4
- GRS

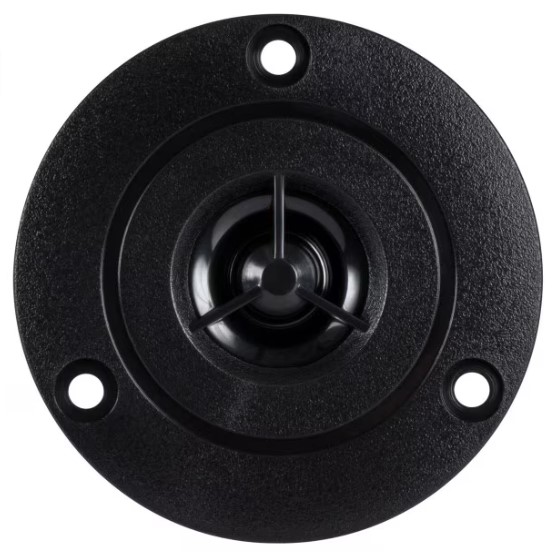

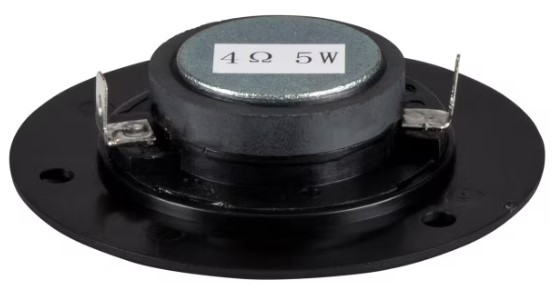

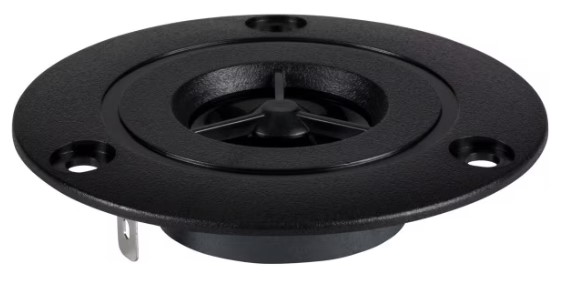

GRS 1TM-4, 25mm 1in Mylar Tweeter, 4 Ohm, Faceplate 74mm
- Rugged 1" Mylar diaphragm
- Lightweight and agile 1/2" voice coil
- Round injection-molded faceplate with phase shield
- Extremely commonly-used tweeter design
Now there’s no need to throw away your older speakers with blown tweeters, the GRS 1TM-4 is the perfect replacement for common Mylar diaphragm tweeters found in many smaller or lower-cost speakers.
The round, 2-15/16" injection-molded frame fits the most common applications for these tweeters in enclosed loudspeakers, and is also easy to use in new low-cost speaker designs or line arrays. A phase shield also guards against curious fingers.
The 1" black Mylar diaphragm is rugged and smooth-sounding, and even resists incidental exposure to weather. The 1/2" voice coil delivers brilliant detail, while a robust ferrite magnet ensures high efficiency. Restore your affordable older speakers at an even more affordable price!
Note: This tweeter is an excellent drop-in replacement for the tweeter of the Dayton Audio B652 speakers! It’s essentially the same tweeter but made with a black non-metallized mylar diaphragm.
| FILENAME | ACTION |
|---|---|
| 1tm-4.pdf | Download |
