PT2522-4
Out of stock

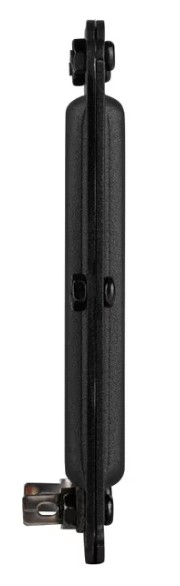

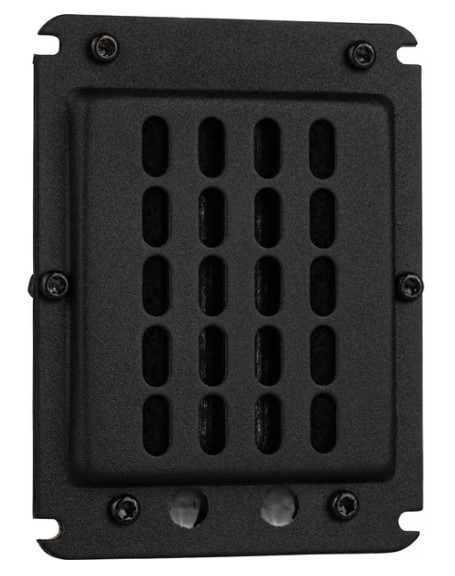

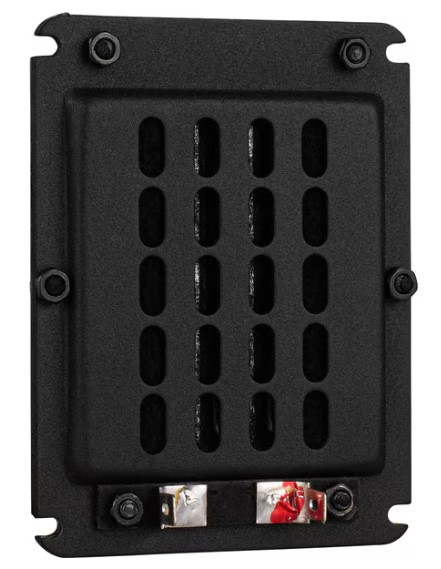

GRS PT2522-4, 66mm (3.5in / 3-1/2in) Planar Tweeter 4 Ohm, 68mm x 90mm Faceplate
CA$55.89Each
- PT2522-4
- GRS
GRS PT2522-4, 66mm (3.5in / 3-1/2in) Planar Tweeter 4 Ohm, 68mm x 90mm Faceplate
With a low mass diaphragm and powerful motor, the GRS PT2522-4 planar back tweeter delivers high efficiency output with excellent transient response. The open back construction produces true dipole radiation which is ideal for use in open baffle designs. Smooth frequency response and low distortion gives the PT2522-4 an incredibly natural but dynamic sound.
Key Features
- Extremely low mass diaphragm provides excellent transient response and accuracy
- Large diaphragm produces high efficiency and wide bandwidth
- Remarkably flat response even at 30 degrees off axis
- Open back delivers true dipole radiation for use in open baffle designs
- Linear impedance simplifies crossover design
- Shallow mounting depth for use in low profile designs
- Custom mounting faceplate available
Key Specs:
- Tweeter Type: Planar Magnetic
- Power Handling (RMS): 20 Watts
- Power Handling (MAX): 40 Watts
- Impedance: 4Ω
- Frequency Response: 800 - 20,000 Hz
- Sensitivity: 93dB 2.83V/1m
- Diaphragm Material: Polyethylene Naphthalate
| FILENAME | ACTION |
|---|---|
| pt2522-4.pdf | Download |
