R2004/602200
2 left in stock

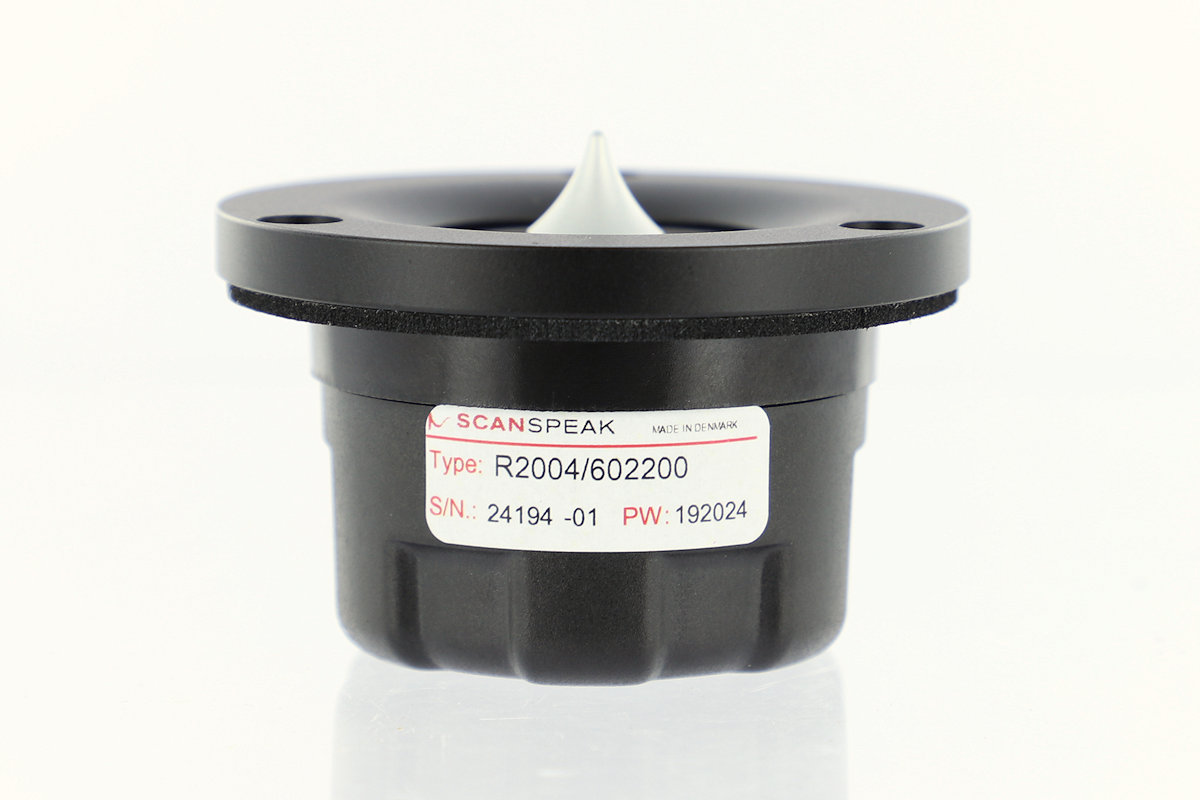

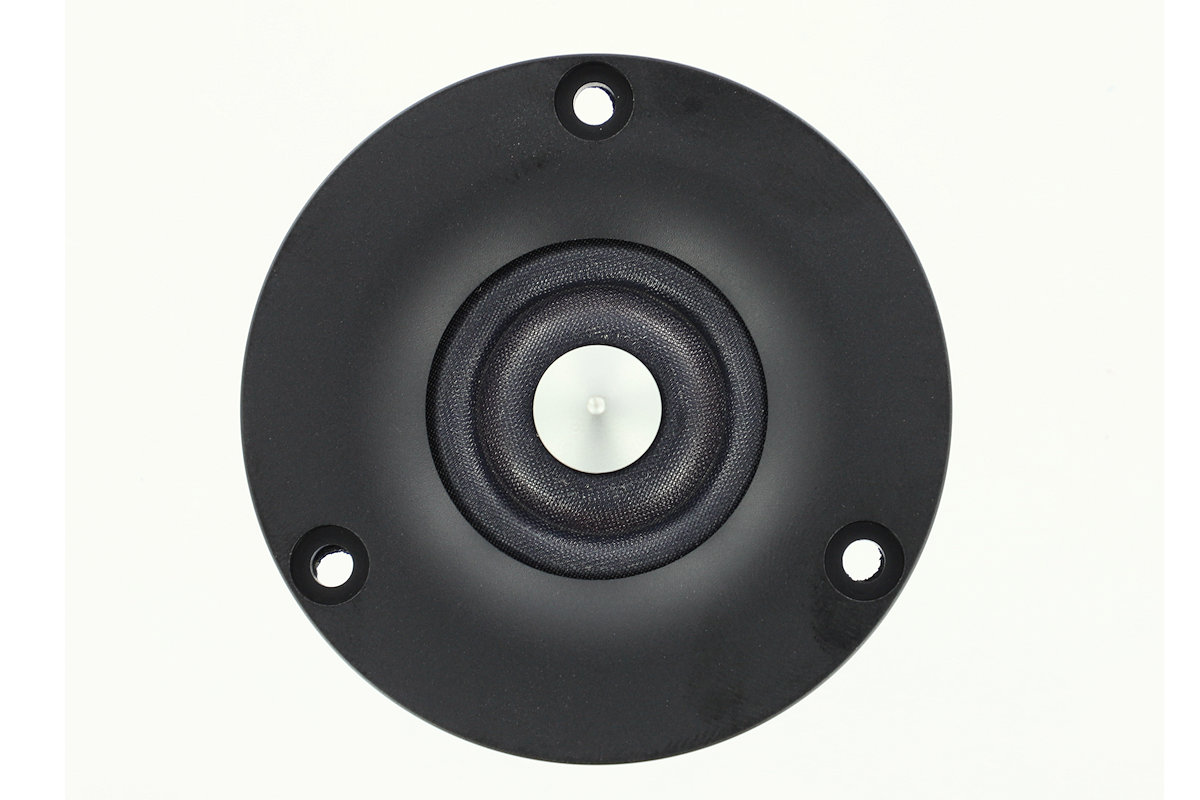

Scan-Speak Illuminator R2004/602200, 19mm (0.75in / 3/4in) Textile Ring Dome Neodymium Tweeter, 4ohm, 55mm Faceplate
CA$244.44Each
- R2004/602200
- SCAN-SPEAK
Scan-Speak Illuminator R2004/602200, 19mm (0.75in / 3/4in) Textile Ring Dome Neodymium Tweeter, 4ohm, 55mm Faceplate
The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Tweeter Type | Textile Ring Dome Neodymium Tweeter |
| Cone / Dome Diameter | 19mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 50 W |
| Resonance frequency | 625 Hz |
| Sensitivity | 87.5 dB |
- 3/4" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- Black Anodized Machined Alu Face Plate
- Gold plated terminals
| FILENAME | ACTION |
|---|---|
| r2004602200.pdf | Download |
