D2908/716000
- D2908/716000
- SCAN-SPEAK

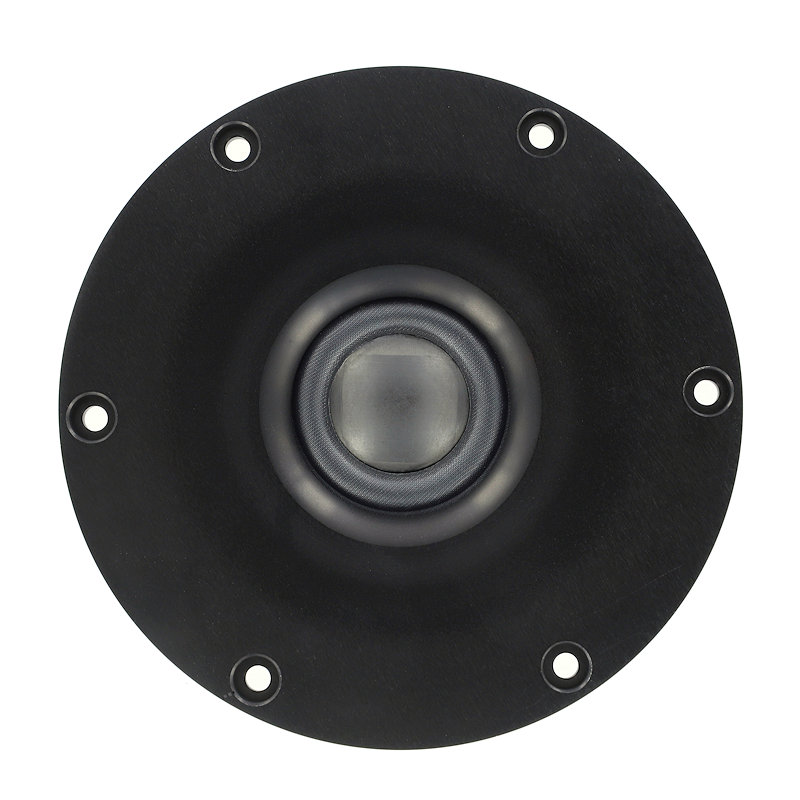

Scan-Speak Revelator D2908/716000, 26mm (1in) TPCD Dome Tweeter, 8ohm, 120mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Tweeter Type | TPCD Ring Dome Neodymium Tweeter |
| Cone / Dome Diameter | 26mm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 160 W |
| Resonance Frequency | 534 Hz |
| Sensitivity | 92 dB |
The Revelator Tweeters large roll surround and TPCD dome diaphragm technology represents a breakthrough in overall performance, with outstanding off-axis response and low distortion, high output capability and low resonance frequency. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimise airflow in the chambers.
- Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
- Rear Mount Magnet System
- Patented Symmetrical Drive (SD-2) motor
- Titanium Voice Coil Former
- Black Anodized 120mm Machined Alu Faceplate
- Non Resonant Aluminium Rear Chamber
| FILENAME | ACTION |
|---|---|
| d2908716000.pdf | Download |
