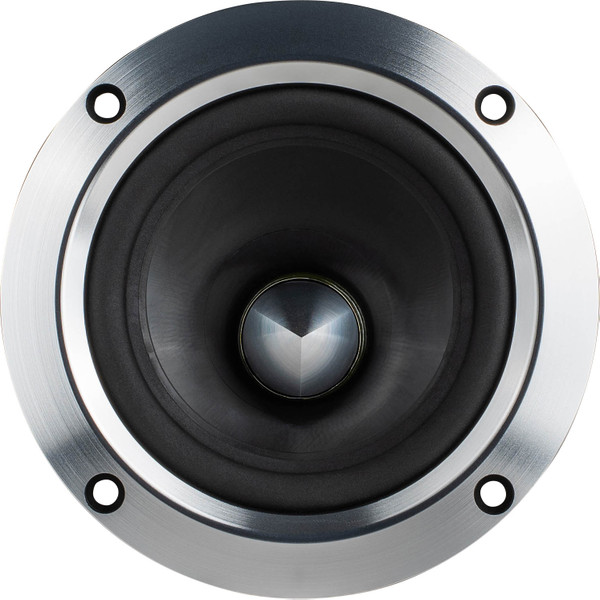

Tang Band W4-2356, 126mm (4.5in / 4-1/2in) Off-Axis Poly Cone Full-Range
The Tang Band W4-2356 4" Off-Axis Poly Cone Full-Range driver is a very unique, one-of-a-kind speaker that utilizes an off-center voice coil and asymmetric cone profile to help reduce diffraction effects that are common with smaller speakers and narrow baffles.
The The Tang Band W4-2356 utilizes an injection molded polypropylene cone, solid aluminum phase plug which helps with heat dissipation and diffusion. Rounding out the design is a patented two-piece offset plastic composite frame and large, underhung neo ring motor for increased sensitivity and decreased distortion.
Product Specifications | |
---|---|
Nominal Diameter | 4" |
Bolt Circle Diameter | 4.52 |
Power Handling (RMS) | 25 Watts |
Power Handling (MAX) | 50 Watts |
Impedance | 8Ω |
Frequency Response | 70 to 20,000Hz |
Sensitivity | 85dB 2.83V/1m |
Voice Coil Diameter | 25.4" |
