W137A-854
2 left in stock

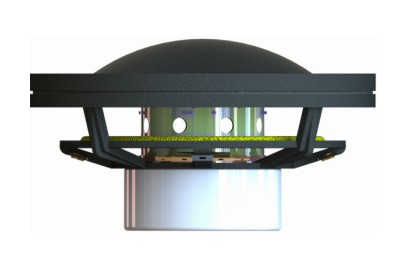

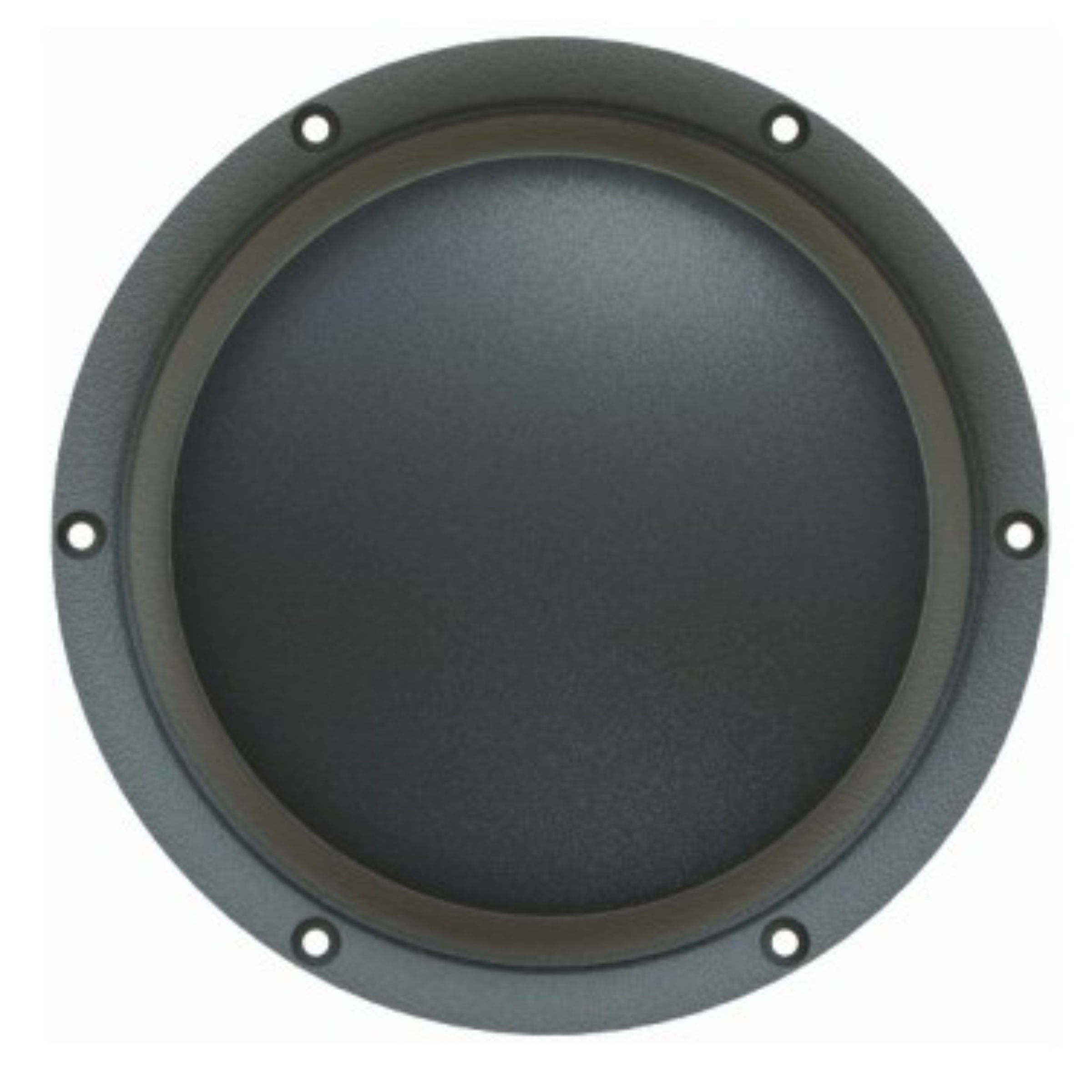

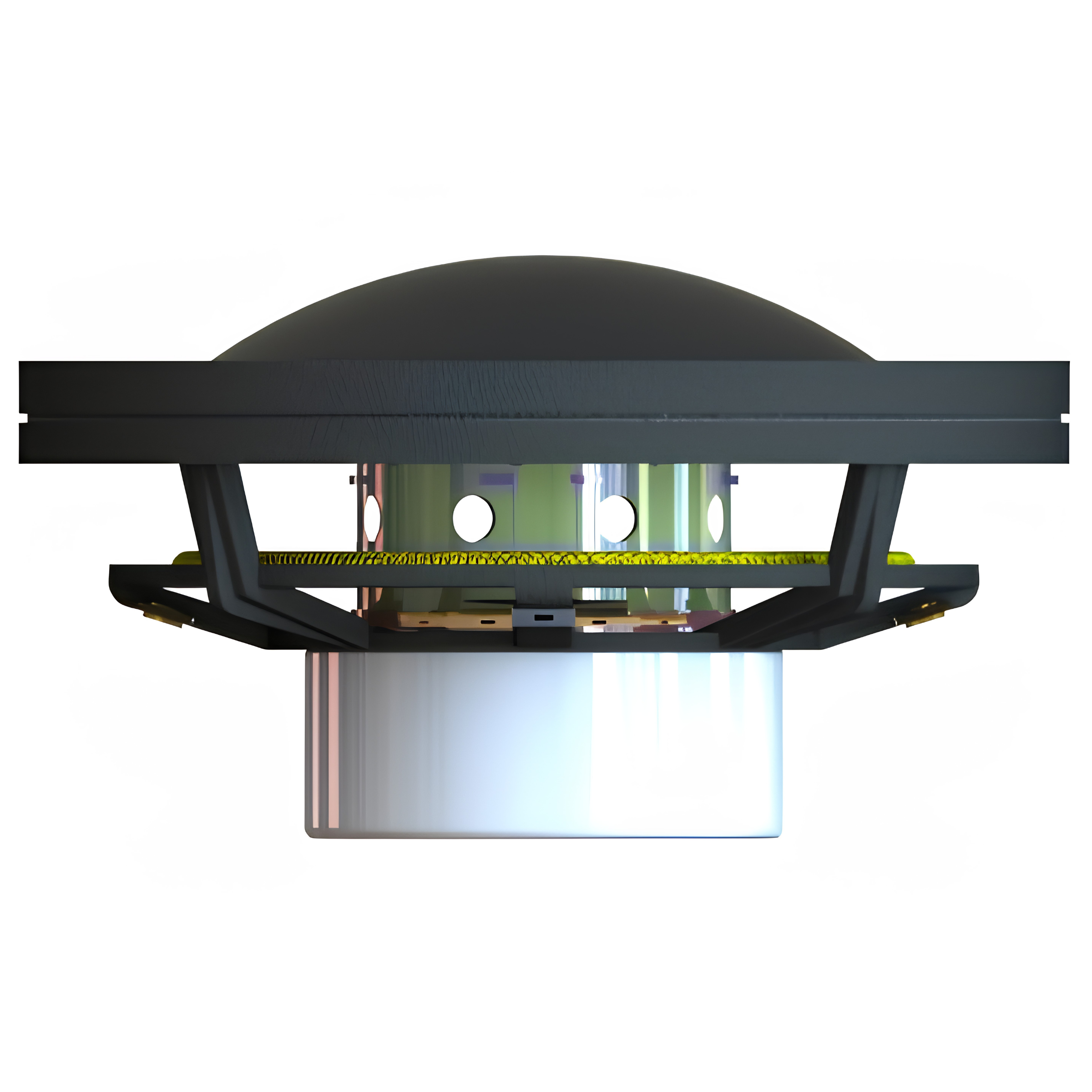

BLIESMA W137A-854, 137mm (5in) Aluminium Magnesium Dome Midbass, multiple impedances, 180mm Faceplate.
CA$715.45Each
- W137A-854
- BLIESMA
BLIESMA W137A-854, 137mm (5in) Aluminium Magnesium Dome Midbass, multiple impedances, 180mm Faceplate.
| Product Specifications | |
|---|---|
| Manufacturer | BLIESMA |
| Midrange Type | Aluminium Magnesium Dome Midbass |
| Cone / Dome Diameter | 137mm |
| Impedance | 4, 5 and 8 ohms |
| Power Handling (RMS) | 75W |
| Frequency Response | Fs - 2200 Hz |
| Sensitivity | 88, 87.5 and 85 dB |
Features :
• 137 mm aluminium-magnesium alloy dome
• Neodymium motor with copper sleeve and demodulation ring for low non linear and modulation distortion
• Multiwire voice coil configuration for different impedances
• Variable pitch overhung voice coil for improved linearity
• Titanium former for low mechanical losses
• 64 mm voice coil for low thermal compression
• Low loss rubber surround and BiMax spider from Dr. Kurt Müller GmbH & Co.
• Surround hidden in basket rim allows significant reduction of mounting diameter
• Thick aluminium powder coated basket
• Gold plated wire terminals
• Recommended frequency range Fs - 2,2 kHz
| FILENAME | ACTION |
|---|---|
| W137A854.PDF | Download |
