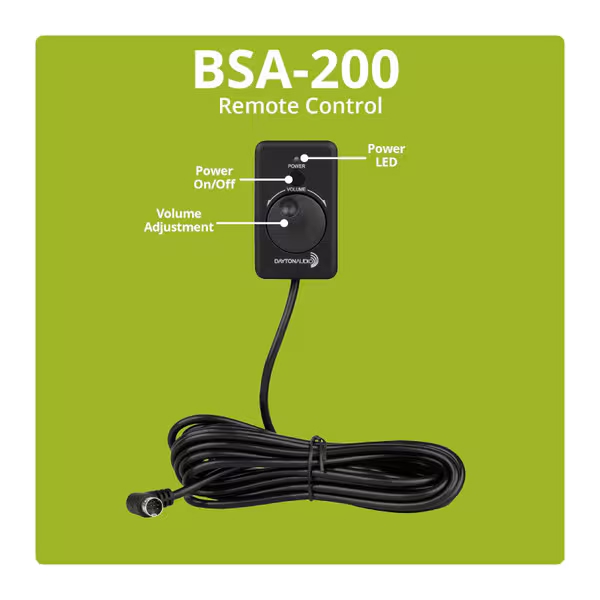

Dayton Audio BSA-200 200W Bass Shaker Bridgeable Stereo Amplifier with Remote

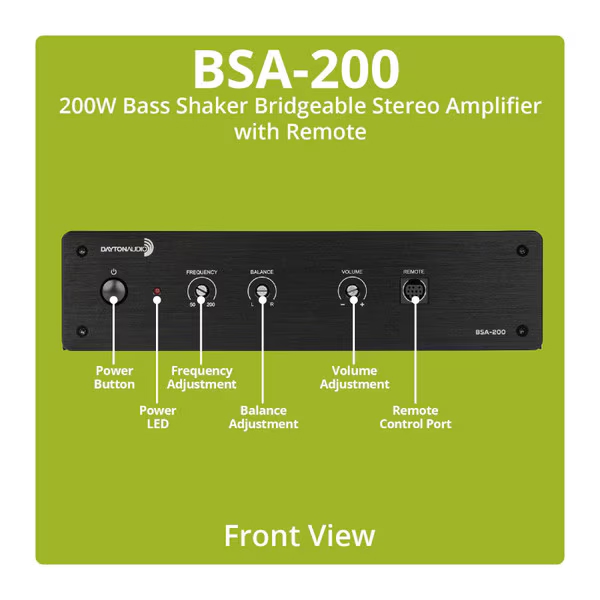

The Dayton Audio BSA-200 high power bass shaker amplifier is designed and built specifically to power tactile transducers but works equally as well as a dedicated subwoofer amplifier. Its small form factor makes it perfect for tight spaces, while the included brackets allow for vertical or horizontal mounting. The frequency and balance knobs let you dial in the desired crossover point and output, giving you total control over your set-up.
The Dayton Audio BSA-200 is rated at 110 watts RMS per channel into 2 ohms. In bridged mono mode, both amplifier channels are combined for high-power monaural output. The amplifier is rated at 230 watts RMS into a single 4 ohm load when bridged.

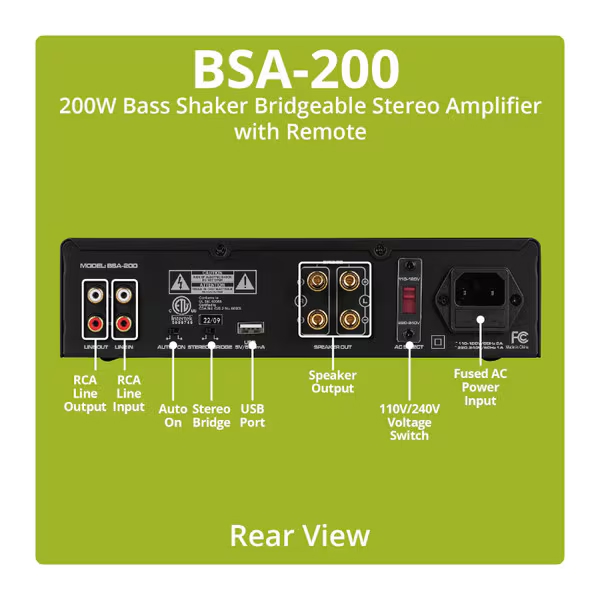

Manual and automatic on/off modes allow easy integration into automated systems and saves power when not in use. 5V USB power output is designed for use with the Dayton Audio Wave-Link wireless system (not included). The Wave-Link system can link up to 5 receivers per transmitter giving you ultimate flexibility with remote mounting options.
Specifications: • Output power: 110 watts RMS per channel @ 2 ohms, 230 watts RMS @ 4 ohms ( minimum impedance) bridged mono • Input sensitivity: 170 mV • Frequency Response: 5-200 Hz +/- 3 dB • Variable low pass: 50-200 Hz • Total harmonic distortion ( stereo ): 1%, (mono): 0.05% • Signal to noise ratio: 91 dB @ 100 Hz A-weight • Power requirements: 110-240 VAC • Max power consumption: 313W • Stand-by power rating: 0.5W • Auto turn-on sensitivity: 10 mV • Dimensions: 2.5"H x 9.5"W x 8.5"D
