The highest quality speaker driver units that you can find.

CE30MB-16B

4 left in stock

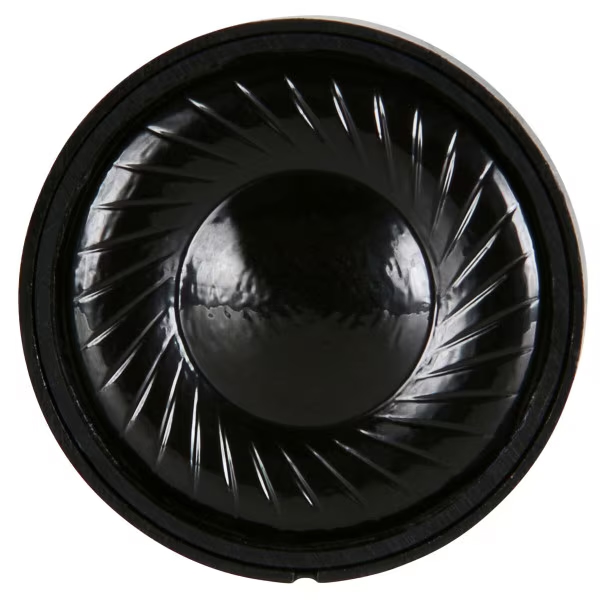

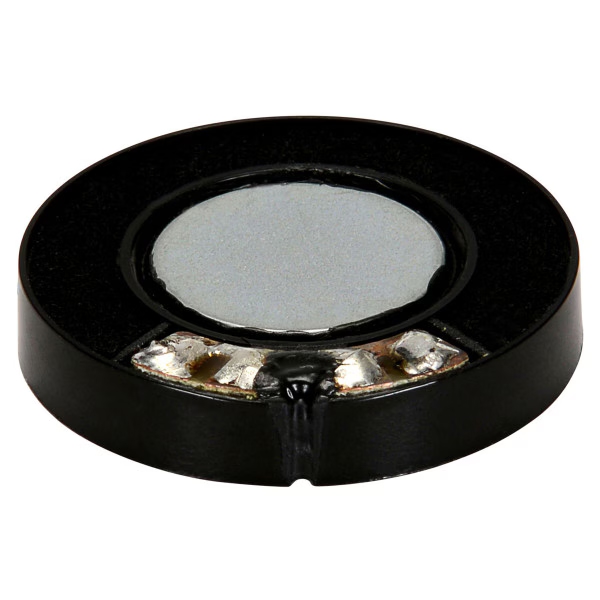

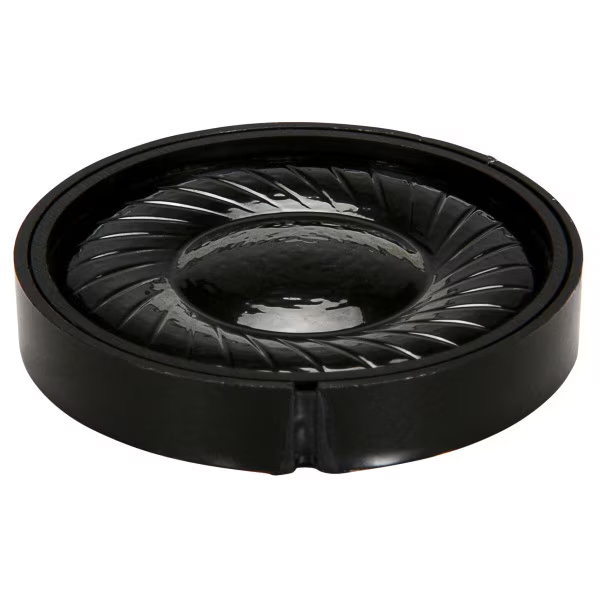

Dayton Audio CE Series CE30MB-16B 1-1/4" Mini Speaker Black 16 Ohm
CA$3.74each
Product Specifications
Manufacturer DAYTON AUDIO
Speaker Type Mylar Cone Fullrange
Nominal Diameter 3.0cm
Impedance 16 ohms
Power Handling (RMS) 0.5W
Frequency Response 400 - 20000 Hz
Sensitivity 77 dB
Voice Coil Diameter 13mm

Dayton Audio CE Series CE30MB-16B 1-1/4" Mini Speaker Black 16 Ohm The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. The Dayton Audio CE30MB-16A is a compact, high-efficiency "headphone-style" mini speaker with a lightweight Mylar diaphragm and extended frequency range. It’s a rugged choice for adding audio to inexpensive headphones, electronic toys, and portable electronics. Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

FILENAME ACTION
ce30mb16b.pdf Download
