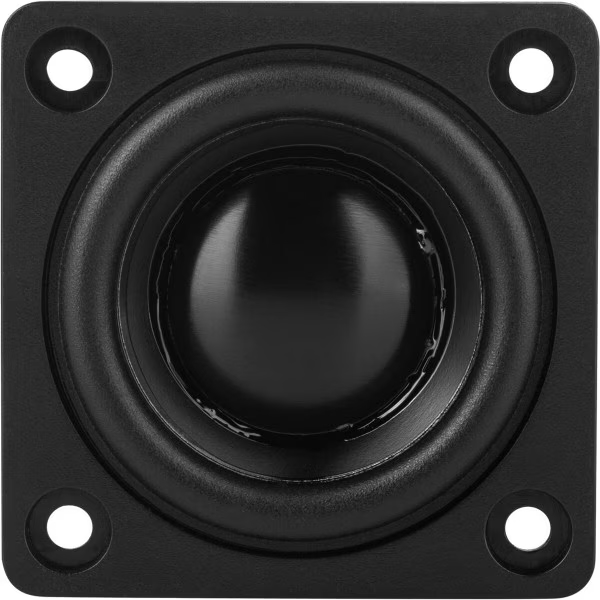

Dayton Audio DMA45-4, 46mm (1.5in / 1-1/2in) Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm.
CA$16.34Each
Choose another model
  • Choose another model
  • PLS50F25AL0304 CA$10.00 Each CA$17.51
  • 10F/4424G00 CA$162.96Each
  • 10F/8414G10 CA$111.36Each
  • 10F/8424G00 CA$162.96Each
  • 5F/8422T01 CA$97.78Each
  • B200 CA$345.03Each
  • B4N CA$39.81Each
  • B80 CA$137.13Each
  • F120A CA$335.00 Each CA$482.14
  • F804 CA$1,164.24Each
  • F808 CA$924.00 Each CA$1,164.49
  • FA22RCZ08 CA$355.60Each
  • FE168ES CA$351.06Each
  • FF105WK CA$103.60Each
  • FF125WK CA$118.66Each
  • FF165WK CA$176.05Each
  • FF225WK CA$243.60Each
  • FR124B8-19F CA$44.00 Each CA$68.61
  • FR151B8-22F CA$91.92Each
  • FR222B8-19F CA$127.00 Each CA$248.06
  • LB12EX CA$1,904.18Each
  • LB12MKII CA$827.90Each
  • LB5 CA$372.56Each
  • LB5EX CA$993.48Each
  • LB6 CA$393.25Each
  • LB6EX CA$1,014.18Each
  • LB7 CA$579.53Each
  • LB7EX CA$1,345.34Each
  • LB8EXMKII CA$1,407.44Each
  • LB8MKII CA$620.93Each
  • B1S CA$17.41Each
  • B3N CA$26.38Each
  • B3S CA$21.68Each
  • DS90-8 CA$26.93Each
  • FF85WK CA$92.75Each
  • FR070WA01 CA$91.70Each
  • FR070WA02 CA$91.70Each
  • FR070WA03 CA$34.00 Each CA$54.88
  • FR070WA04 CA$34.00 Each CA$54.88
  • FR084WA01 CA$78.40Each
  • FR084WA02 CA$78.40Each
  • FR090WA01 CA$75.26Each
  • FR090WA02 CA$75.26Each
  • FU10RB04 CA$147.56Each
  • FU10RB08 CA$145.60Each
  • ND65-4 CA$43.47Each
  • ND65-8 CA$43.47Each
  • NE65W04 CA$42.33Each
  • NE95W04 CA$47.90Each
  • PLS50F25AL0104 CA$21.15Each
  • PLS65F25AL0208 CA$12.00 Each CA$21.47
  • PLS65F25AL0404 CA$26.72Each
  • PLS75F25AL0208 CA$24.50Each
  • NSW1-205-8A CA$40.55Each
  • NSW2-326-8A CA$67.82Each
  • PM180-8 CA$181.51Each
  • PM220-8 CA$244.36Each
  • PS180-8 CA$155.60Each
  • PS220-8 CA$203.39Each
  • PS95-8 CA$44.98Each
  • RS100-4 CA$45.67Each
  • RS100P-4 CA$52.64Each
  • RS100P-8 CA$51.50Each
  • RS75-4 CA$39.84Each
  • RS75T-8 CA$52.64Each
  • SB65WBAC25-4 CA$48.15Each
  • TC6FC0004 CA$21.15Each
  • TC6FD0004 CA$15.58Each
  • W2-1803S CA$31.99Each
  • W1-1815S CA$50.34Each
  • W1-1828S CA$38.41Each
  • W1-1931S CA$43.01Each
  • W1-1942S CA$35.01Each
  • W1-2025SA CA$27.55Each
  • W2-803SM CA$41.80Each
  • W2-852SH CA$53.01Each
  • W3-1053SC CA$46.77Each
  • W3-1797S CA$109.72Each
  • W3-1878 CA$235.88Each
  • W3-881SJ CA$78.71Each
  • W3-881SJF CA$81.66Each
  • W4-1052SD CA$74.08Each
  • W4-1320SJ CA$117.53Each
  • W4-1337SDF CA$160.88Each
  • W4-1879 CA$408.70Each
  • W5-1611SAF CA$166.38Each
  • W8-1772 CA$613.19Each
  • W8-1808 CA$426.58Each
  • W1-2121S CA$38.78Each
  • W2-2136S CA$81.56Each
  • W3-2141 CA$99.83Each
  • W5-2143 CA$171.61Each
  • W8-2145 CA$378.13Each
  • FR040WA01 CA$50.96Each
  • FR040WA02 CA$50.96Each
  • EIKONA2 CA$585.17Each
  • TC5FC0704 CA$20.05Each
  • DSA90-8 CA$36.38Each
  • FEA18RCZ08 CA$252.84Each
  • FR055WA01 CA$64.09Each
  • FR055WA02 CA$41.00 Each CA$64.09
  • ND64-4 CA$25.25Each
  • ND64-16 CA$25.25Each
  • PS65LP-4 CA$144.69Each
  • PC68-4 CA$18.58Each
  • PC68-8 CA$18.58Each
  • PC83-4 CA$23.67Each
  • PC83-8 CA$23.67Each
  • PC105-4 CA$28.02Each
  • PC105-8 CA$28.02Each
  • B100 CA$155.44Each
  • 13LB25AL CA$171.27Each
  • 17LB25ALBC CA$251.41Each
  • DMA45-8 CA$16.34Each
  • DMA58-4 CA$25.02Each
  • DMA58-8 CA$25.74Each
  • DMA70-4 CA$28.21Each
  • DMA70-8 CA$22.32Each
  • DMA80-4 CA$20.79Each
  • DMA80-8 CA$21.32Each
  • DMA90-8 CA$30.88Each
  • DMA105-4 CA$22.69Each
  • DMA105-8 CA$22.69Each
  • SB10PGC21-4 CA$19.36Each
  • RS75-8 CA$42.30Each
  • SB20FRPC30-8 CA$65.46Each
  • FE126NV2 CA$112.35Each
  • FE166NV2 CA$163.46Each
  • FE206NV2 CA$224.35Each
  • FR070WA05 CA$101.50Each
  • WIB50_vHP-8 CA$53.19Each
  • WIB120_VHE-8 CA$237.70Each
  • M4N CA$28.18Each
  • FR4X6WA01 CA$50.00 Each CA$77.95
  • FR4X6WA02 CA$50.00 Each CA$77.95
  • FR055WA03 CA$86.10Each
  • FR055WA04 CA$86.10Each
  • FR055WA05 CA$47.00 Each CA$76.30
  • FR084WA03 CA$45.00 Each CA$78.40
  • FE83NV2 CA$74.21Each
  • FE103NV2 CA$93.81Each
  • FE108NS CA$211.41Each
  • FE168NS CA$334.94Each
  • FE208NS CA$395.49Each
  • 4FR40 CA$63.00Each
  • 3FR30V2 CA$58.80Each
  • W4-2356 CA$206.58Each
  • FR89-EX CA$89.00 Each CA$183.18
  • NRT25-8 CA$21.44Each
  • NRT50-8 CA$31.73Each
  • 3FR-4 CA$7.86Each
  • 10S-8 CA$11.32Each
  • 4FR-8 CA$19.33Each
  • RSB901-1 CA$50.94Each
  • 8FR-8 CA$20.37Each
  • LB12MKIIEVO CA$1,222.14Each
  • LB15 CA$1,379.84Each
  • W23-1287SI CA$48.95Each
  • W1-1070SH CA$33.32Each
  • W2-2243S CA$43.98Each
  • NE85W04 CA$46.78Each
  • 55FR2604 CA$23.40Each
  • 55FR2604B CA$23.40Each
  • 69FR2604 CA$28.97Each
  • 69FR2608B CA$28.97Each
  • 78FR2608 CA$30.07Each
  • 78FR2608B CA$30.07Each
  • TC7FD0004 CA$15.58Each
  • TC9FD1808 CA$20.05Each
  • M3N CA$32.46Each
  • M3N-B CA$30.37Each
  • M4N-B CA$34.18Each
  • SC13 CA$52.86Each
  • FR131.30 CA$43.55Each
  • BG13P CA$27.93Each
  • BG17 CA$38.37Each
  • BG20 CA$65.12Each

Dayton Audio DMA45-4, 46mm (1.5in / 1-1/2in) Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm.

Product Specifications
Manufacturer DAYTON AUDIO
Speaker Type Aluminum Cone Fullrange
Nominal Diameter 4.6cm
Impedance 4 ohms
Power Handling (RMS) 10 W
Frequency Response 150 - 20000 Hz
Sensitivity 82 dB
Voice Coil Diameter 19mm

Dayton Audio DMA45-4 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm Providing high efficiency with low distortion, Dayton Audio's DMA45-4 1.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA45-4 is the perfect full-range for the job. Designed for the highest performance while delivering maximum value, the no compromise design of the DMA45-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 0.75" voice coil is wound on an vented polyimide former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion. Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit. Highlights

  • Excellent high frequency response for true full-range applications
  • Dual neodymium motor to create a symmetrical magnetic field for superb control
  • Large copper cap lowers distortion while improving high frequency response
  • Remarkably flat full-range response with excellent off axis performance
  • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
  • DIY friendly, oversized mounting flange makes installation simple
  • Matching tunable passive radiators also available!



FILENAME ACTION
dma454.pdf Download
