DSP-408

Name: DSP-408
Brand: DAYTON AUDIO
SKU: DSP-408
Price: 283.17 CAD
Availability: InStock

(0)

2 left in stock

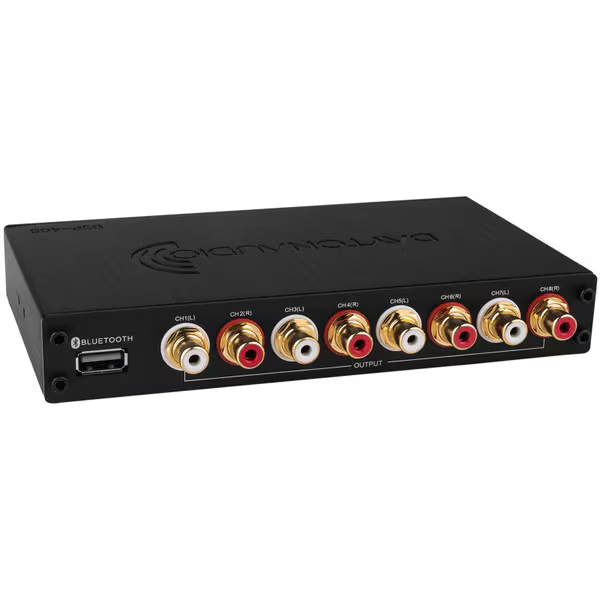

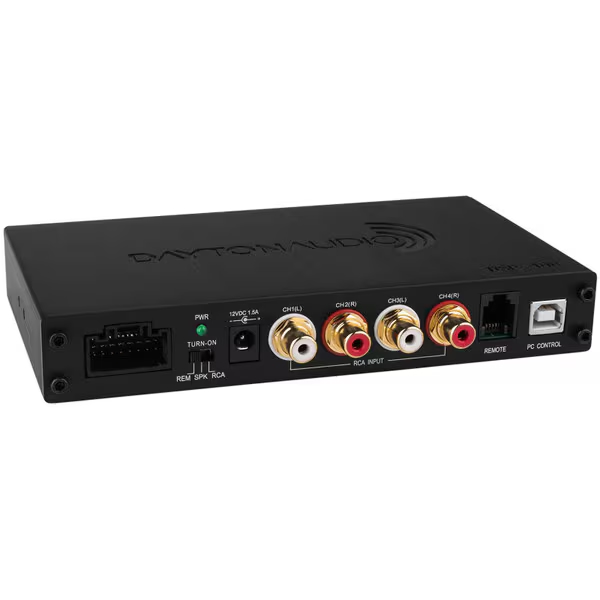

Dayton Audio DSP-408 4x8 DSP Digital Signal Processor for Home and Car Audio

CA$283.17^Each

DSP

Choose another model

Choose another model
HYPEX REMOTE CA$18.20^Each
PWR-ICE125 CA$693.00^Each
PWR-ICE250 CA$924.00^Each
MINIDSP2X4HD CA$369.60^Each
IRREMOTE V2 CA$10.01^Each
SPA250DSP CA$367.50^Each
SPA500DSP CA$583.16^Each
DSP-BT4.0 CA$75.44^Each
DDRC-24 CA$693.00^Each
WI-DG CA$120.12^Each
FA122 CA$573.56^Each
FA123 CA$681.10^Each
FA253 CA$878.28^Each
FA501 CA$681.10^Each
FUSION REMOTE KIT CA$43.61^Each
SHD CA$1,792.70^Each
SHDSTUDIO CA$1,480.50^Each
PPA800DSP CA$637.84^Each
BAX-1 CA$4,395.00^Each
CDSP8X12 V2 CA$820.82^Each
CDSP8X12DL CA$1,401.40^Each
CI8-120DSP CA$4,549.00^Each
CI8-150DSP CA$5,999.00^Each
SHDPOWER CA$2,093.00^Each
FA503 CA$1,075.44^Each
FA251 CA$483.12^Each
FA252 CA$769.90^Each
FA502 CA$969.53^Each
CI16-60DSP CA$3,899.00^Each
DSP-NRC CA$50.49^Each
HARMONY DSP 8X12 CA$1,547.00^Each
FLEX CA$727.65^Each
FLEXBAL CA$822.15^Each
FLEXDIGI CA$727.65^Each
FLEX EIGHT CA$774.90^Each
FLEX HT CA$850.50^Each
FLEX HTX CA$1,398.60^Each

Quantity

SKU: DSP-408
Brand: DAYTON AUDIO

Description
Reviews (0)

Product Specifications

Manufacturer

DAYTON AUDIO

Summary

Take control of your audio system with the Dayton Audio DSP-408, a feature-rich 4 input/8 output digital signal processor. The DSP-408 features built-in EQ, crossovers, time alignment, and input/output mixing. The most alluring feature of the DSP-408 is the ability to be used in a home or car right out of the box, which makes it the perfect addition to your home or car audio system. Highlights

Real-time signal processing for ultimate control
Complete audio customization for application specific installations
Easy-to-use Graphical User Interface (GUI)
All eight output channels have a fully adjustable 10-band parametric EQ

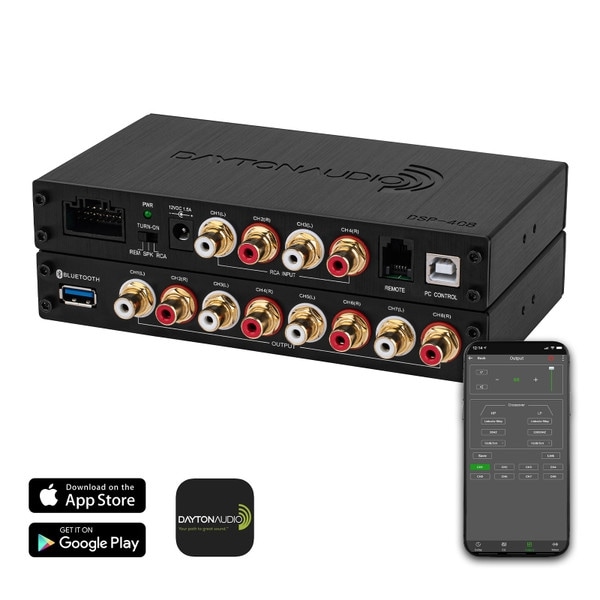

Optional Bluetooth dongle (for streaming and app control) and wired remote available Package Contents

1 x DSP-408 Processor
1 x Power Adapter (12V, 1.5A)
1 x High-Level/Power Input Harness (16-pin)
1 x USB A to B Cable (10')
2 x Mounting Brackets
4 x Mounting Bracket Machine Screws
4 x Mounting Screws
4 x Rubber Cushion Pads
1 x Introduction Card

Specifications: • Chipset: Analog Devices ADAU1701 SigmaDSP 28-/56 Bit Audio Processor • RCA inputs: 4 • RCA outputs: 8 • High-level inputs: 4 • High-level input impedance: 180 ohms • RCA input impedance: ≥20,000 ohms • Frequency response: 20 - 20,000 Hz • THD+N: 0.008% • Output impedance: <50 ohms • Maximum input level: ≥3.2V 1% THD • RCA output: 3.5V rms • Signal to noise ratio: ≥115dB • Remote out current: >500mA • Power adapter input voltage: 100 - 240VAC • Power adapter output: 12VDC, 1.5A • Operating voltage: 9-17V • Dimensions: 6.53" W x 1.02" H x 4.55" L.

DSP-408

Add a review

Be the first one to review this product.
