ND25FA-4
- ND25FA-4
- DAYTON AUDIO

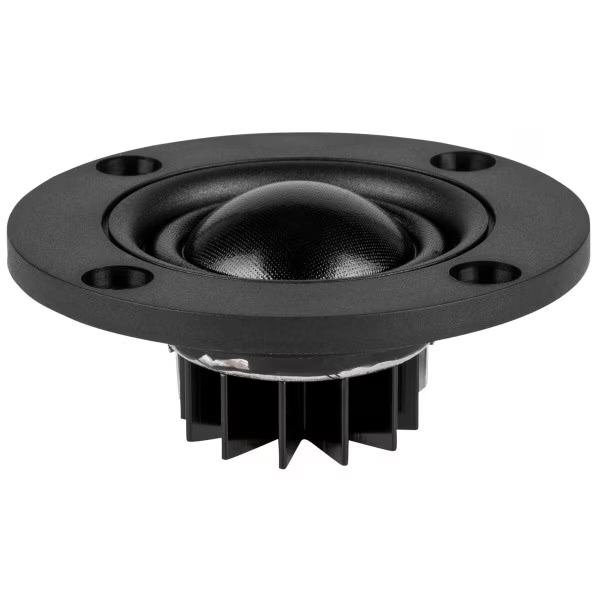

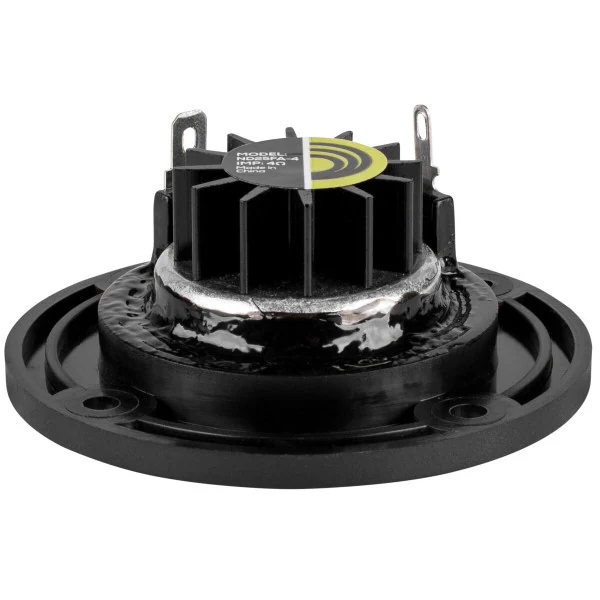

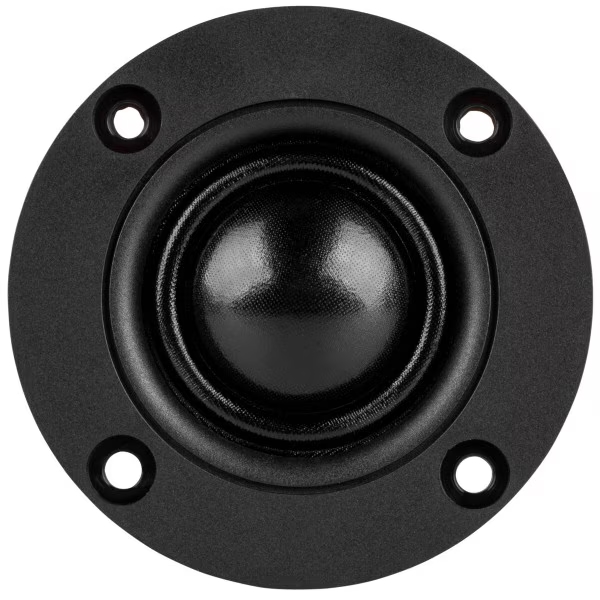

Dayton Audio ND25FA-4, 25mm (1in) Soft Dome Neodymium Tweeter, 4 ohm, 66mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |
| Tweeter Type | Silk Dome Neodymium Tweeter |
| Cone / Dome Diameter | 25mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 20 W |
| Frequency Response | 2500 - 20000 Hz |
| Sensitivity | 90 dB |
Dayton Audio ND25FA-4 1" Soft Dome Neodymium Tweeter This tweeter is smooth! The Dayton Audio ND25FA-4 1" soft-dome tweeter combines an exceptionally flat response above 3 kHz with a compact round faceplate for a clean, modern appearance that integrates easily into any design. The tiny yet powerful neodymium motor structure features an aluminum heatsink and ferrofluid cooling for low power compression and improved long-term power handling. A copper pole cap within the motor further reduces distortion and inductance effects. Choose the ND25FA-4 when you need detail that won't become fatiguing or shrill at high volumes, for a highly refined presentation. The compact faceplate allows close center-to-center spacing of drivers, making these tweeters perfect for line array use or D'Appolito (MTM) configurations with wide dispersion.
| FILENAME | ACTION |
|---|---|
| nd25fa4-1.pdf | Download |
