ND91-4
- ND91-4
- DAYTON AUDIO

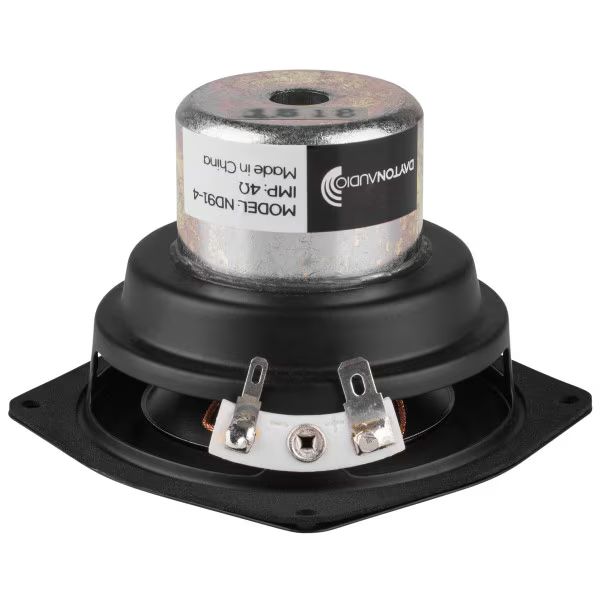

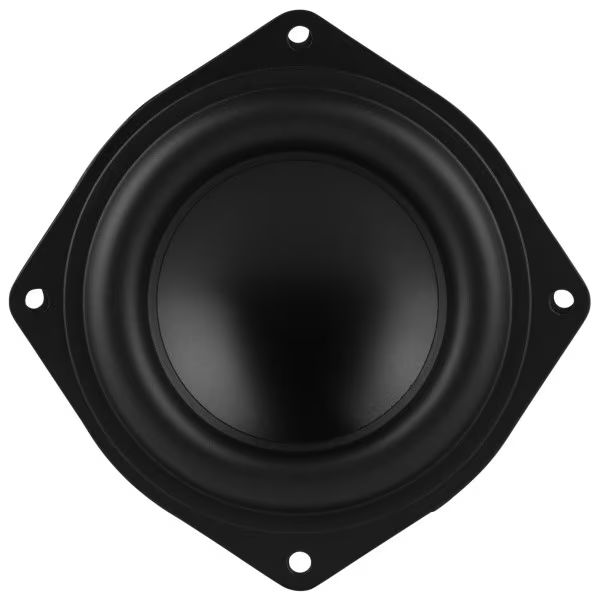

Dayton Audio ND91-4, 90mm (3.5in / 3-1/2in) Aluminum Cone Full-Range Neo Driver 4 Ohm
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |
| Speaker Type | Aluminum Cone Midbass |
| Nominal Diameter | 8.9cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 30 W |
| Frequency Response | 65 - 17000 Hz |
| Sensitivity | 85.6 dB |
| Voice Coil Diameter | 25mm |

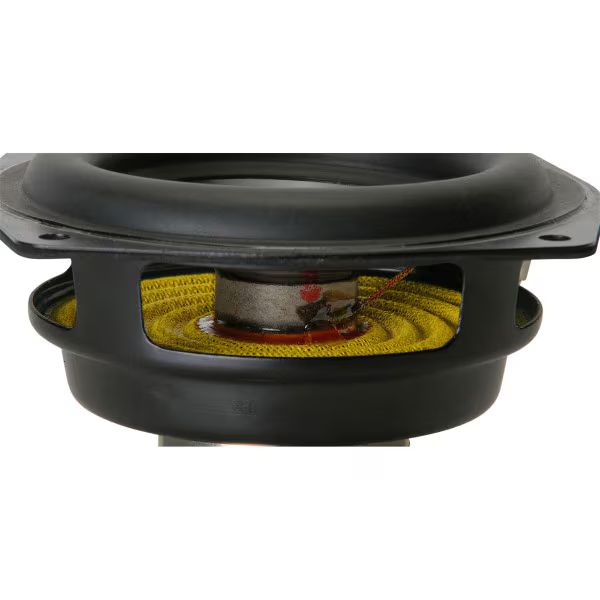

Dayton Audio ND91-4 3-1/2" Aluminum Cone Full-Range Neo Driver 4 Ohm Dayton Audio's ND91 aluminum cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90's voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-4 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm! This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motor's optimized magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.
| FILENAME | ACTION |
|---|---|
| ND914-1.pdf | Download |
