RS75T-8
- RS75T-8
- DAYTON AUDIO

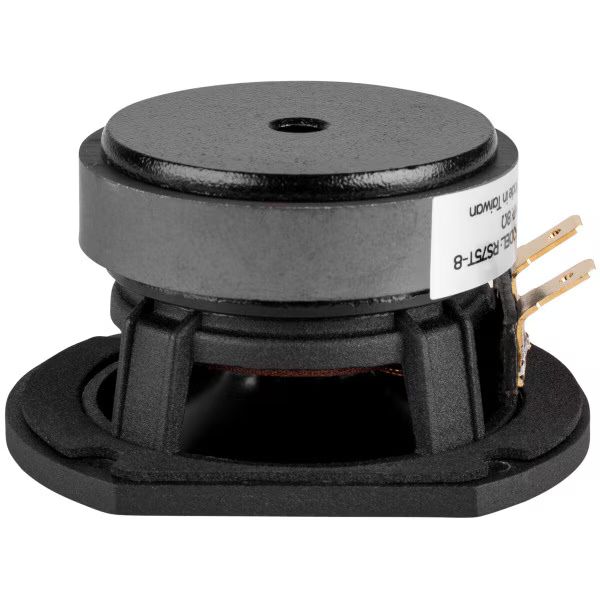

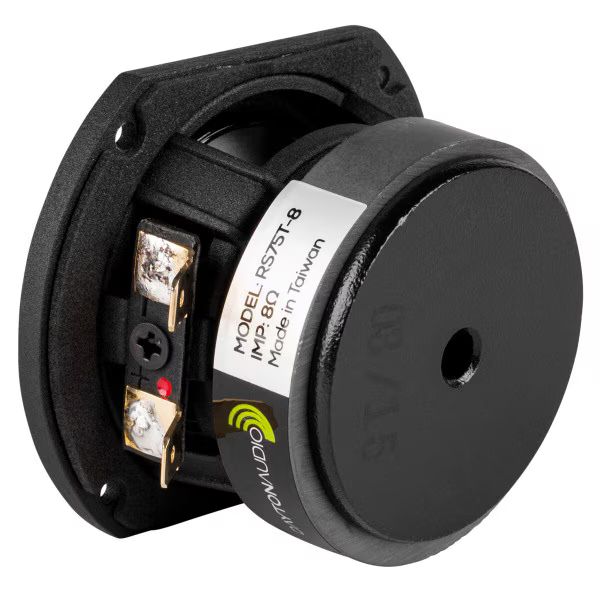

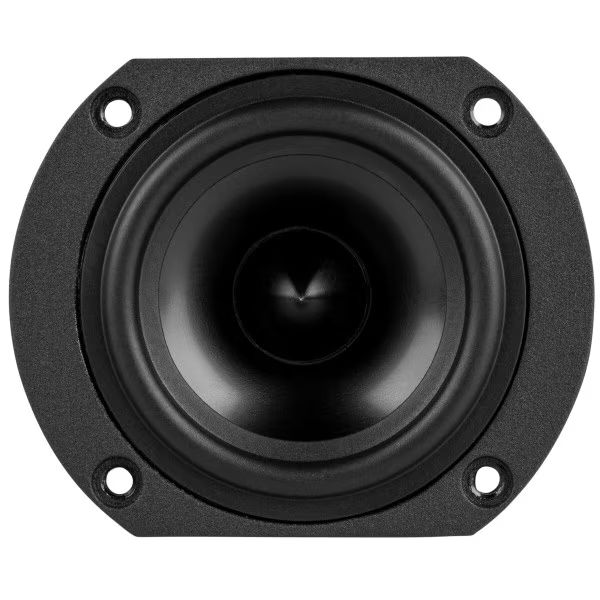

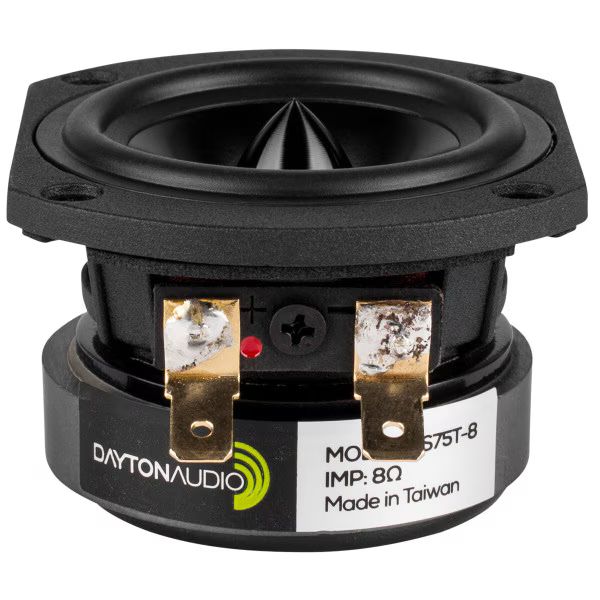

Dayton Audio RS75T-8, 72mm (3in) Reference Full-Range Driver Truncated Frame, 8 ohm
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |
| Speaker Type | Aluminum Cone Fullrange |
| Nominal Diameter | 7.2cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 15 W |
| Frequency Response | 170 - 20000 Hz |
| Sensitivity | 84.3 dB |
| Voice Coil Diameter | 16mm |
Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price. The driver's truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
| FILENAME | ACTION |
|---|---|
| rs75t8.pdf | Download |
