RSS315HF-4
- RSS315HF-4
- DAYTON AUDIO

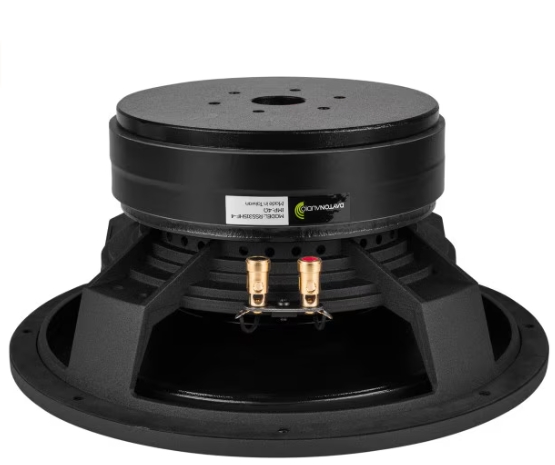

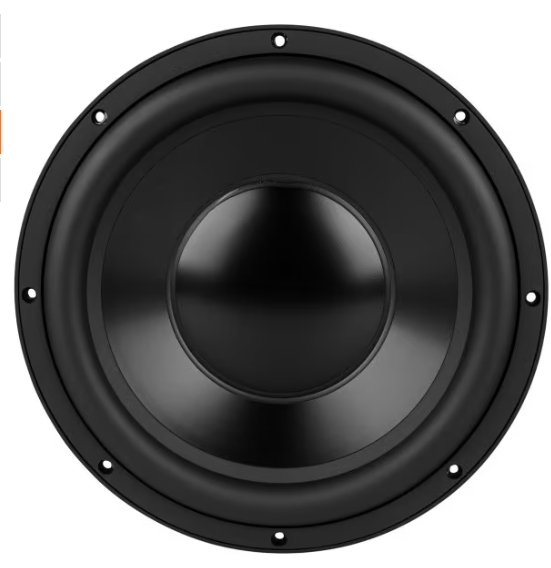

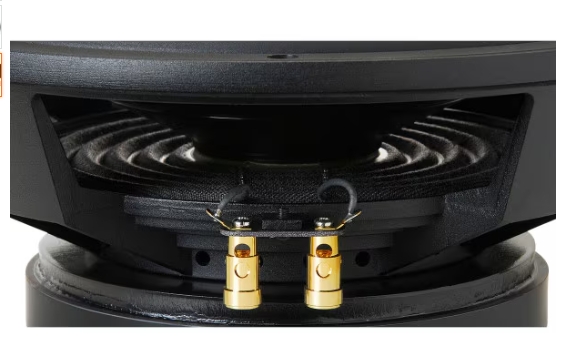

Dayton Audio RSS315HF-4, 315mm (12in) Reference HF Subwoofer 4 Ohm
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |
| Speaker Type | Aluminum Cone Subwoofer |
| Nominal Diameter | 31cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 400 W |
| Frequency Response | 23 - 1000 Hz |
| Sensitivity | 90.3 dB |
| Voice Coil Diameter | 64mm |
Dayton Audio RSS315HF-4 12" Reference HF Subwoofer 4 Ohm As with the rest of the Dayton Audio Reference Series speakers, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion for the Reference Series RSS315HF-4 12" subwoofer speaker. The black anodized cone, rubber surround, and custom basket give this driver and the rest of the Reference Series a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.
| FILENAME | ACTION |
|---|---|
| rss315hf4.pdf | Download |
