Dayton Audio Shadow Mount LCD3260-FM Fixed TV Wall Mount 32"-90"
Product Specifications
Manufacturer DAYTON AUDIO
Summary Dayton Audio Shadow Mount LCD3260-FM Fixed TV Wall Mount 32"-90"
Shadow Mounts from Dayton Audio place the focus on your flat panel television—not the mount. By using an inconspicuous flat black finish, the LCD3260-FM fixed-position mount virtually disappears behind the display. Heavy-duty, solid-steel construction provides you with peace of mind, knowing your HDTV investment is held securely in place for years to come. Fixed mounts are the perfect solution to installing your LCD and plasma TV permanently, and are suited for both commercial and residential applications.

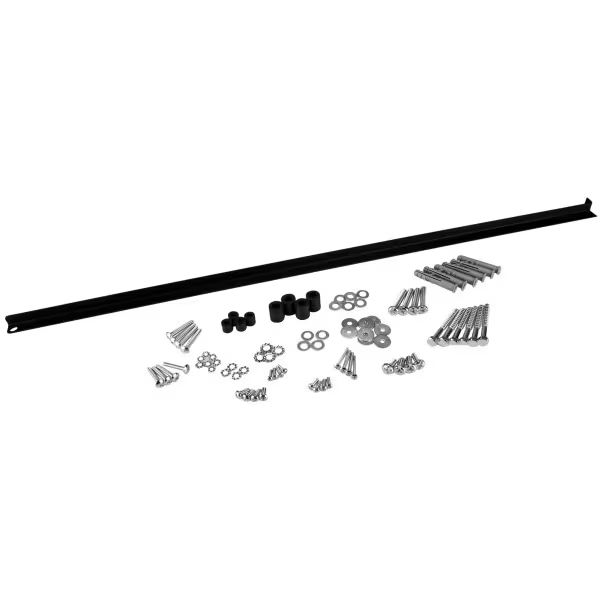

Designed to work with VESA sizes 75, 100, 200 x 100, 200, and 400 x 200. Maximum supported weight is 175 lbs. Lag bolts, concrete anchors, Phillips head mounting screws (M4, M5, M6 and M8), safety bolts, and easy-to-follow instructions are included. Two additional height position tabs have been built into mounting arms of the LCD3260-FM to quickly adjust the TV up or down 2" from the center mount position. Note: Consult your TV's owners manual for VESA sizing information.

Dimensions and Specifications: • Wall bracket: 32.4" (822 mm) W x 9.25" (235 mm) H • TV bracket: 1.375" (35 mm) W x 20.9" (530 mm) H • Minimum TV to wall distance: 0.98" (24 mm) • Mounting width supported: 50-770 mm • Mounting height supported: 50-480 mm • Supported VESA sizes: 75, 100, 200 x 100, 200, 400 x 200, 600 x 400 • Maximum weight capacity: 175 lbs. (80 kg).

Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements.
lcd-fm-manual.pdf Download
