CDSP8X12 V2

2 left in stock
miniDSP, CDSP8X12 V2 car audio processor, 8 in, 12 out, SHARC Floating Point DSP.
CA$725.01each
Product Specifications
Manufacturer MINIDSP

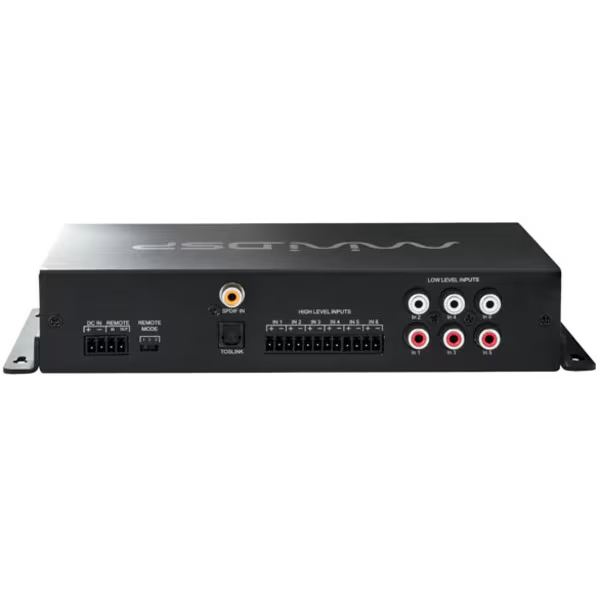

Summary The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems. New to this upgraded version are the onboard 32bit AKM converters that provide low noise and improved dynamic range to perfect your miniDSP experience.

The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.

Features
  • 400MHz 32bit Sharc Floating point processor, Up to 192kHz processing
  • 32bit DAC/ADC chipsets
  • THD+N 0.0007%, 115dB SNR
  • Digital and analog inputs (Low/High levels), 12 analog outputs
  • Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
  • Fully differential balanced inputs
  • Windows/Mac compatible GUI

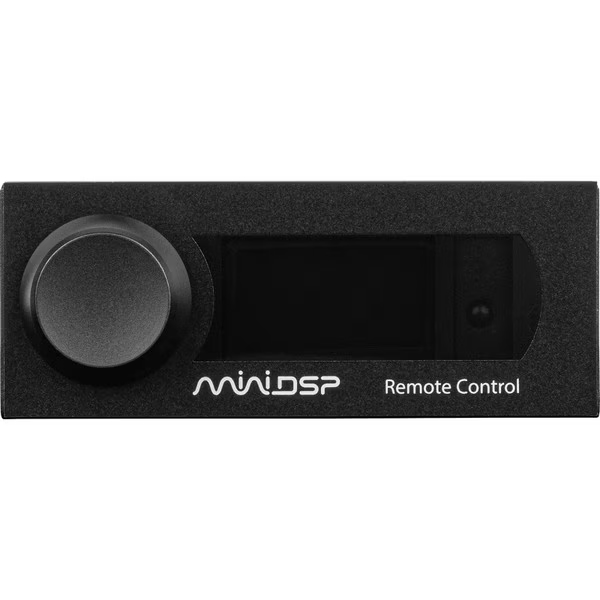

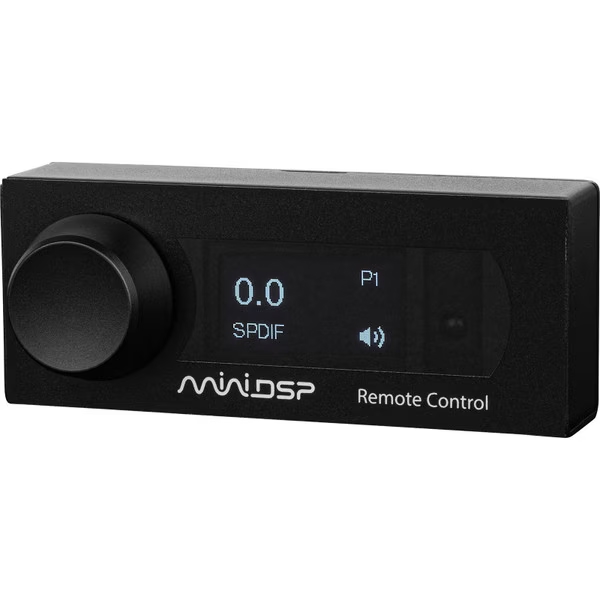

Remote control or preset/master & sub volume control


FILENAME ACTION
cdsp8x12v2.pdf Download
