NILAI500STEREOKIT

Description
/Nilai® Class D technology is here!
The Nilai500DIY is the long-awaited successor to the acclaimed NC400. Its polished shiny exterior is true reflection of what is to be found inside. The engine room houses a brand new control-loop topology that really boosts performance to the next level. It outperforms Ncore by not less than 10 times!

The module comes with a fully discrete buffer stage and on-board voltage regulators, just like the NC400 it’s replacing. Together with carefully selected high-grade components, the Nilai500DIY is our best sounding amplifier to date. We have created a truly special technique which sets a new benchmark for high-end audio applications and is a truly unique amplifier module for our DIY community.

Combining the Nilai500DIY with the matching PS500DIY will result in the best possible ready-to-go DIY-experience possible!

Build yourself a state-of-the-art high-end 2 times 250W stereo power amplifier with this DIY kit by DIYclassD. DIYclassD is part of Hypex Electronics. At DIYclassD our aim is to serve the global DIY community and consumer market for Hypex products.

With the easy to follow instructions you will be able to realize a high end power amplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD PreAmplifier kit you can create a complete set of superbly sounding equipment.

All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier)• 5.5 mm hex nut driver (or combination plier) • 7 mm hex nut driver (or combination plier) • 3.5 mm flat type screwdriver

Warranty: 5 years / 20.000h

Key Features

Ultra Low Distortion
Very Low Idle Power
Very Low Noise
Very Low Output Impedance
Incorporates Audiophile Components
Specifications:

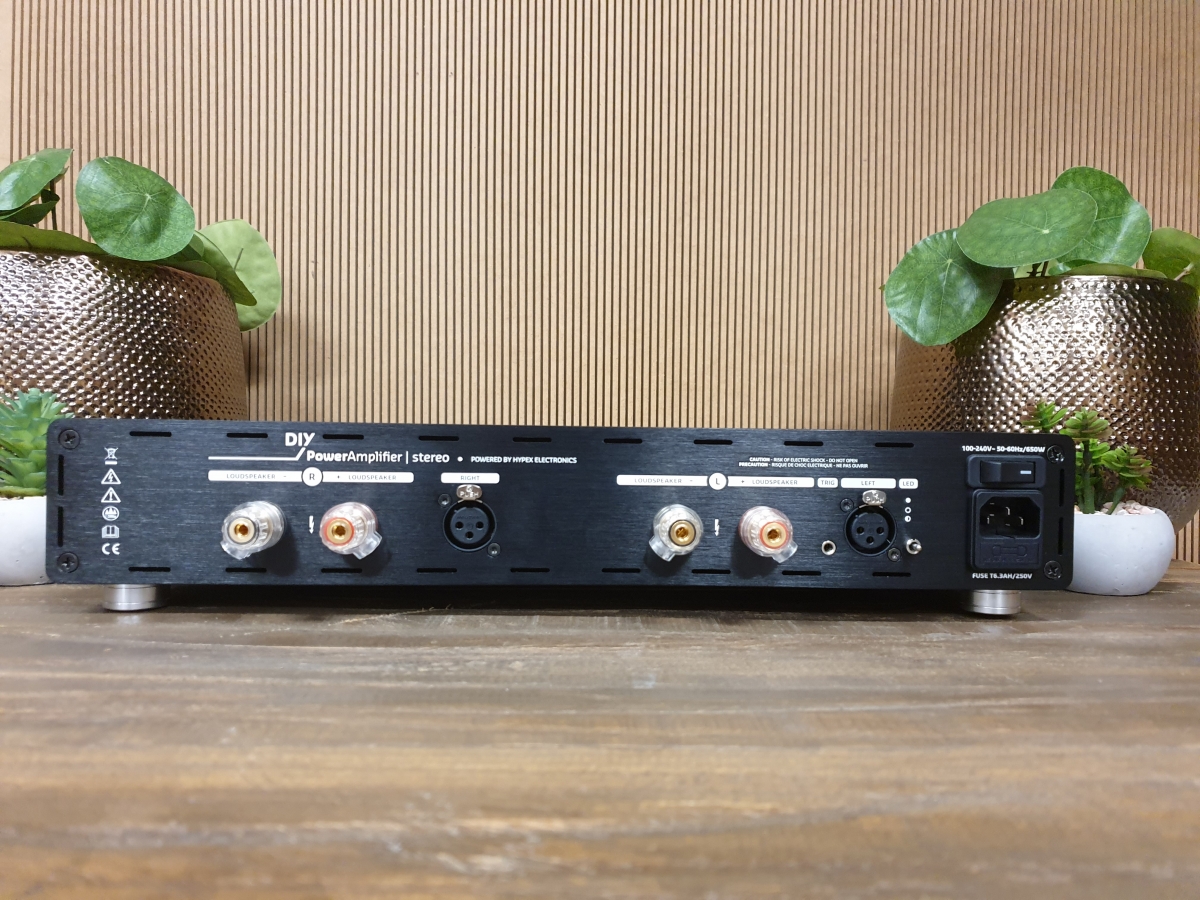

Inputs

2 x Balanced XLR
1 x Trigger 12V

Outputs

2 x Goldplated Bindingpost Set
           (Banana plug, Spade plug or Bare wire)

Specs
Technique Nilai
Power (2Ω) 300W x 2 @ 2Ω, 1 kHz, THD < 1%
Power (4Ω) 300W x 2 @ 4Ω, 1 kHz, THD < 1%
Power (8Ω) 260W x 2 @ 8Ω, 1 kHz, THD < 1%
Channels 2
Weight 5,6 kg
Dimensions mm 420*300*80 mm
Mains voltage input 100 - 240Vac
Automatic input voltage selection universal mains

This kit contains:

Complete DIYclassD Nilai500DIY stereo case “matte black”,
Complete internal cable harness,
1x PS500DIY power supply,
2x Nilai500DIY amplifier module,
Inputboards & Frontboard,
All needed mounting materials,
Assembly instruction,
1.5mm Allen key,
2.5mm Allen key,
TX-10 Torx key,
TX-20 Torx key
