PTT6.5X04-NFA-01
- PTT6.5X04-NFA-01
- PURIFI AUDIO

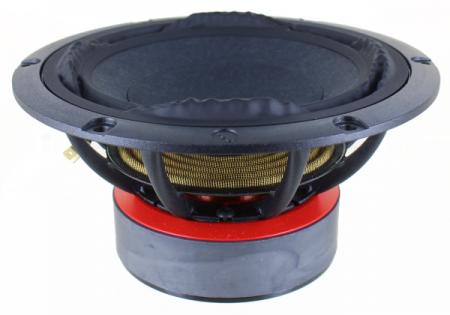

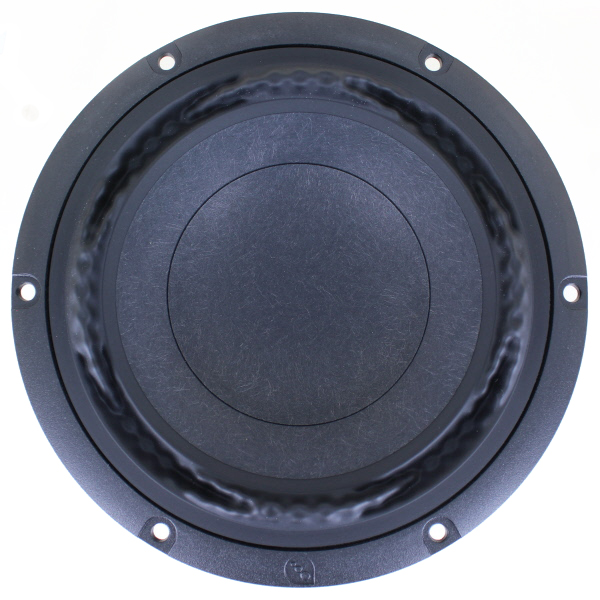

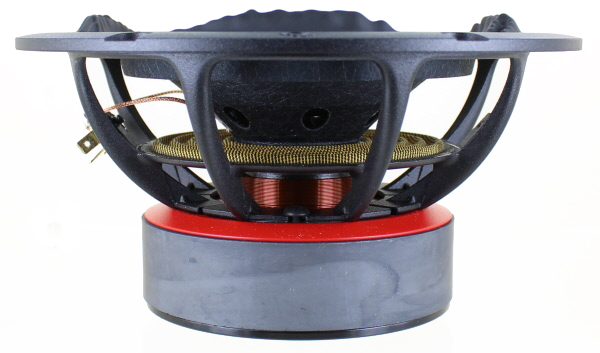

Purifi PTT6.5X04-NFA-01, 176mm (7in) Fiber Cone Mid-Bass, with 39mm (1.5in / 1-1/2in) Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | PURIFI AUDIO |
| Speaker Type | Fiber Cone Woofer |
| Nominal Diameter | 176mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 100 W |
| Frequency Response | 30 - 3500 Hz |
| Sensitivity | 88.5 dB |
| Voice Coil Diameter | 39mm |
Description
This 6.5" is a member of the ultra low distortion extended-stroke woofer family from PURIFI. The driver incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite of it’s compact size.
The PTT6.5X04-NFA-01 features:
Vibroacoustic optimized cone and dust cap in proprietary paper fiber mix
Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
Ultra Low Magnetic Hysteresis Distortion (MHD)
"Real" long-stroke performance with distortion remaining low over full excursion
Uncompromised midrange performance
Designed and manufactured in Denmark
| FILENAME | ACTION |
|---|---|
| ptt65w04.pdf | Download |
