SKU: MR16TX-8
Brand: SB ACOUSTICS

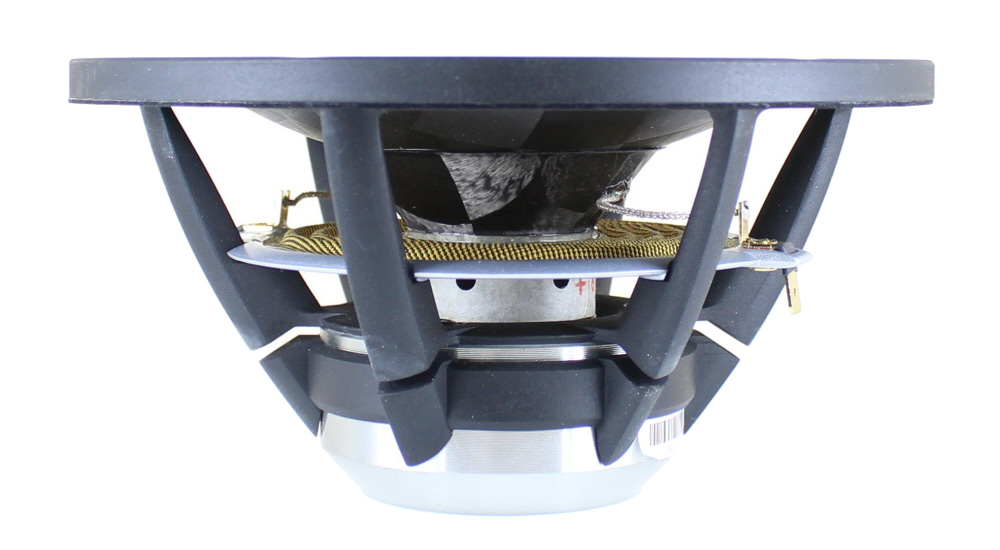

SB ACOUSTICS SATORI MR16TX-8, 165mm (6.5in / 6-1/2in) TEXTREME CONE NEODYMIUM MIDRANGE 8 OHM

Product Specifications
Manufacturer	SB ACOUSTICS
Speaker Type	Textreme Cone Midrange
Nominal Diameter	17cm
Impedance	8 ohms
Power Handling (RMS)	30 W
Frequency Response	35 - 10000 Hz
Sensitivity	89dB
Voice Coil Diameter	36mm

SB ACOUSTICS SATORI MR16TX-8, 17cm TEXTREME CONE NEODYMIUM MIDRANGE 8OHM

Features

Advanced TeXtreme® cone
Vented aerodynamic cast aluminum chassis
Inverted soft low damping rubber surround
Advanced BIMAX spider
Powerful optimized low distortion neodymium motor system
Extended copper sleeve on pole piece
Non-conducting fiberglass voice coil former
Vented pole piece and voice coil
Light weight CCAW voice coil
Long life silver lead wires

Specs

Nominal Impedance 8 Ω
DC resistance, Re 6.2 Ω
Voice coil inductance, Le 0.11 mH
Effective piston area, Sd 117 cm2
Voice coil diameter 35.5 mm
Voice coil height 10.7 mm
Air gap height 5 mm
Linear coil travel (p-p) 5.7 mm
Magnetic flux density 1.17 T
Magnet weight (NEO) 0.13 kg
Net weight 1 kg
Free air resonance, Fs 35 Hz
Sensitivity (2.83 V / 1 m) 89 dB
Mechanical Q-factor, Qms 6.47
Electrical Q-factor, Qes 0.32
Total Q-factor, Qts 0.31
Moving mass incl. air, Mms 10.3 g
Force factor, Bl 6.6 Tm
Equivalent volume, VAS 38.9 liters
Compliance, Cms 2.0 mm/N
Mechanical loss, Rms 0.35 kg/s
Rated power handling* 30 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME	ACTION
mr16tx8.pdf	Download
