MW19P-4

4 left in stock

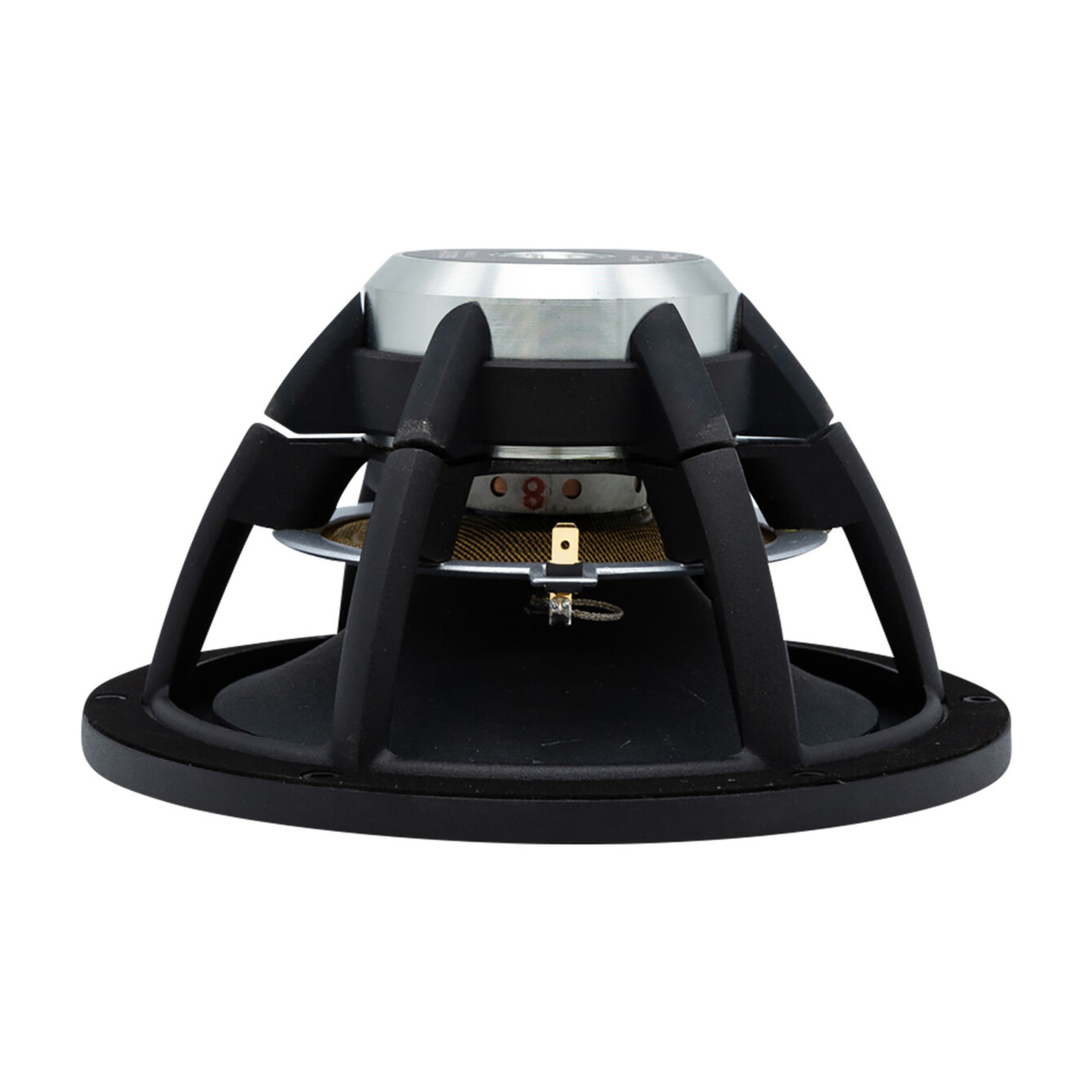

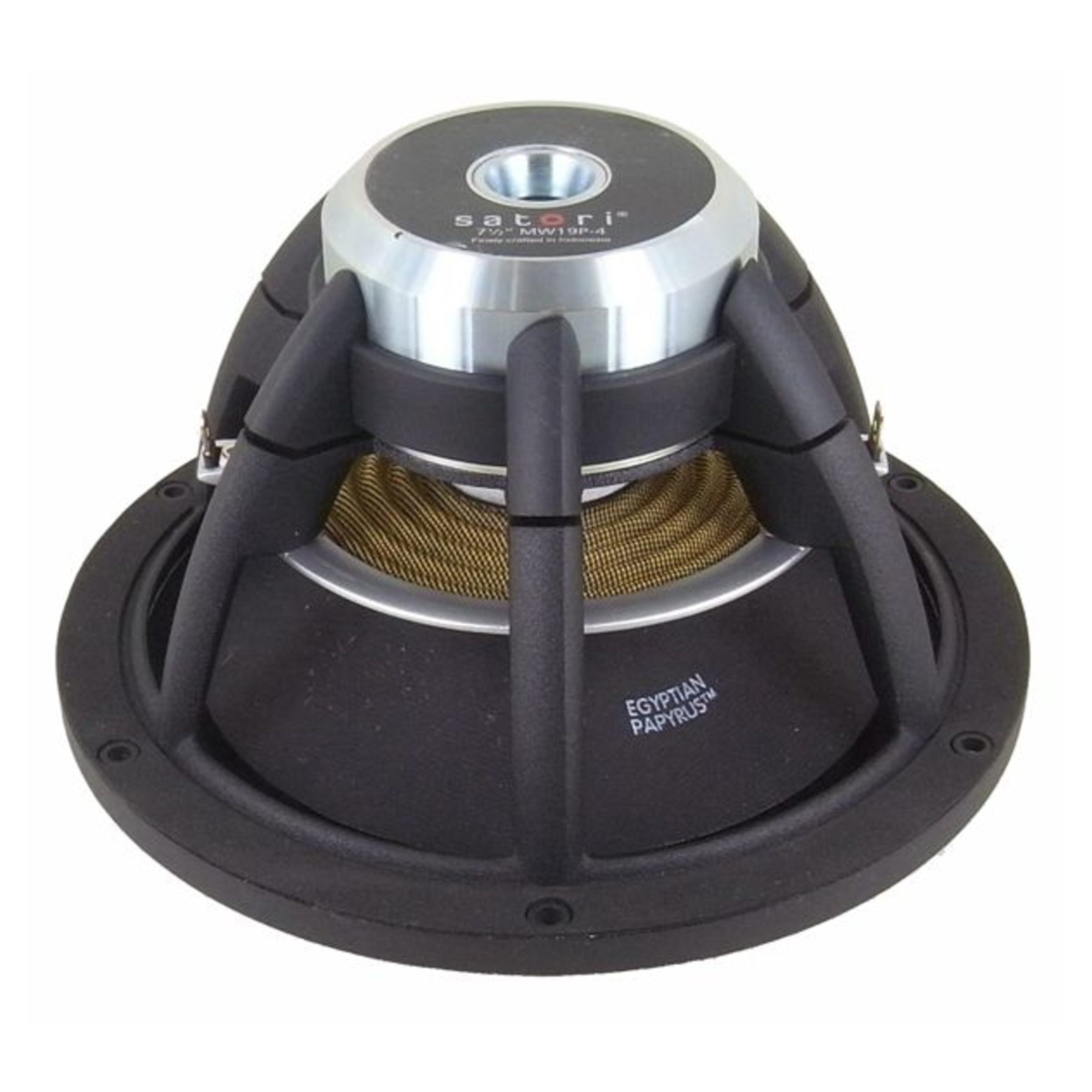

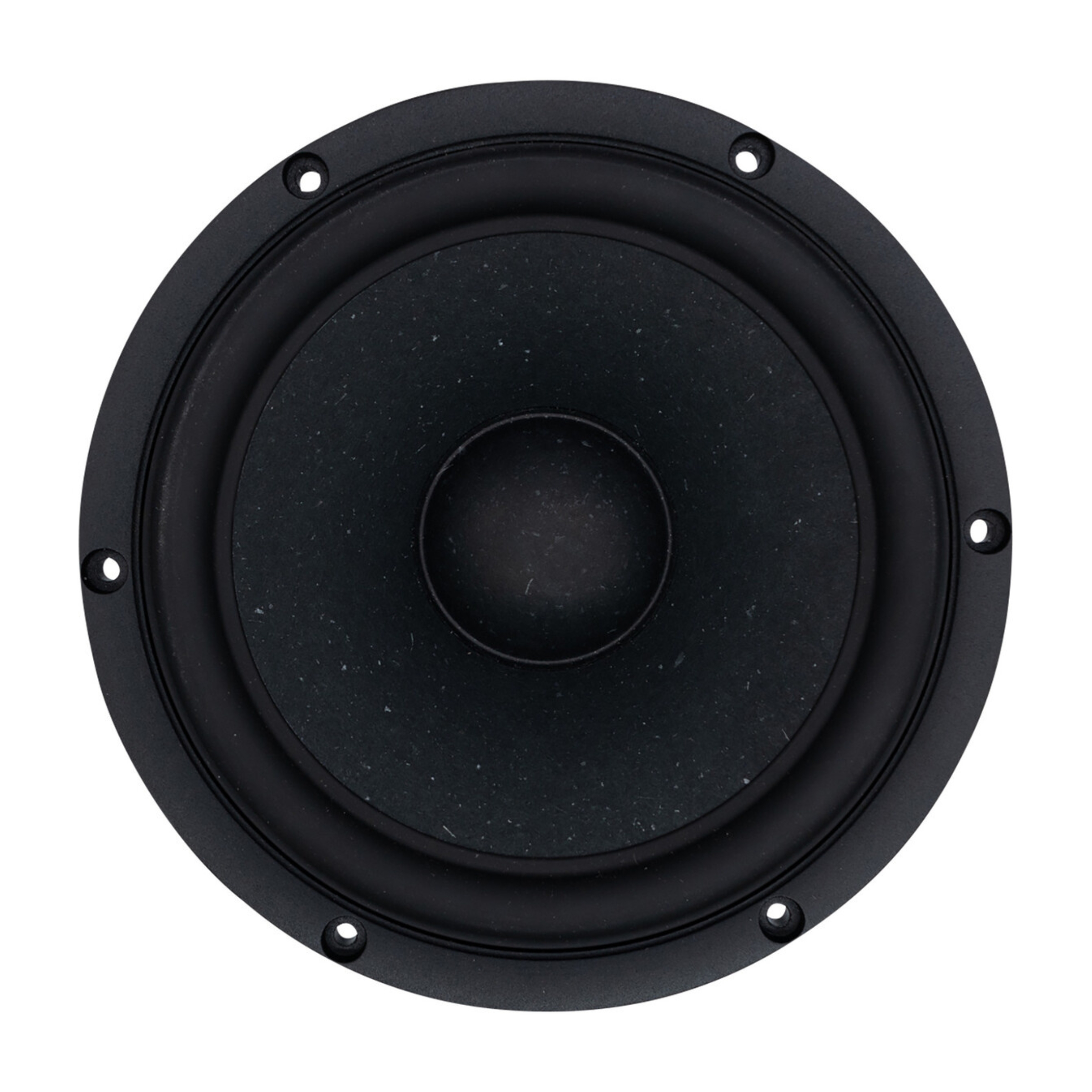

SB ACOUSTICS SATORI MW19P-4, 19cm PAPYRUS CONE NEODYMIUM WOOFER BLACK 4OHM
CA$285.35each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Papyrus Cone Neodymium Woofer
Nominal Diameter 19cm
Impedance 4 ohms
Power Handling (RMS) 80 W
Frequency Response 32-7000 Hz
Sensitivity 91.5 dB
Voice Coil Diameter 39mm

SB ACOUSTICS SATORI MW19P-4, 19cm PAPYRUS CONE NEODYMIUM WOOFER BLACK 4OHM Features Vented aerodynamic cast aluminium chassis for optimum strength and low compression Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house Soft low damping rubber surround for optimum transient response Advanced BIMAX spider for improved linearity Powerful optimized low distortion neodymium motor system Non-conducting fibre glass voice coil former for minimum damping Extended copper sleeve on pole piece for low inductance and reduced distortion CCAW voice coil for reduced moving mass Long life silver lead wires attached 180° apart for improved stability Vented pole piece for reduced compression High piston to chassis diameter ratio Gasket and bolt hole protrusions for reduced coupling to speaker cabinet Specs Nominal Impedance 4 Ω DC resistance, Re 3.4 Ω Voice coil inductance, Le 0.14 mH Effective piston area, Sd 158 cm2 Voice coil diameter 39 mm Voice coil height 19.6 mm Air gap height 6 mm Linear coil travel (p-p) 13.6 mm Magnetic flux density 1.1 T Magnet weight 0.15 kg Net weight 1.48 kg Free air resonance, Fs 32 Hz Sensitivity (2.83V/1m) 91.5 dB Mechanical Q-factor, Qms 4.11 Electrical Q-factor, Qes 0.30 Total Q-factor, Qts 0.28 Moving mass incl. air,Mms 18.4 g Force factor, Bl 6.5 Tm Equivalent volume, Vas 48 liters Compliance, Cms 1.35 mm/N Mechanical loss, Rms 0.9 kg/s Rated power handling* 70 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
mw19p4.pdf Download
