Product Specifications | |
---|---|
Manufacturer | SB ACOUSTICS |
Tweeter Type | Beryllium Dome Tweeter |
Cone / Dome Diameter | 29mm |
Impedance | 4 ohms |
Power Handling (RMS) | 80 W |
Resonance Frequency | 600 Hz |
Sensitivity | 92 dB |

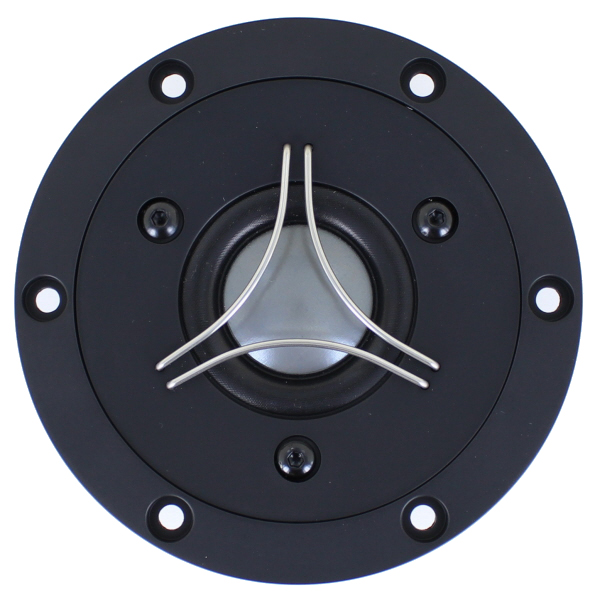

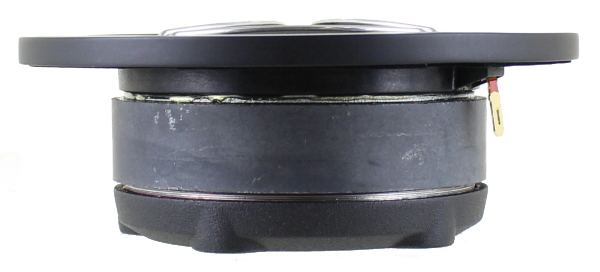

SB ACOUSTICS SATORI, TW29B-B 29mm BERYLLIUM DOME TWEETER BLACK 4OHM Features Beryllium dome for non-resonant high frequency extension Two part aluminium faceplate with integrated mechanical decoupling Dual balanced compression chambers for improved dynamics Dual copper caps for absolute minimum voice coil inductance and minimum phase shift Non-reflective cast aluminium chamber with optimized damping for improved dynamics CCAW voice coil for low moving mass Long life silver lead wires Low resonance frequency for extended range Specs Nominal Impedance 4 Ω DC resistance, Re 3.0 Ω Voice coil inductance, Le 0.02 mH Effective piston area, Sd 9.6 cm2 Voice coil diameter 29.0 mm Voice coil height 2.0 mm Air gap height 2.5 mm Linear coil travel (p-p) 0.5 mm Moving mass incl. air, Mms 0.46 g Free air resonance, Fs 600 Hz Sensitivity (2.83 V / 1 m) 92 dB Mechanical Q-factor, Qms 2.9 Electrical Q-factor, Qes 1.3 Total Q-factor, Qts 0.9 Force factor, Bl 2.0 Tm Rated power handling* 80 W Magnetic flux density 1.0 T Magnet weight 0.22 kg Net weight 0.53 kg * IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.
