TW29BN

4 left in stock

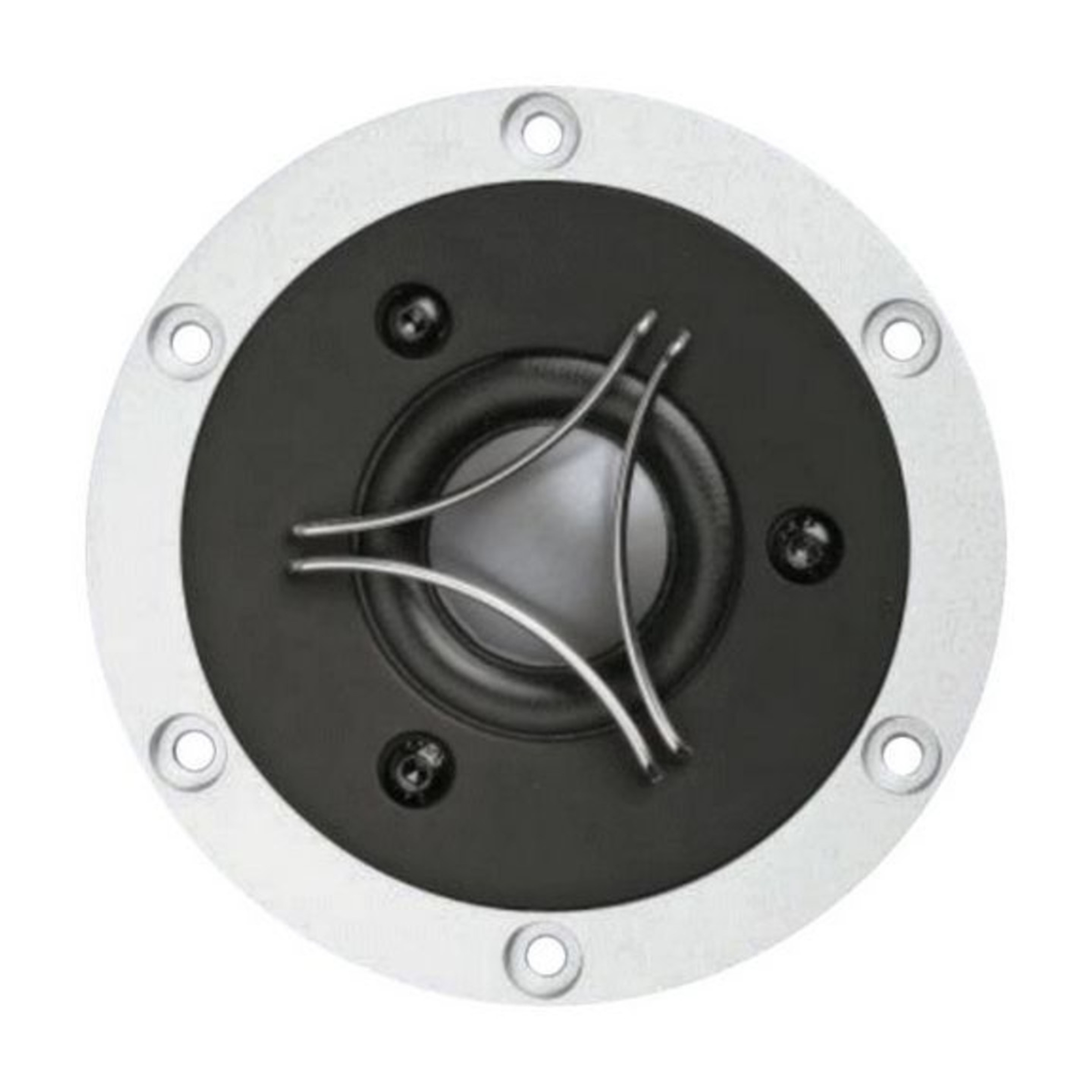

SB ACOUSTICS SATORI, TW29BN 29mm BERYLLIUM DOME NEODYMIUM TWEETER SILVER 4OHM
CA$547.20each
Product Specifications
Manufacturer SB ACOUSTICS
Tweeter Type Beryllium Dome Neodymium Tweeter
Cone / Dome Diameter 29mm
Impedance 4 ohms
Power Handling (RMS) 80 W
Resonance Frequency 725 Hz
Sensitivity 95 dB

SB ACOUSTICS SATORI, TW29BN 29mm BERYLLIUM DOME NEODYMIUM TWEETER SILVER 4OHM Features Beryllium dome for non-resonant high frequency extension Two part aluminium faceplate with integrated mechanical decoupling Dual balanced compression chambers for improved dynamics Dual copper caps for absolute minimum voice coil inductance and minimum phase shift High saturation neodymium motor system with T-shaped pole piece for lower distortion Non-reflective cast aluminium chamber with optimized damping for improved dynamics Shallow flow optimized magnet structure for optimum coupling to rear chamber CCAW voice coil for low moving mass Long life silver lead wires Low resonance frequency for extended range Specs Nominal Impedance 4 Ω DC resistance, Re 3.0 Ω Voice coil inductance, Le 0.02 mH Effective piston area, Sd 9.6 cm2 Voice coil diameter 29.0 mm Voice coil height 2.0 mm Air gap height 2.5 mm Linear coil travel (p-p) 0.5 mm Moving mass incl. air, Mms 0.46 g Free air resonance, Fs 700 Hz Sensitivity (2.83 V / 1 m) 95 dB Mechanical Q-factor, Qms 2.1 Electrical Q-factor, Qes 0.60 Total Q-factor, Qts 0.46 Force factor, Bl 3.1 Tm Rated power handling* 80 W Magnetic flux density 1.5 T Magnet weight 0.11 kg Net weight 0.41 kg * IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

FILENAME ACTION
tw29bn.pdf Download
