||Textile Dome Neodymium Tweeter
|Cone / Dome Diameter
|Power Handling (RMS)

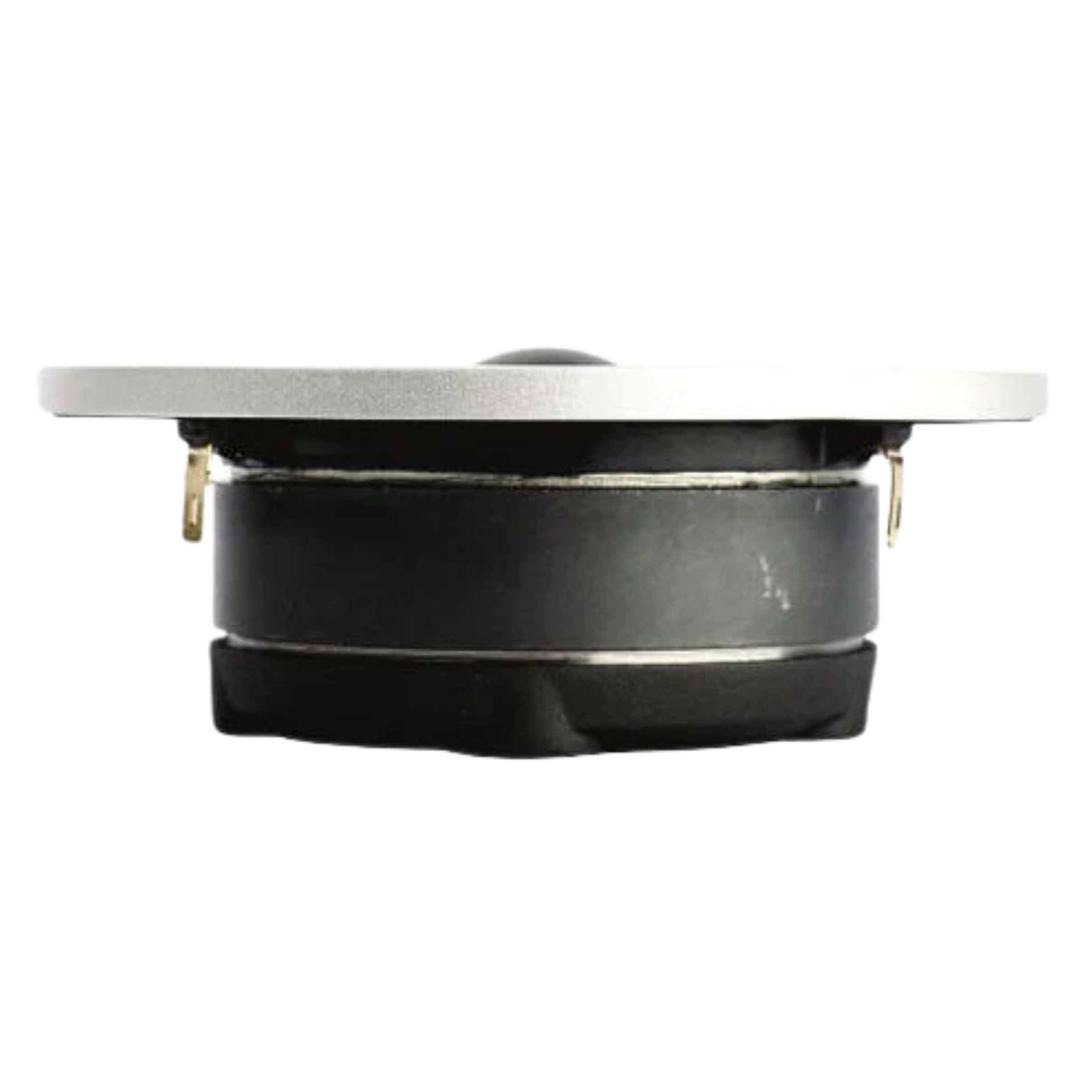

SB ACOUSTICS SATORI, TW29DN 29mm TEXTILE DOME NEODYMIUM TWEETER SILVER 4OHM Features Large surround dome for increased acoustic output Dual balanced compression chamber for improved dynamics Dual copper caps for absolute minimum voice coil inductance and minimum phase shift Two part aluminium faceplate with integrated mechanical decoupling High saturation neodymium motor system with T-shaped pole piece for lower distortion Non-reflective cast aluminium chamber with optimized damping for improved dynamics Shallow flow optimized magnet structure for optimum coupling to rear chamber CCAW voice coil for low moving mass Long life silver lead wires Low resonance frequency for extended range Specs Nominal Impedance 4 Ω DC resistance, Re 3.0 Ω Voice coil inductance, Le 0.02 mH Effective piston area, Sd 9.6 cm2 Voice coil diameter 29 mm Voice coil height 2.0 mm Air gap height 2.5 mm Linear coil travel (p-p) 0.5 mm Moving mass incl. air, Mms 0.45 g Free air resonance, Fs 650 Hz Sensitivity (2.83V/1m) 96.5 dB Mechanical Q-factor, Qms 1.66 Electrical Q-factor, Qes 0.57 Total Q-factor, Qts 0.43 Force factor, Bl 3.1 Tm Rated power handling* 80 W Magnetic flux density 1.5 T Magnet weight 0.10 g Net weight 0.39 kg * IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.
