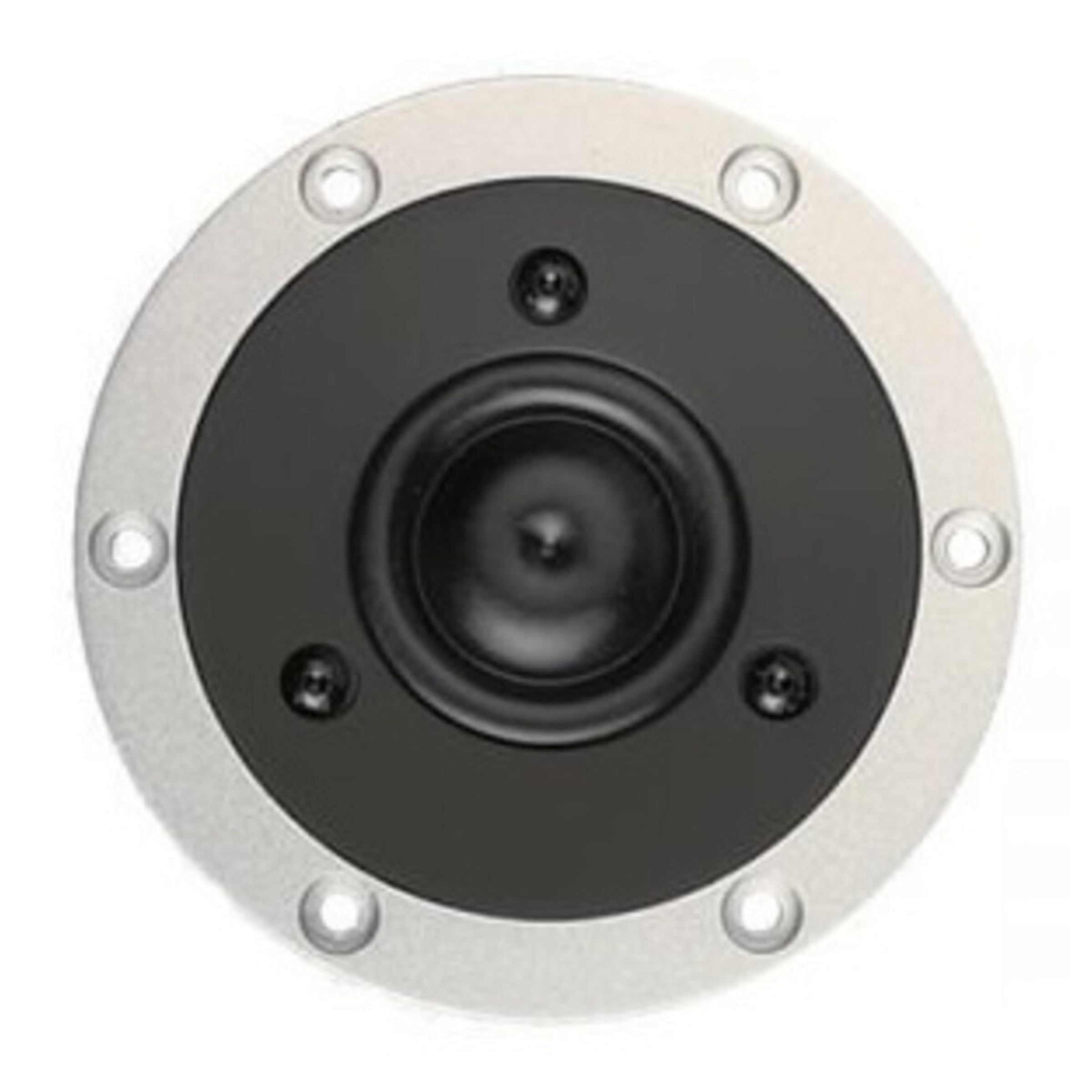

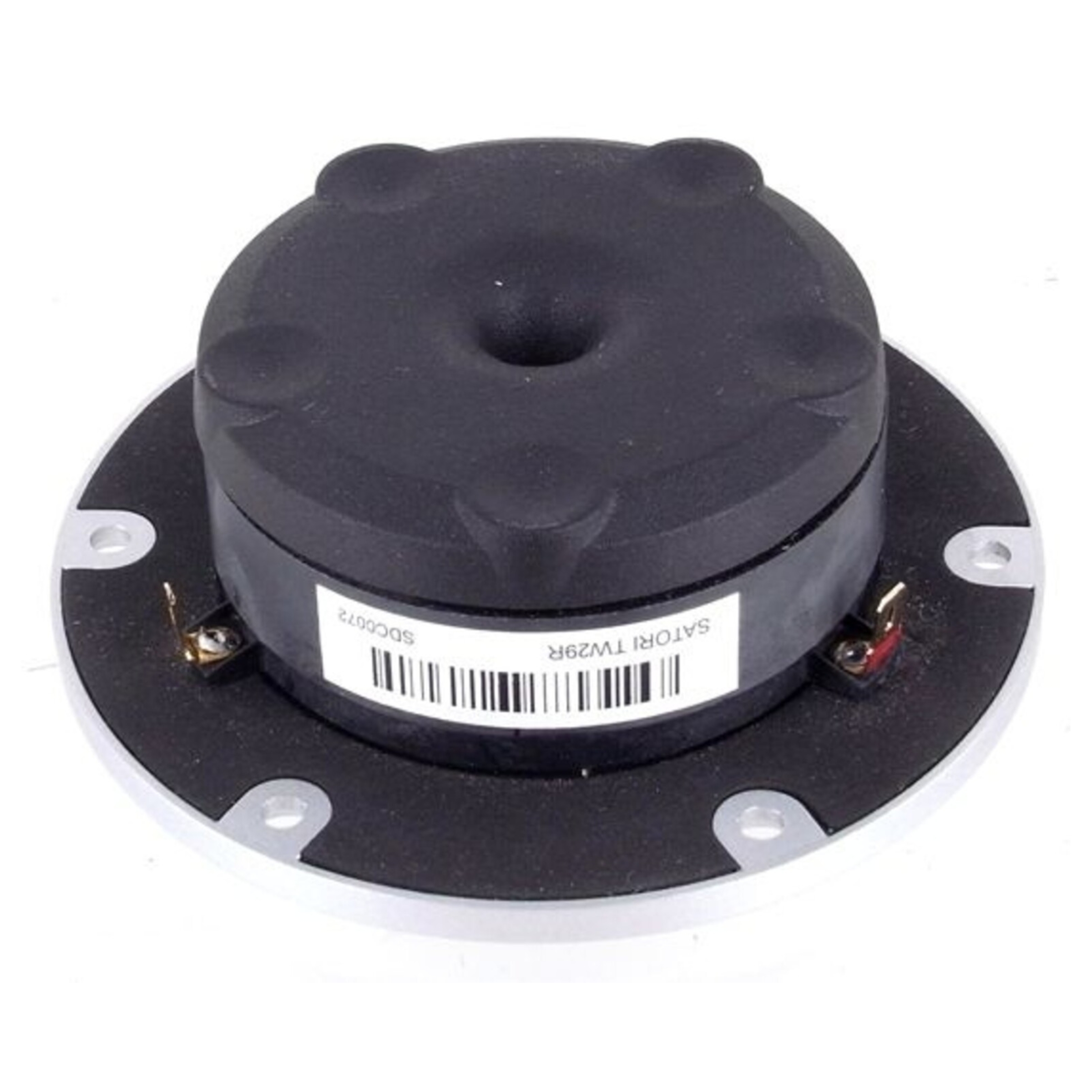

SB ACOUSTICS SATORI, TW29R 29mm RING DOME TWEETER SILVER 4OHM
CA$215.95Each
Choose another model
  • Choose another model
  • 13-1761S CA$29.94Pair
  • 19TAFDG08 CA$85.40Each
  • 22TAF/G06 CA$95.76Each
  • 22TFF06 CA$86.24Each
  • 27TAFNC/D04 CA$70.56Each
  • 27TBC/G06 CA$105.00Each
  • 27TBCD/GBDXT CA$164.92Each
  • 27TBFC/G06 CA$105.84Each
  • 27TDC06 CA$114.80Each
  • 27TDFC06 CA$115.64Each
  • 27TFF06 CA$86.24Each
  • 27TFFC06 CA$94.08Each
  • 27TFFNC/G04 CA$61.32Each
  • 29TFF/W06 CA$112.00Each
  • BC20SC1504 CA$12.00 Each CA$15.68
  • BC25SC0604 CA$23.88Each
  • BC25TG1504 CA$15.00 Each CA$28.41
  • CAT298 CA$117.31Each
  • CAT308 CA$180.88Each
  • CAT328-104 CA$203.49Each
  • CAT408 CA$184.60Each
  • D2604/8300 CA$67.90Each
  • D2604/8330 CA$76.05Each
  • D2606/9200 CA$59.75Each
  • D2606/9220 CA$76.05Each
  • D2608/9130 CA$141.23Each
  • D2904/7100-02 CA$350.00 Each CA$464.44
  • D2904/7100-03 CA$464.44Each
  • D2904/9500 CA$233.58Each
  • D2904/9800 CA$325.92Each
  • D2905/9300 CA$203.70Each
  • D2905/9500 CA$220.00Each
  • D2905/9700 CA$260.74Each
  • D2905/9900 CA$399.25Each
  • D2908/7140 CA$920.72Each
  • D3004/6020-10 CA$140.00 Each CA$222.71
  • D3004/6600 CA$323.20Each
  • D3004/6620-00 CA$358.51Each
  • DC25T-8 CA$21.82Each
  • DC28F-8 CA$32.54Each
  • DC28FS-8 CA$36.41Each
  • DC28FT-8 CA$34.55Each
  • DSM25FFL CA$79.00 Each CA$124.83
  • DX20BF0004 CA$10.00 Each CA$17.08
  • DX20SC0004 CA$12.00 Each CA$21.75
  • DX25TG5904 CA$22.00 Each CA$34.66
  • ET338 CA$377.45Each
  • ET338-104 CA$362.03Each
  • ET448 CA$251.64Each
  • G20SC CA$98.71Each
  • G25FFL CA$79.00 Each CA$130.16
  • HR104B8-15T CA$40.88Each
  • KE25SC CA$282.11Each
  • MDT30S CA$177.42Each
  • MDT32S CA$179.28Each
  • ND16FA-6 CA$10.18Each
  • ND20FA-6 CA$12.68Each
  • ND20FB-4 CA$17.46Each
  • ND25FA-4 CA$15.28Each
  • ND25FN-4 CA$14.09Each
  • ND25TA-4 CA$25.92Each
  • ND28F-6 CA$20.80Each
  • R2604/8320 CA$78.76Each
  • R2604/8330 CA$95.06Each
  • R2904/7000 CA$510.61Each
  • R2904/7000-09 CA$510.61Each
  • R3004/6020-00 CA$170.00 Each CA$263.45
  • R3004/6020-10 CA$180.00 Each CA$282.46
  • R3004/6620-00 CA$399.25Each
  • SB19ST-C000-4 CA$31.01Each
  • SB26ADC-C000-4 CA$71.42Each
  • SB26ST-C000-5 CA$40.04Each
  • SB26STAC-C000-4 CA$63.97Each
  • SB26STC-C000-4 CA$46.40Each
  • SB26STCN-C000-4 CA$49.82Each
  • SB29RDC-C000-4 CA$76.32Each
  • SB29RDNC-C000-4 CA$93.97Each
  • SC10NC CA$35.82Each
  • SD1.1A CA$29.47Each
  • ST1048 CA$501.68Each
  • ST1108 CA$529.07Each
  • ST1308 CA$574.03Each
  • ST728 CA$451.67Each
  • T20-8 CA$17.44Each
  • T25-001 CA$285.04Each
  • T25-002 CA$733.60Each
  • T29CF002 CA$649.32Each
  • T29D001 CA$5,635.00Each
  • T3506 CA$619.94Each
  • T35C002 CA$560.56Each
  • TN28 CA$38.15Each
  • TW013WA01 CA$36.00 Each CA$95.20
  • TW022WA02 CA$86.52Each
  • TW022WA05 CA$99.06Each
  • TW022WA04 CA$78.40Each
  • TW022WA06 CA$44.00 Each CA$99.06
  • TW025A0 CA$55.95Each
  • TW025A1-12X9 CA$60.08Each
  • TW025A2 CA$53.49Each
  • TW025A20 CA$194.27Each
  • TW025A28 CA$184.40Each
  • TW030WA01 CA$113.68Each
  • TW030WA02 CA$115.30Each
  • TW030WA03 CA$48.00 Each CA$94.72
  • TW030WA04 CA$48.00 Each CA$95.68
  • TW030WA05 CA$114.24Each
  • TW030WA07 CA$114.24Each
  • TW030WA06 CA$117.60Each
  • TW030WA08 CA$117.60Each
  • TW030WA10 CA$53.00 Each CA$119.95
  • TW030WA11 CA$126.39Each
  • TW030WA12 CA$126.39Each
  • TW29R-B CA$215.95Each
  • TW6NG CA$23.04Each
  • UR74B4-13T CA$15.26Each
  • TW034X0 CA$130.77Each
  • FT17H CA$92.40Each
  • OX20SC0004 CA$13.00 Each CA$22.58
  • TW29RN CA$253.23Each
  • TSCT1044 CA$663.67Each
  • TSCT1104 CA$706.76Each
  • MDT29 CA$130.91Each
  • C25-6-158 CA$694.81Each
  • C30-6-358 CA$765.14Each
  • ASCA253082 CA$81.58Each
  • ASCA2530106 CA$118.15Each
  • ASCA90130 CA$106.89Each
  • D3004/6040-10 CA$480.73Each
  • ND25FW-4 CA$20.80Each
  • TW29RN-B CA$253.23Each
  • H2606/9200 CA$59.75Each
  • SB21SDC-C000-4 CA$58.99Each
  • SB21RDC-C000-4 CA$70.60Each
  • TW29BN CA$399.00 Each CA$600.62
  • TW29BN-B CA$600.62Each
  • OC16SC0004 CA$8.00 Each CA$12.78
  • 27TFFNC/CG04 CA$66.36Each
  • D3404/5520-00 CA$928.87Each
  • SB29SDAC-C000-4 CA$65.75Each
  • TW29B CA$489.06Each
  • TW29B-B CA$489.06Each
  • TD20F-4 CA$13.02Each
  • RST28A-4 CA$55.96Each
  • RST28F-4 CA$48.40Each
  • ND13FA-4 CA$15.18Each
  • ND16FA-4 CA$12.08Each
  • DSN25F-4 CA$27.46Each
  • NHP25F-4 CA$33.98Each
  • NHP25TI-4 CA$33.62Each
  • FP104 CA$12.99Each
  • FP110 CA$12.99Each
  • SB14ST-C000-4 CA$40.41Each
  • SB26CDC-C000-4 CA$80.61Each
  • SB29RDAC-C000-4 CA$84.56Each
  • SB29BNC-C000-4 CA$427.31Each
  • SB29BAC-C000-4 CA$431.37Each
  • TW29D CA$207.95Each
  • TW29D-B CA$207.95Each
  • TW29DN CA$229.57Each
  • TW29DN-B CA$229.57Each
  • TW29DN-8 CA$229.57Each
  • TW29DN-B-8 CA$229.57Each
  • TW29BN-8 CA$600.62Each
  • TW29BN-B-8 CA$600.62Each
  • TW4MKII CA$337.64Each
  • TM4055-8 CA$396.34Each
  • T34A-4 CA$472.12Each
  • T34B-4 CA$751.10Each
  • DSN25TI-4 CA$27.42Each
  • 27TAC/GB06 CA$139.72Each
  • D2104/7120-00 CA$325.92Each
  • T29D002 CA$5,408.62Each
  • CP13 CA$58.88Pair
  • TW29RN-8 CA$253.23Each
  • TW29RN-B-8 CA$253.23Each
  • SB21SDCN-C000-4 CA$58.99Each
  • SB21RDCN-C000-4 CA$72.53Each
  • SB26STWGC-4 CA$125.24Each
  • TW29TXN-B CA$401.58Each
  • TW29TXN-B-8 CA$401.58Each
  • T25A-6 CA$228.01Each
  • T25B-6 CA$496.26Each
  • LD22 CA$117.39Each
  • LD25X CA$234.70Each
  • TW29BNWG-4 CA$661.94Each
  • TW29BNWG-8 CA$661.94Each
  • TW022WA07 CA$57.00 Each CA$127.48
  • TW022WA08 CA$57.00 Each CA$127.48
  • TW022WA09 CA$112.06Each
  • TW022WA10 CA$112.06Each
  • T25S-6 CA$228.01Each
  • 19TFF108 CA$67.76Each
  • TW29-GRILL CA$25.56Pair
  • TD25F-4 CA$24.46Each
  • D2404/5520-00 CA$635.54Each
  • CMP25_vHP-H-4 CA$75.44Each
  • TWT28_vHP-8 CA$112.53Each
  • TWT28_vMS-8 CA$213.69Each
  • TWT30_vMS-8 CA$237.76Each
  • D2008/852100 CA$111.36Each
  • D2010/852100 CA$135.80Each
  • SB29SDNC-C000-4 CA$93.97Each
  • SC5 CA$22.41Each
  • TW70 CA$23.04Each
  • TW045WA01 CA$159.00 Each CA$303.91
  • D3004/602200 CA$222.71Each
  • CE35-4 CA$8.32Each
  • R3004/602200 CA$263.45Each
  • T-2030 CA$123.90Each
  • T25M CA$252.00Each
  • T25S CA$220.50Each
  • T29X001 CA$642.60Each
  • TW030WA21 CA$110.04Each
  • TW030WA22 CA$110.04Each
  • TW030WA23 CA$133.06Each
  • TW030WA24 CA$133.06Each
  • TW045WA02 CA$278.21Each
  • D3004/606200 CA$331.35Each
  • D2004/602200 CA$282.46Each
  • R2004/602200 CA$244.44Each
  • D3004/666000 CA$597.52Each
  • D2908/716000 CA$651.84Each
  • 1TM-4 CA$6.09Each
  • 1TD1-8 CA$10.18Each
  • 1TD2-8 CA$14.22Each
  • PRT-8 CA$26.19Each
  • A25-2T CA$55.73Each
  • TW29TXNWG-4 CA$481.68Each
Product Specifications
Manufacturer SB ACOUSTICS
Tweeter Type Ring Dome Tweeter
Cone / Dome Diameter 29mm
Impedance 4 ohms
Power Handling (RMS) 80 W
Resonance Frequency 600 Hz
Sensitivity 92 dB

SB ACOUSTICS SATORI, TW29R 29mm RING DOME TWEETER SILVER 4OHM Features Non-resonant diaphragm design for minimum high frequency break-up Two part aluminium faceplate with integrated mechanical decoupling Dual balanced compression chambers for improved dynamics Dual copper caps for absolute minimum voice coil inductance and minimum phase shift Saturation controlled motor system with T-shaped pole piece for lower distortion Non-reflective cast aluminium chamber with optimized damping for improved dynamics Flow optimized vented pole piece for optimum coupling to rear chamber CCAW voice coil for low moving mass Long life silver lead wires Low resonance frequency for extended range Specs Nominal Impedance 4 Ω DC resistance, Re 3.0 Ω Voice coil inductance, Le 0.02 mH Effective piston area, Sd 9.6 cm2 Voice coil diameter 29.0 mm Voice coil height 2.0 mm Air gap height 2.5 mm Linear coil travel (p-p) 0.5 mm Moving mass incl. air, Mms 0.44 g Free air resonance, Fs 600 Hz Sensitivity (2.83 V / 1 m) 92 dB Mechanical Q-factor, Qms 2.0 Electrical Q-factor, Qes 1.24 Total Q-factor, Qts 0.77 Force factor, Bl 2.0 Tm Rated power handling* 80 W Magnetic flux density 1.0 T Magnet weight 0.22 kg Net weight 0.53 kg * IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

FILENAME ACTION
tw29r.pdf Download
