TW29TXN-B-8

6 left in stock

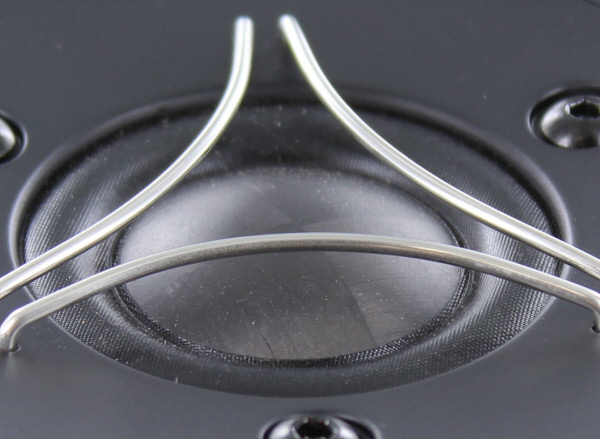

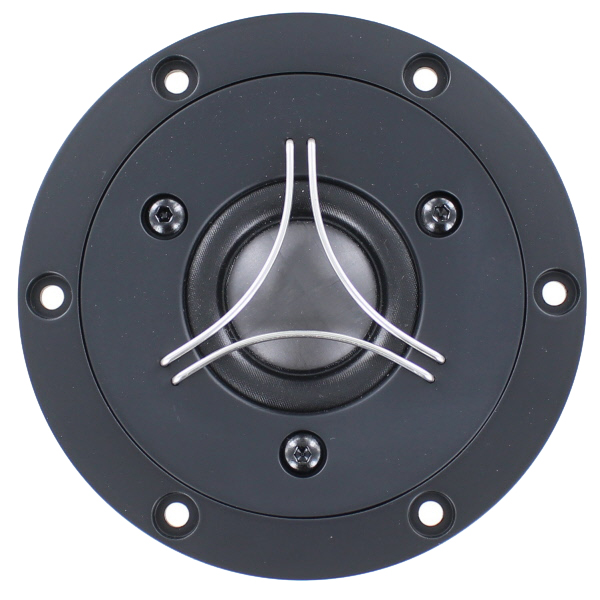

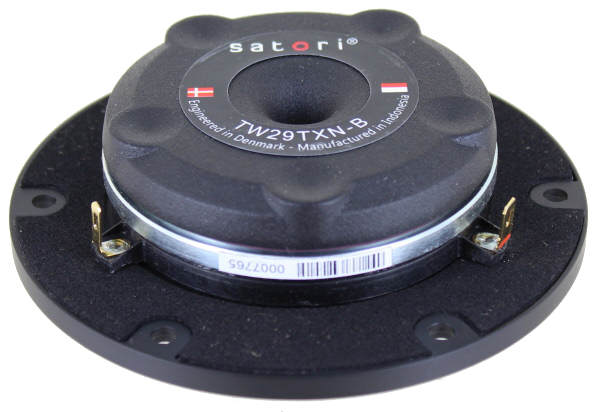

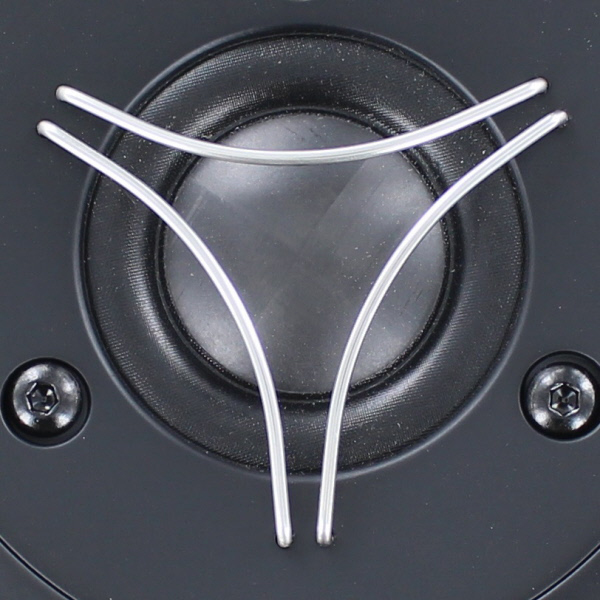

SSB ACOUSTICS SATORI, TW29TXN-B-8 29mm TEXTREME DOME NEODYMIUM TWEETER BLACK 8OHM
CA$365.85each
Product Specifications
Manufacturer SB ACOUSTICS
Tweeter Type Textreme Dome Neodymium Tweeter
Cone / Dome Diameter 29mm
Impedance 8 ohms
Power Handling (RMS) 80 W
Resonance Frequency 680 Hz
Sensitivity 93.5 dB

SB ACOUSTICS SATORI, TW29TXN-B-8 29mm TEXTREME DOME NEODYMIUM TWEETER BLACK 8OHM Features Advanced TeXtreme® dome Two part aluminium faceplate with integrated mechanical decoupling Dual balanced compression chambers for improved dynamics Dual copper caps for absolute minimum voice coil inductance and minimum phase shift High saturation neodymium motor system with T-shaped pole piece for lower distortion Non-reflective cast aluminium chamber with optimized damping for improved dynamics Shallow flow optimized magnet structure for optimum coupling to rear chamber CCAW voice coil for low moving mass Long life silver lead wires Low resonance frequency for extended range Specs Nominal Impedance 8 Ω DC resistance, Re 6.2 Ω Voice coil inductance, Le 0.04 mH Effective piston area, Sd 9.6 cm2 Voice coil diameter 29 mm Voice coil height 2.1 mm Air gap height 2.5 mm Linear coil travel (p-p) 0.4 mm Moving mass incl. air, Mms 0.49 g Free air resonance, Fs 680 Hz Sensitivity (2.83V/1m) 93.5 dB Mechanical Q-factor, Qms 1.63 Electrical Q-factor, Qes 0.77 Total Q-factor, Qts 0.52 Force factor, Bl 4.1 Tm Rated power handling* 80 W Magnetic flux density 1.5 T Magnet weight 0.1 kg Net weight 0.4 kg * IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

FILENAME ACTION
tw29txnb8.pdf Download
