SB12CACS25-4

5 left in stock

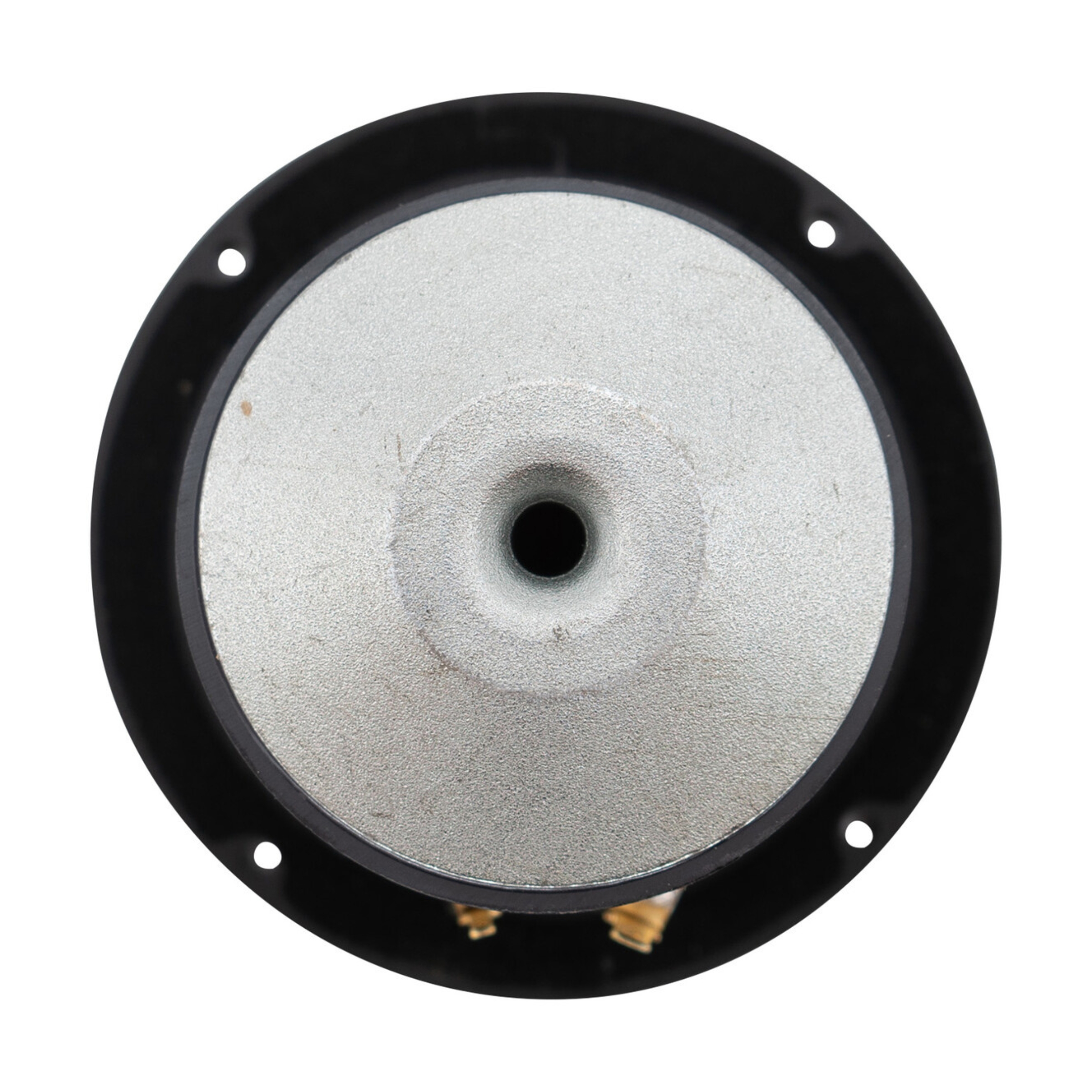

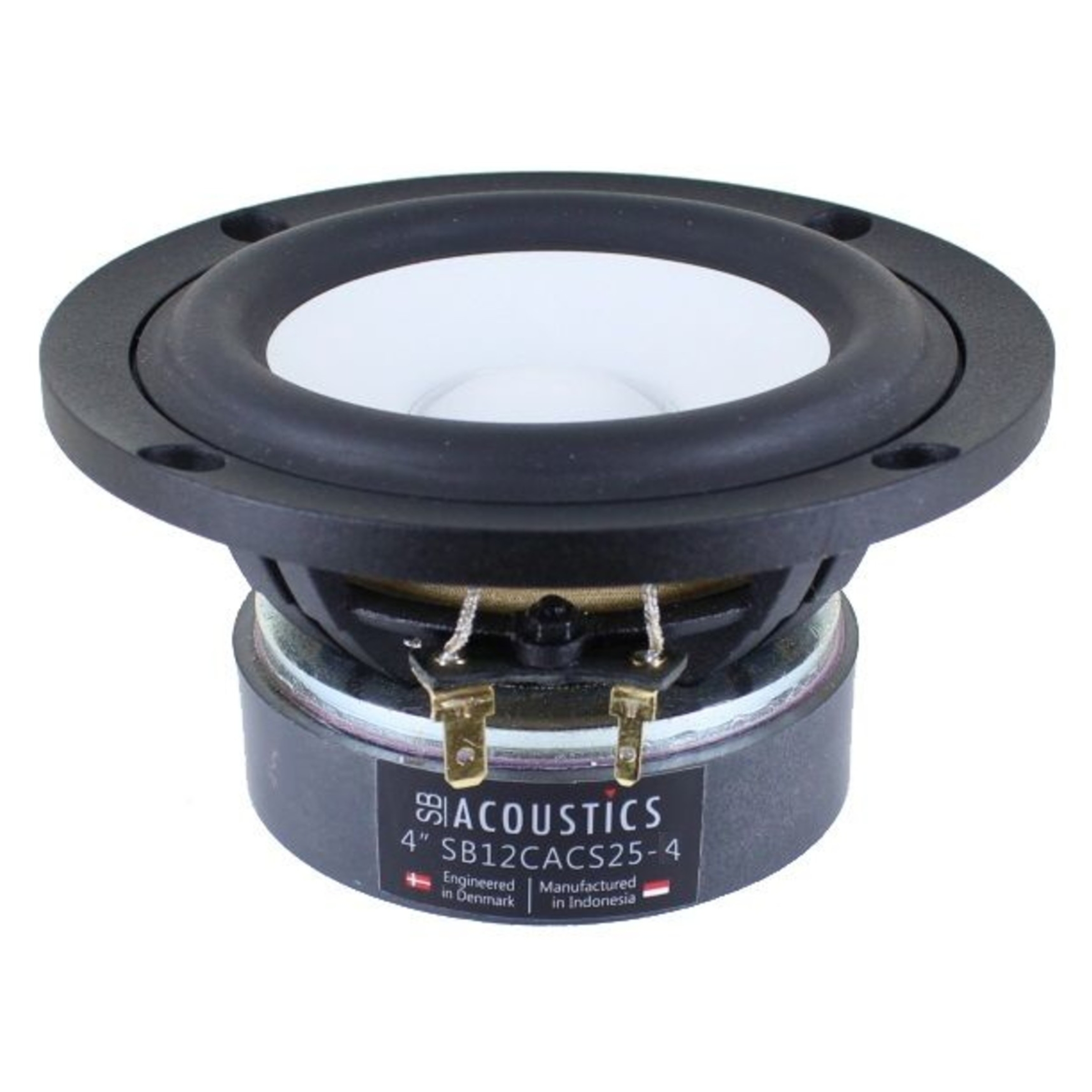

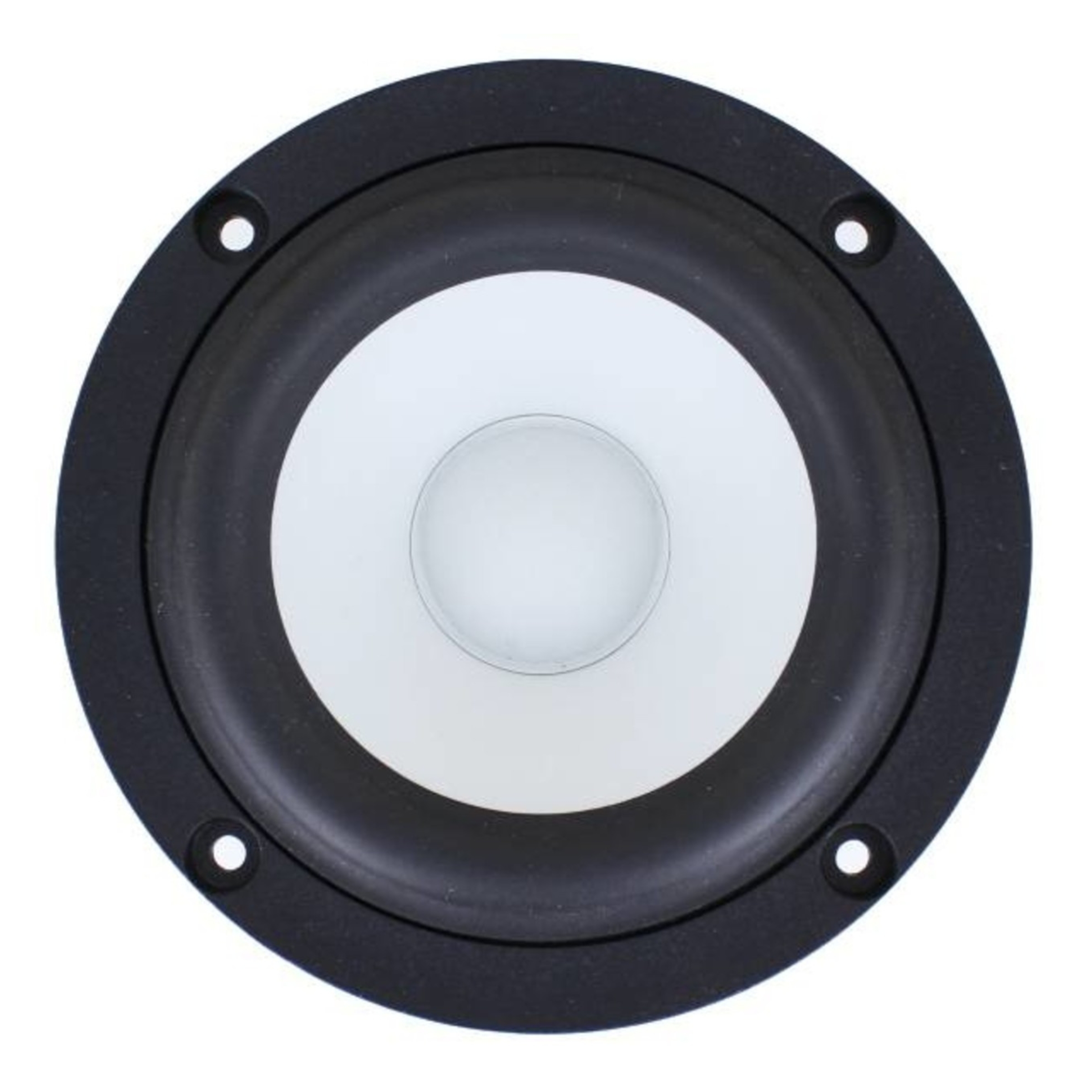

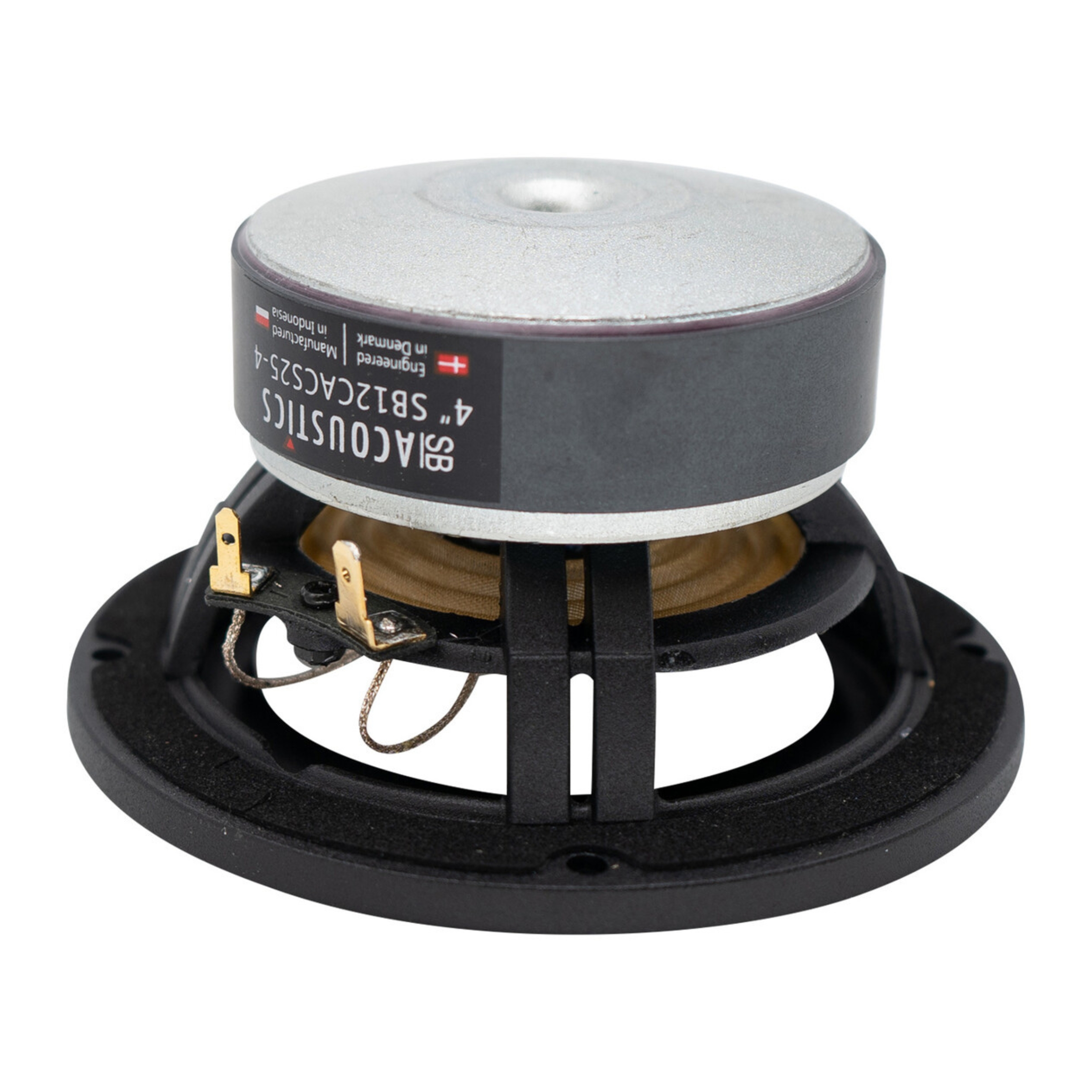

SB ACOUSTICS SB12CACS25-4, 12cm CERAMIC CONE WOOFER 4OHM
CA$100.93each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Ceramic Cone Midbass
Nominal Diameter 12cm
Impedance 4 ohms
Power Handling (RMS) 30 W
Frequency Response 51 Hz
Sensitivity 88 dB
Voice Coil Diameter 25mm

SB ACOUSTICS SB12CACS25-4, 12cm CERAMIC CONE WOOFER 4OHM Features Vented cast aluminum chassis for optimum strength and low compression Ceramic cone Soft low damping rubber surround for improved transient response Shorting ring in motor system for reduced distortion Non-conducting fibre glass voice coil former for minimum damping CCAW voice coil for reduced moving mass Long life silver lead wires Vented pole piece for reduced compression Specs Nominal Impedance 4 Ω DC resistance, Re 3.1 Ω Voice coil inductance, Le 0.26 mH Effective piston area, Sd 50 cm2 Voice coil diameter 25.4 mm Voice coil height 15 mm Air gap height 5 mm Linear coil travel (p-p) 10 mm Magnetic flux density 1.07 T Magnet weight 0.40 kg Net weight 0.92 kg Free air resonance, Fs 51 Hz Sensitivity (2.83 V / 1 m) 88 dB Mechanical Q-factor, Qms 4.89 Electrical Q-factor, Qes 0.33 Total Q-factor, Qts 0.31 Moving mass incl. air, Mms 6.1 g Force factor, Bl 4.3 Tm Equivalent volume, VAS 5.7 liters Compliance, Cms 1.60 mm/N Mechanical loss, Rms 0.4 kg/s Rated power handling* 30 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
sb12cacs254.pdf Download
