SB12MNRX225-4

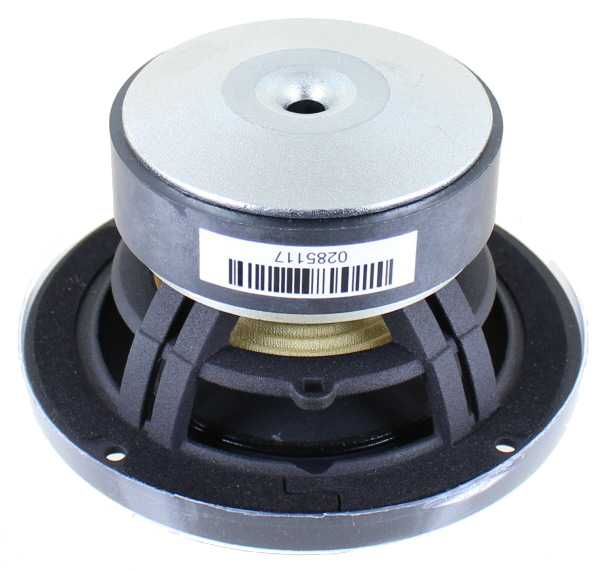

SB ACOUSTICS SB12MNRX225-4, 123mm (4.5in / 4-1/2in) PAPER CONE MIDRANGE, 4 ohm

SB ACOUSTICS SB12MNRX225-4, 12cm PAPER CONE MIDRANGE Features Proprietary cone material with natural fibres made in-house Shortened voice coil optimized for pure midrange reproduction High damping Butyl rubber surround for non-resonant sound character Vented pole piece for reduced compression Vented cast aluminium chassis for optimum strength and low compression CCAW voice coil for reduced moving mass Long life silver lead wires Non-conducting fibre glass coil former for minimum damping Specs Nominal Impedance 4 Ω DC resistance, Re 3.2 Ω Voice coil inductance, Le 0.15 mH Effective piston area, Sd 50 cm2 Voice coil diameter 25.4 mm Voice coil height 9.4 mm Air gap height 5 mm Linear coil travel (p-p) 4.4 mm Magnetic flux density 1.03 T Magnet weight 0.4 kg Net weight 0.92 kg Free air resonance, Fs 63.5 Hz Sensitivity (2.83V/1m) 90.5 dB Mechanical Q-factor, Qms 4.19 Electrical Q-factor, Qes 0.35 Total Q-factor, Qts 0.32 Moving mass incl. air,Mms 4.2 g Force factor, Bl 3.9 Tm Equivalent volume, Vas 5.3 liters Compliance, Cms 1.5 mm/N Mechanical loss, Rms 0.4 kg/s Rated power handling* 50 W * IEC 268-5, T/S parameters measured on drive units that are broken in.
