SB12NRX25-8

2 left in stock

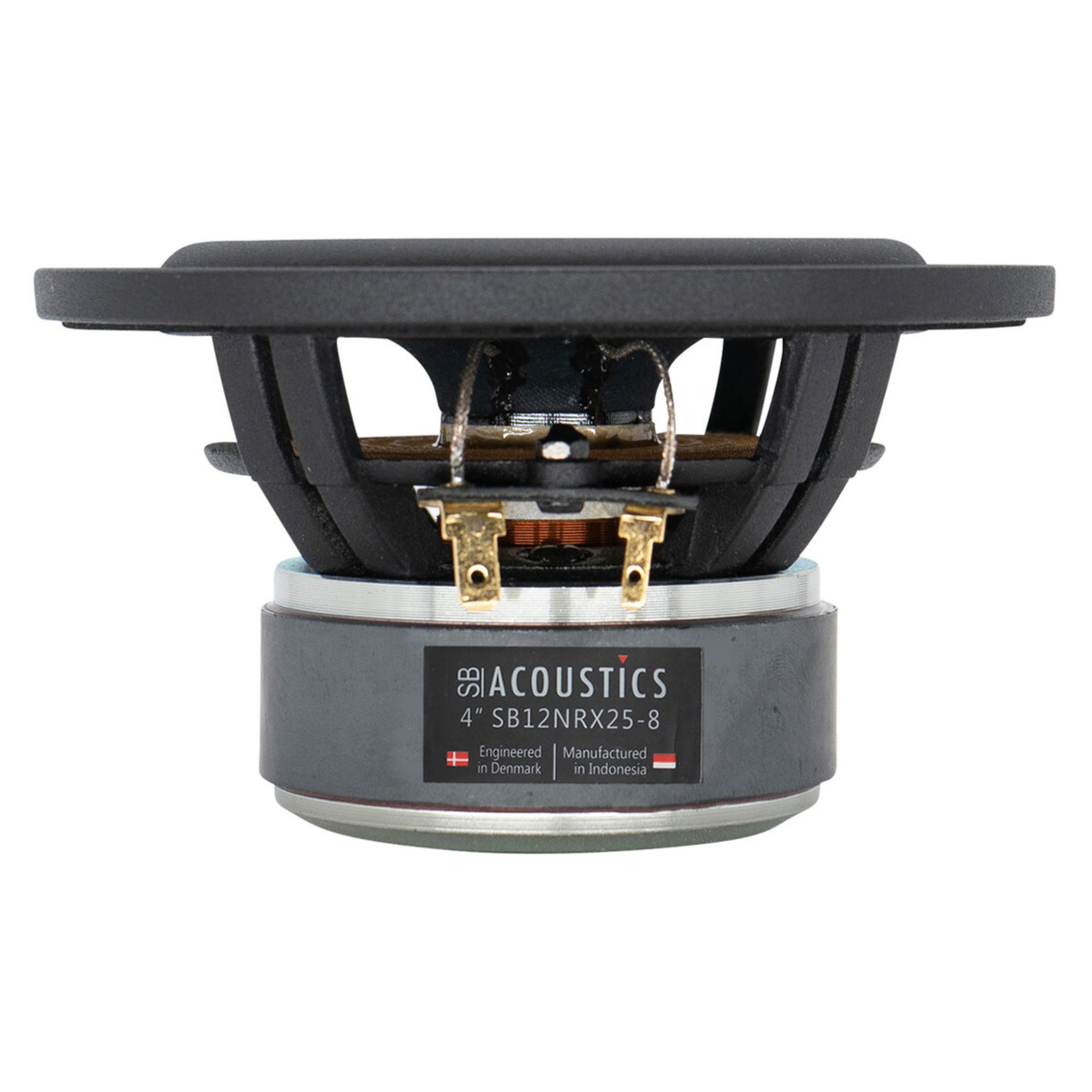

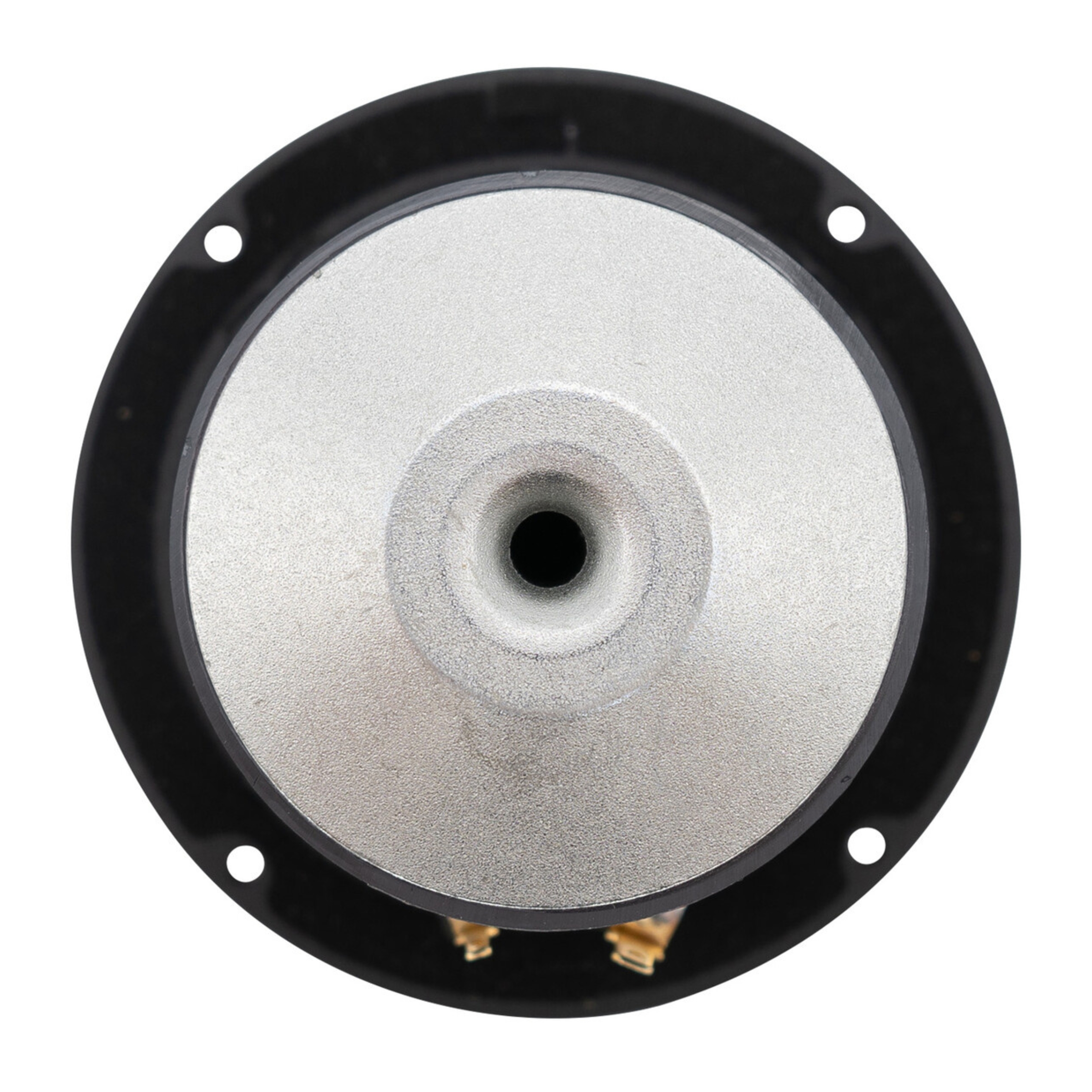

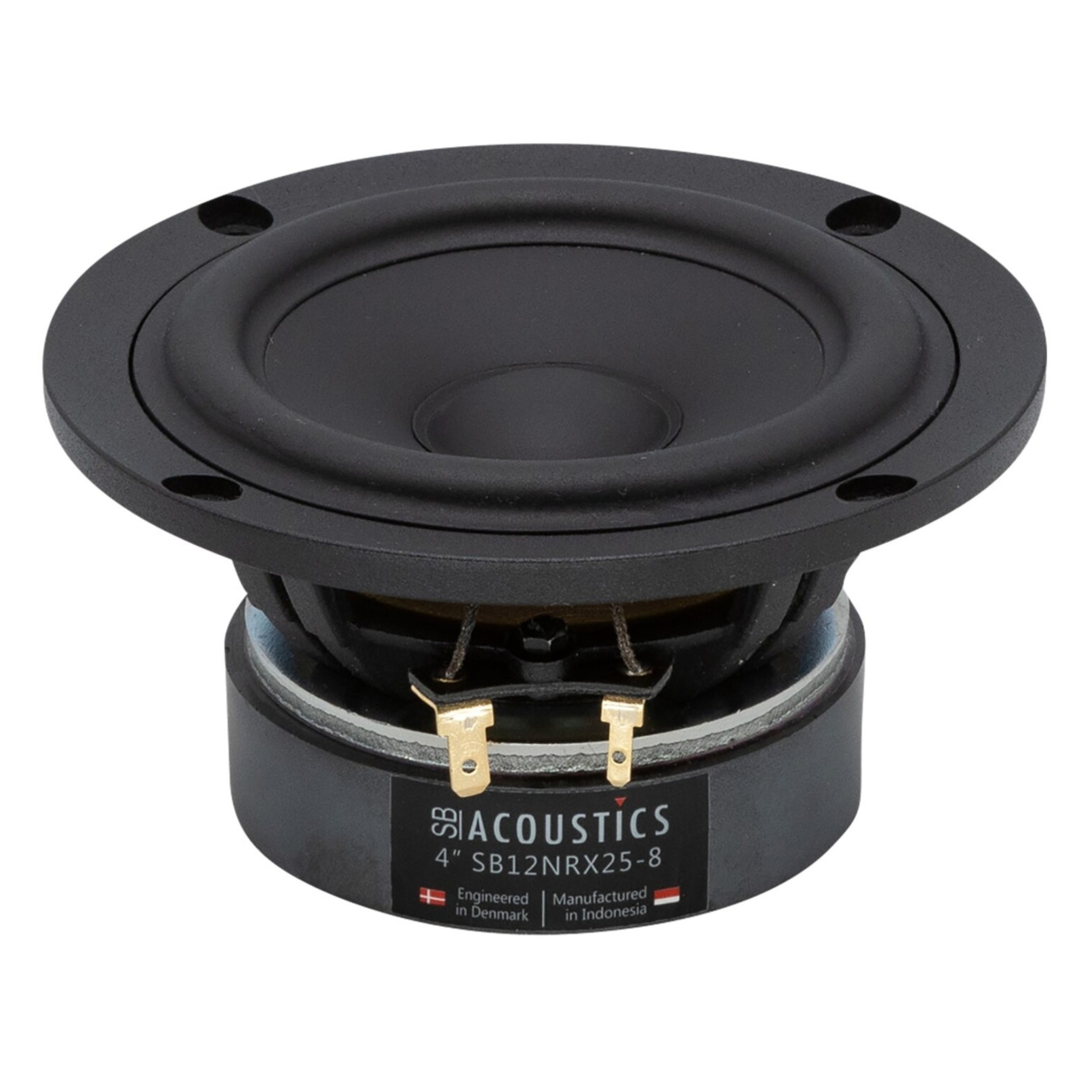

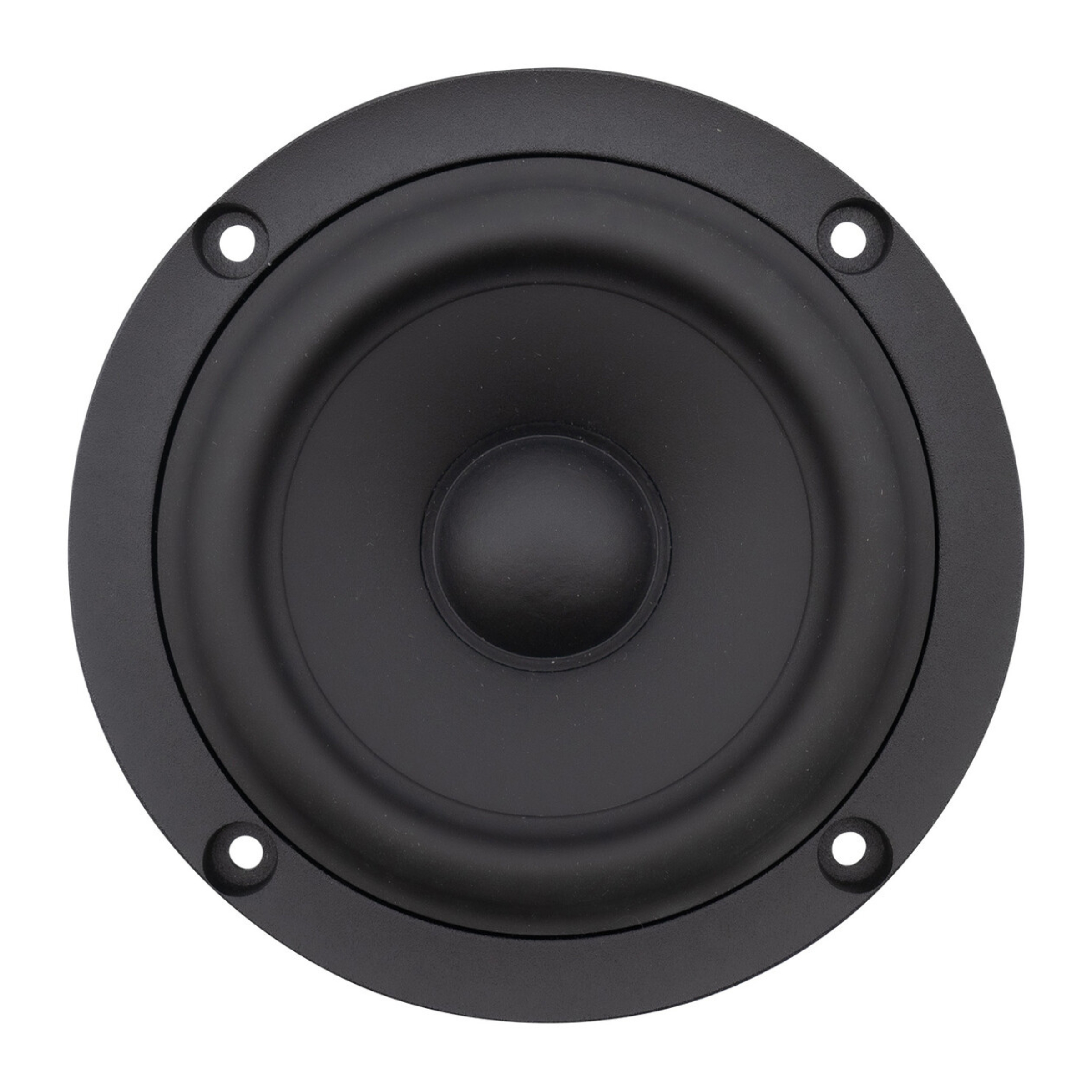

SB ACOUSTICS SB12NRX25-8, 12cm NOREX PAPER CONE MIDWOOFER 8OHM
CA$80.21each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Paper Cone Midbass
Nominal Diameter 12cm
Impedance 8 ohms
Power Handling (RMS) 30 W
Frequency Response 57 Hz
Sensitivity 85.5 dB
Voice Coil Diameter 25mm

SB ACOUSTICS SB12NRX25-8, 12cm NOREX PAPER CONE MIDWOOFER 8OHM Features Proprietary cone material with natural fibres made in-house High damping Butyl rubber surround for non-resonant sound character Vented pole piece for reduced compression Vented cast aluminium chassis for optimum strength and low compression CCAW voice coil for reduced moving mass Long life silver lead wires Non-conducting fibre glass coil former for minimum damping Specs Nominal Impedance 8 Ω DC resistance, Re 6.4 Ω Voice coil inductance, Le 0.34 mH Effective piston area, Sd 50 cm2 Voice coil diameter 25.4 mm Voice coil height 15 mm Air gap height 5 mm Linear coil travel (p-p) 10 mm Magnetic flux density 1.07 T Magnet weight 0.40 kg Net weight 0.92 kg Free air resonance, Fs 57 Hz Sensitivity (2.83 V / 1 m) 85.5 dB Mechanical Q-factor, Qms 4.1 Electrical Q-factor, Qes 0.41 Total Q-factor, Qts 0.37 Moving mass incl. air, Mms 5.2 g Force factor, Bl 5.4 Tm Equivalent volume, VAS 5.3 liters Compliance, Cms 1.49 mm/N Mechanical loss, Rms 0.45 kg/s Rated power handling* 30 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
sb12nrx258.pdf Download
