SB14ST-C000-4
- SB14ST-C000-4
- SB ACOUSTICS

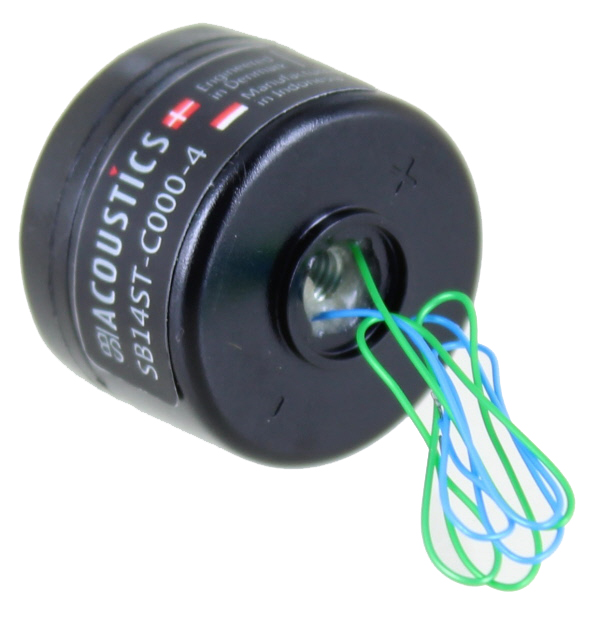

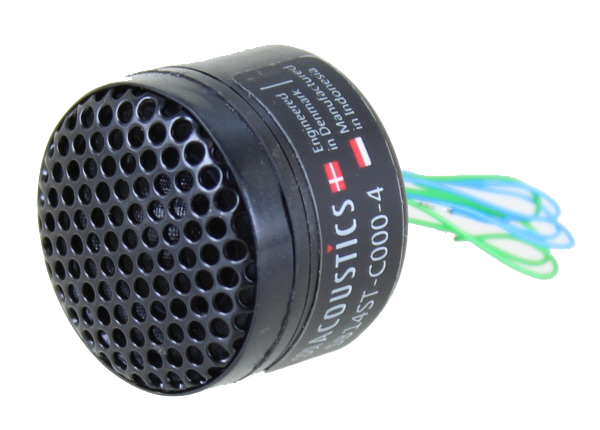

SB ACOUSTICS SB14ST-C000-4, 12mm (0.5in / 1/2in) TEXTILE DOME TWEETER, 24mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SB ACOUSTICS |
| Tweeter Type | Textile Dome Tweeter |
| Cone / Dome Diameter | 12mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 10 W |
| Resonance Frequency | 1300 Hz |
| Sensitivity | 87 dB |
SB ACOUSTICS SB14ST-C000-4, 12mm TEXTILE DOME TWEETER Features Very compact design Excellent piston diameter to OD ratio Large surround for smooth dispersion Threaded rear center hole for easy mounting Long insulated lead wires for versatile integration Specs Nominal Impedance 4 Ω DC resistance, Re 3.0 Ω Voice coil inductance, Le – mH Effective piston area, Sd – cm2 Voice coil diameter 12.4 mm Voice coil height 1.2 mm Air gap height 1.5 mm Linear coil travel (p-p) 0.3 mm Moving mass incl. air, Mms – Free air resonance, Fs 1300 Hz Sensitivity (2.83V/1m) 87 dB Mechanical Q-factor, Qms – Electrical Q-factor, Qes – Total Q-factor, Qts – Force factor, Bl – Tm Rated power handling* 10 W Magnetic flux density 0.97 T Magnet weight 3.4 g Net weight 0.014 kg *IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct
Replacement Tweeter for : SB12PACR25-4-COAX, SB12PFC25-4-COAX, SB12PFCR25-4-COAX, SB13PFC25-4-COAX, SB13PFCR25-4-COAX, SB16PFC25-4-COAX and SB16PFCR25-4-COAX.
| FILENAME | ACTION |
|---|---|
| sb14stc0004.pdf | Download |
