SB17MFC35-8

(0)
17 left in stock

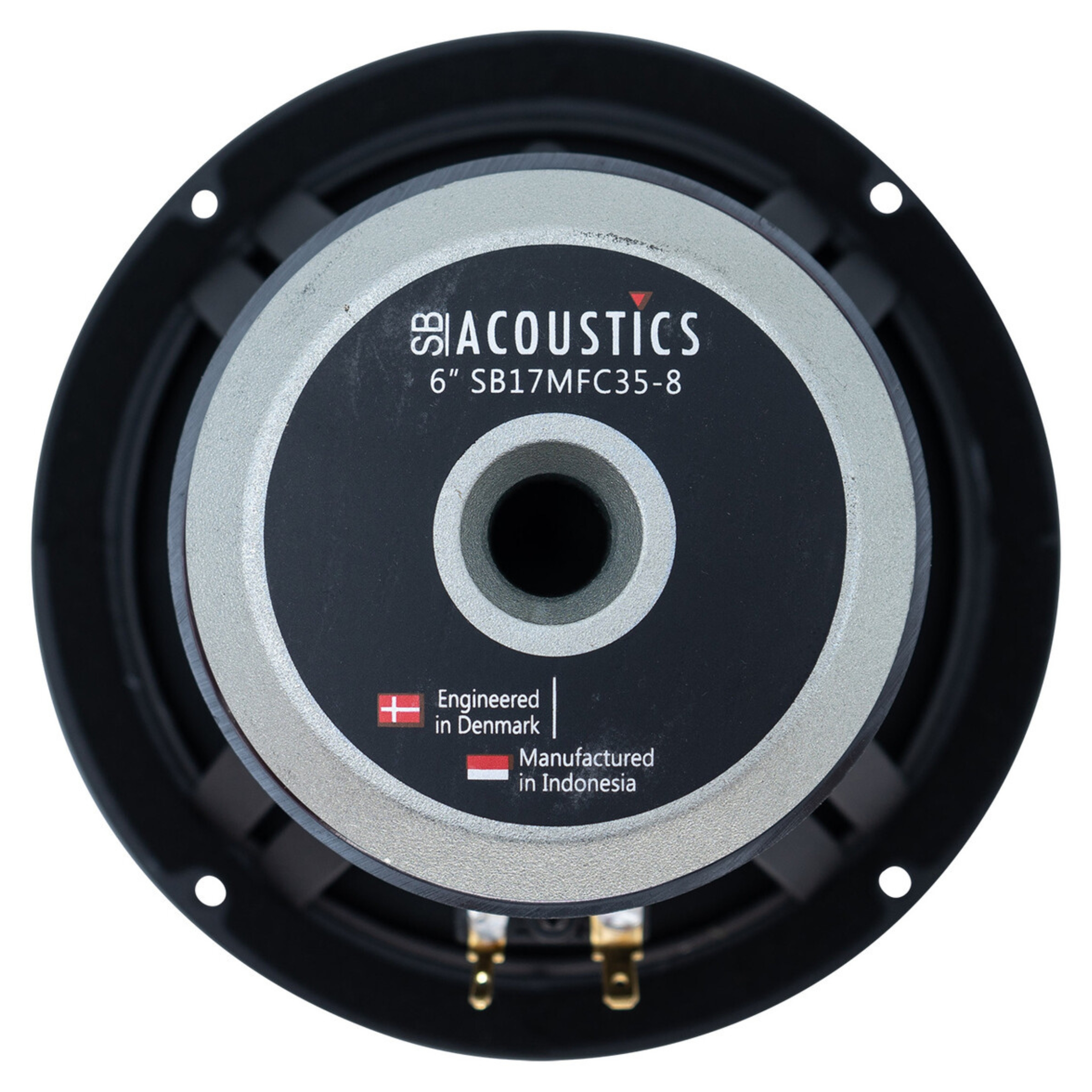

SB ACOUSTICS SB17MFC35-8, 17cm POLYPROPYLENE CONE MIDWOOFER 8OHM
CA$59.00 Each CA$104.28
Choose another model
  • Choose another model
  • 10A772510 CA$1,283.31Each
  • 18W/4434G00 CA$133.08Each
  • 18W/4424G00 CA$119.50Each
  • 18W/4531G00 CA$336.78Each
  • 18W/8424G00 CA$119.50Each
  • 18W/8434G00 CA$133.08Each
  • 18W/8531G00 CA$336.78Each
  • 18W/8545K CA$296.04Each
  • 18W/8545-01 CA$296.04Each
  • 18WU/4741T00 CA$554.06Each
  • 18WU/8741T00 CA$554.06Each
  • 18WU/8747T00 CA$513.32Each
  • 22W/4534G00 CA$173.82Each
  • 22W/4851T00 CA$543.20Each
  • 22W/8534G00 CA$173.82Each
  • 22W/8851T00 CA$543.20Each
  • 22W/8857T00 CA$521.47Each
  • 25W/8565-00 CA$401.97Each
  • 25W/8565-01 CA$401.97Each
  • 26W/4534G00 CA$199.00 Each CA$274.32
  • 26W/4867T00 CA$581.22Each
  • 26W/8534G00 CA$274.32Each
  • 26W/8861T00 CA$619.25Each
  • 26W/8867T00 CA$581.22Each
  • 5H521506 CA$731.96Each
  • 6H521706 CA$998.13Each
  • 8I522008 CA$1,131.21Each
  • A26RE408 CA$362.04Each
  • AL170 CA$283.41Each
  • AL200 CA$315.92Each
  • 15E1022510 CA$1,948.73Each
  • 12B772510 CA$1,416.39Each
  • B15 CA$1,196.89Each
  • B15EX CA$2,608.14Each
  • B220.208 CA$305.02Each
  • B250.808 CA$315.24Each
  • B2500.108 CA$477.12Each
  • CA18RLY08 CA$173.88Each
  • CA18RNX08 CA$197.12Each
  • CA22RNX08 CA$212.52Each
  • CA22RNY08 CA$306.32Each
  • CA26RE4X08 CA$383.04Each
  • CA26RFX08 CA$434.84Each
  • CAW638 CA$318.67Each
  • CAW938 CA$341.28Each
  • CD22RN4X08 CA$258.16Each
  • D6.8 CA$168.70Each
  • D8.8 CA$347.83Each
  • D8.8+ CA$324.46Each
  • DA175-8 CA$56.40Each
  • DA215-8 CA$75.54Each
  • DC160-4 CA$45.25Each
  • DC160-8 CA$43.66Each
  • DC160S-8 CA$63.82Each
  • DC200-8 CA$50.83Each
  • DC300-8 CA$87.34Each
  • DC380-8 CA$152.64Each
  • DS175-8 CA$68.42Each
  • DS215-8 CA$87.34Each
  • DC250-8 CA$65.50Each
  • DS270-8 CA$128.11Each
  • DS315-8 CA$160.14Each
  • ER18RNX08 CA$211.68Each
  • F6 CA$59.00 Each CA$74.87
  • FW168 CA$68.44Each
  • FW305 CA$579.25Each
  • GF200 CA$250.38Each
  • HM170C0 CA$181.95Each
  • HM210C0 CA$242.86Each
  • L16RNX04 CA$130.00 Each CA$200.76
  • L16RNX08 CA$188.72Each
  • L18RNX/P08 CA$110.00 Each CA$185.08
  • L6-6R CA$64.62Each
  • MW166 CA$262.01Each
  • MW16P-8 CA$270.68Each
  • MW16P-4 CA$270.68Each
  • RS180-4 CA$92.99Each
  • RS180-8 CA$92.99Each
  • RS180P-4 CA$111.37Each
  • RS180P-8 CA$95.90Each
  • RS225-4 CA$112.92Each
  • RS225-8 CA$112.77Each
  • RS270-8 CA$189.29Each
  • FW800HS CA$7,678.13Each
  • RV314308 CA$681.60Each
  • RV386308 CA$937.20Each
  • RV456408 CA$1,226.88Each
  • SB15MFC30-4 CA$92.46Each
  • SB15MFC30-8 CA$92.46Each
  • SB17MFC35-4 CA$104.28Each
  • SB17NAC35-4 CA$64.00 Each CA$125.24
  • SB17NAC35-8 CA$64.00 Each CA$125.24
  • SB29NRX75-6 CA$245.93Each
  • SB34NRX75-6 CA$279.35Each
  • SB34NRXL75-8 CA$399.74Each
  • SCW636 CA$730.97Each
  • TIW300 CA$640.82Each
  • U16RCY/P08 CA$204.68Each
  • U18RNX/P08 CA$256.76Each
  • U22REX/P-SL CA$294.56Each
  • W16NX00104 CA$633.08Each
  • W16NX00108 CA$425.00 Each CA$648.48
  • W17RC3804 CA$62.54Each
  • W17RC3808 CA$62.54Each
  • W18E001 CA$648.48Each
  • W18EX001 CA$658.00Each
  • W18NX001 CA$285.00 Each CA$432.60
  • W20RC3804 CA$81.69Each
  • W20RC3808 CA$81.69Each
  • W22EX001 CA$724.36Each
  • W22NY001 CA$309.00 Each CA$526.68
  • W26FX001 CA$943.04Each
  • W26FX002 CA$819.28Each
  • W6-1721 CA$187.14Each
  • W808 CA$1,106.34Each
  • WF090WA01 CA$86.10Each
  • WF090WA02 CA$86.10Each
  • WF182BD03 CA$129.00 Each CA$239.40
  • WF182BD04 CA$129.00 Each CA$239.40
  • WF182BD09 CA$227.92Each
  • WF182BD10 CA$222.88Each
  • WS17E CA$44.75Each
  • MW19P-4 CA$307.30Each
  • MW19P-8 CA$307.30Each
  • SB23NACS45-8 CA$165.58Each
  • SB23NRXS45-8 CA$89.00 Each CA$141.59
  • LW150-4 CA$71.57Each
  • WF223BD01 CA$169.00 Each CA$286.13
  • WF223BD02 CA$169.00 Each CA$287.70
  • C220-6-221 CA$880.47Each
  • C220-11-221 CA$902.97Each
  • S220-6-221 CA$793.27Each
  • S220-6-222 CA$1,631.54Each
  • AS190-9-251 CA$1,735.62Each
  • AS250-8-552 CA$2,506.38Each
  • 18W/8535-01 CA$279.75Each
  • 21W/8555-10 CA$391.10Each
  • 32W/4878T01 CA$958.75Each
  • 32W/8878T01 CA$958.75Each
  • SB17CRC35-4 CA$162.50Each
  • SB17CRC35-8 CA$162.50Each
  • SB17NBAC35-8 CA$125.24Each
  • SB17NBAC35-4 CA$125.24Each
  • SB23NBACS45-8 CA$165.58Each
  • MW16PNW-4 CA$270.68Each
  • MW16PNW-8 CA$270.68Each
  • WO24P-8 CA$370.05Each
  • GBS135F25AL0204 CA$25.00 Each CA$44.72
  • DSA175-8 CA$72.40Each
  • DSA215-8 CA$92.18Each
  • DSA270-8 CA$175.60Each
  • DSA315-8 CA$172.13Each
  • RS225P-4A CA$114.35Each
  • RS225P-8A CA$116.75Each
  • RS270-4 CA$189.29Each
  • RS270P-4A CA$182.51Each
  • 689-1012 CA$339.92Each
  • 689-1220 CA$369.02Each
  • SB23NACS45-4 CA$94.00 Each CA$165.58
  • SB23NBACS45-4 CA$165.58Each
  • MW19PNW-4 CA$307.30Each
  • MW19PNW-8 CA$307.30Each
  • AS168-9-470 CA$1,046.44Each
  • SB17CAC35-4 CA$156.03Each
  • SB17CAC35-8 CA$156.03Each
  • SB23CACS45-4 CA$191.25Each
  • SB23CACS45-8 CA$191.25Each
  • SB23NRXS45-4 CA$141.59Each
  • WO24P-4 CA$370.05Each
  • UR151B4-LJ14M CA$49.00 Each CA$104.29
  • WS13E CA$34.90Each
  • WS20E CA$54.14Each
  • WF130ND CA$190.26Each
  • W130X CA$92.79Each
  • SB17NRX2C35-4 CA$105.28Each
  • SB17NRX2C35-8 CA$105.28Each
  • SB34NRX75-16 CA$295.64Each
  • 18WU/4747T00 CA$513.32Each
  • L16RNX3 CA$289.80Each
  • W16NX003 CA$781.76Each
  • W19NX001 CA$1,008.28Each
  • 32W/4878T11 CA$1,064.67Each
  • 32W/8878T11 CA$1,064.67Each
  • 18W/8542-10 CA$315.06Each
  • 28W/4878T01 CA$907.14Each
  • 28W/8878T01 CA$907.14Each
  • SB16PFCR25-4 CA$36.08Each
  • SB16PFCR25-8 CA$36.08Each
  • SB20PFCR30-4 CA$47.73Each
  • SB20PFCR30-8 CA$47.73Each
  • SB29NRX75-8 CA$245.93Each
  • L19RNX1 CA$411.04Each
  • MW16TX-4 CA$465.42Each
  • MW16TX-8 CA$465.42Each
  • PTT6.5X04-NFA-01 CA$621.18Each
  • PTT6.5X08-NFA-01 CA$439.00 Each CA$621.18
  • W22NX001 CA$937.86Each
  • MW19TX-4 CA$539.95Each
  • MW19TX-8 CA$539.95Each
  • 38WE/8582T00 CA$2,134.78Each
  • WF275BD01 CA$342.22Each
  • WF275BD02 CA$342.22Each
  • W18NX003 CA$633.50Each
  • W18EX003 CA$842.66Each
  • MW16-GRILL CA$31.24Pair
  • MW19-GRILL CA$32.14Pair
  • WO24-GRILL CA$42.92Pair
  • GF180-4 CA$39.96Each
  • GF180-8 CA$39.96Each
  • PTT6.5W04-NFA-01 CA$621.18Each
  • PTT6.5W08-NFA-01 CA$621.18Each
  • PTT6.5X04-NAA-08 CA$683.82Each
  • PTT6.5X08-NAA-08 CA$683.82Each
  • WOM165_vMS-8 CA$178.85Each
  • WOM165_vHE-8 CA$459.62Each
  • PTT8.0X04-NAB-02 CA$997.02Each
  • PTT8.0X08-NAB-02 CA$997.02Each
  • SB26SFCL38-4 CA$120.57Each
  • SB26SFCL38-8 CA$120.57Each
  • WO24TX-4 CA$634.65Each
  • WO24TX-8 CA$634.65Each
  • KT100V CA$42.75Each
  • W100X CA$85.95Each
  • SIG180-4 CA$69.92Each
  • RC180-55 CA$98.58Each
  • RV250108 CA$528.24Each
  • SIG225-4 CA$102.39Each
  • SIG270-4 CA$165.18Each
  • W22NY003 CA$905.38Each
  • SB17NRXC35-8-UC CA$65.00 Each CA$105.28
  • P17REX-VER CA$100.00 Each CA$173.88
  • T18RE/DD CA$100.00 Each CA$173.88
  • PTT10.0X04-NAB-02 CA$1,255.41Each
  • SEAS P21RFX/P08 CA$109.00 Each CA$212.52
  • 6PF-8 CA$17.97Each
  • 8PF-8 CA$19.33Each
  • 10PF-8 CA$22.80Each
  • 12PF-8 CA$27.65Each
  • 15PF-8 CA$51.17Each
  • 6PR-8 CA$18.66Each
  • 8PR-8 CA$20.72Each
  • 10PR-8 CA$29.10Each
  • 12PR-8 CA$34.93Each
  • A25-10 CA$125.16Each
  • RSRMO-8 CA$169.04Each
  • 10SFPC-B CA$32.81Each
  • 10SFPC-W CA$31.73Each
  • 12SFPC-B CA$41.39Each
  • 12SFPC-W CA$41.39Each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Polypropylene Cone Woofer
Nominal Diameter 17cm
Impedance 8 ohms
Power Handling (RMS) 60 W
Frequency Response 33 Hz
Sensitivity 88 dB
Voice Coil Diameter 35mm

SB ACOUSTICS SB17MFC35-8, 17cm POLYPROPYLENE CONE MIDWOOFER 8OHM Features Vented cast aluminum chassis for optimum strength and low compression Mineral filled PP-cone made in-house Soft low damping rubber surround for improved transient response Non-conducting fibre glass voice coil former for minimum damping Extended copper sleeve on pole piece for low inductance and low distortion CCAW voice coil for reduced moving mass Long life silver lead wires Vented pole piece for reduced compression Specs Nominal Impedance 8 Ω DC resistance, Re 5.7 Ω Voice coil inductance, Le 0.15 mH Effective piston area, Sd 118 cm2 Voice coil diameter 35.5 mm Voice coil height 16 mm Air gap height 5 mm Linear coil travel (p-p) 11 mm Magnetic flux density 1.0 T Magnet weight 0.54 kg Net weight 1.56 kg Free air resonance, Fs 33 Hz Sensitivity (2.83 V / 1 m) 88 dB Mechanical Q-factor, Qms 4.9 Electrical Q-factor, Qes 0.40 Total Q-factor, Qts 0.37 Moving mass incl. air, Mms 11.8 g Force factor, Bl 5.9 Tm Equivalent volume, VAS 39 liters Compliance, Cms 1.97 mm/N Mechanical loss, Rms 0.5 kg/s Rated power handling* 60 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
sb17mfc358.pdf Download
