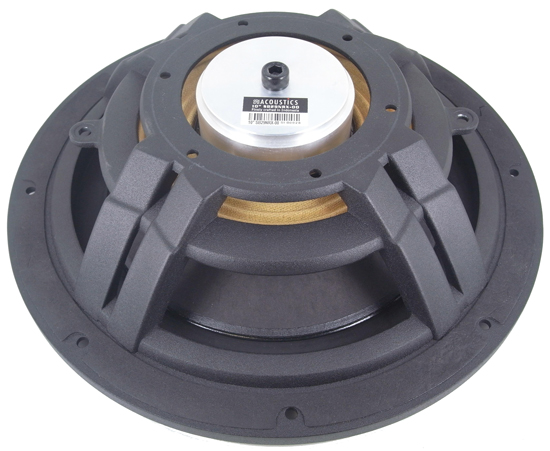

SB ACOUSTICS SB29NRX-00, 290mm (11in) NOREX PAPER CONE PASSIVE RADIATOR

Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Passive Radiator
Nominal Diameter 29cm
Impedance - ohms
Power Handling (RMS) - W
Frequency Response - Hz
Sensitivity - dB
Voice Coil Diameter -mm

SB ACOUSTICS SB29NRX-00, 29cm NOREX PAPER CONE PASSIVE RADIATOR Features Hard paper cone for improved piston operation (made in-house) Cast aluminium chassis for optimum strength Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability Easily adjustable moving mass Specs Effective piston area, Sd 312 cm2 Free air resonance, Fs 10.2 Hz Compliance, Cms 0.48 mm/N Moving mass incl. air,Mms 505 g Mechanical loss, Rms 3 kg/s Mechanical Q-factor, Qms 10.8 Equivalent volume, Vas 66 liters Net weight 1.75 kg Max Mechanical Cone Excursion, Xmech ±17 mm T/S parameters measured on drive units that are broken in. Parameters apply with the pre-mounted DW50 in place.

FILENAME ACTION
sb29nrx00.pdf Download
