The highest quality speaker driver units that you can find.

SB34NRX-00

4 left in stock

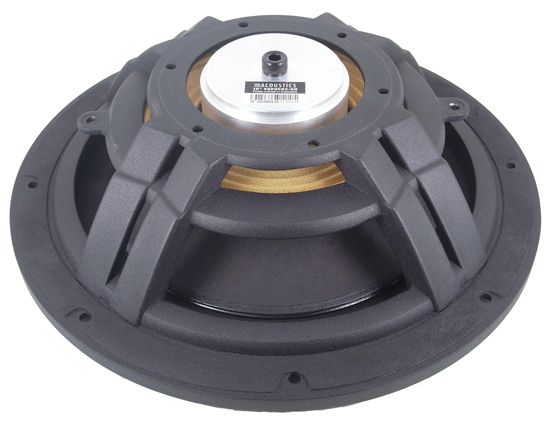

SB ACOUSTICS SB34NRX-00, 34cm NOREX PAPER CONE PASSIVE RADIATOR
CA$172.34each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Passive Radiator
Nominal Diameter 34cm
Impedance - ohms
Power Handling (RMS) - W
Frequency Response - Hz
Sensitivity - dB
Voice Coil Diameter -mm

SB ACOUSTICS SB34NRX-00, 34cm NOREX PAPER CONE PASSIVE RADIATOR Features Hard paper cone for improved piston operation (made in-house) Cast aluminium chassis for optimum strength Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability Easily adjustable moving mass Specs Effective piston area, Sd 508 cm2 Free air resonance, Fs 8.7 Hz Compliance, Cms 0.5 mm/N Moving mass incl. air,Mms 665 g Mechanical loss, Rms 3 kg/s Mechanical Q-factor, Qms 12.1 Equivalent volume, Vas 183 liters Net weight 2.45 kg Max Mechanical Cone Excursion, Xmech ±17 mm T/S parameters measured on drive units that are broken in. Parameters apply with the pre-mounted DW50 in place.

FILENAME ACTION
sb34nrx00.pdf Download
