SB34NRX75-16

4 left in stock

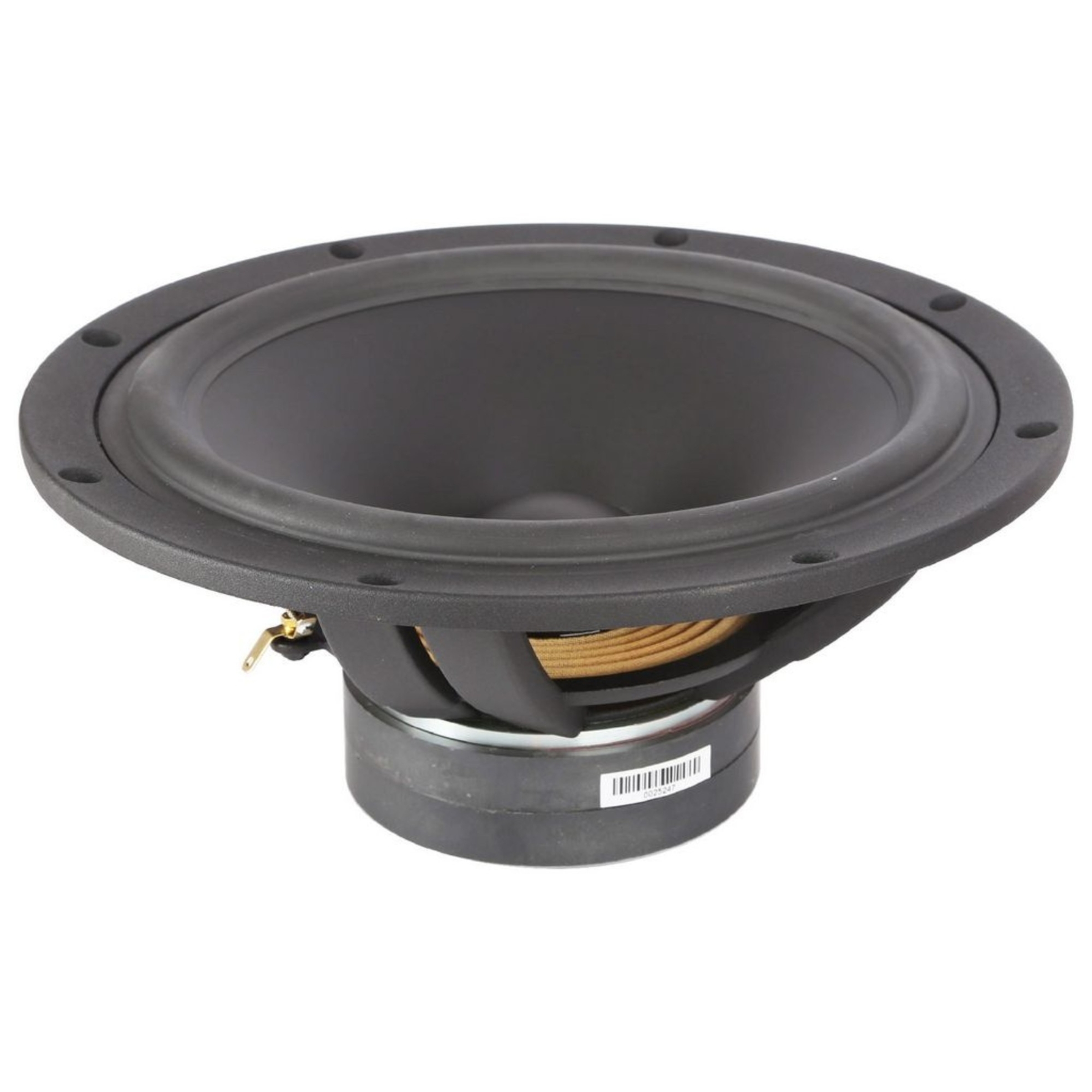

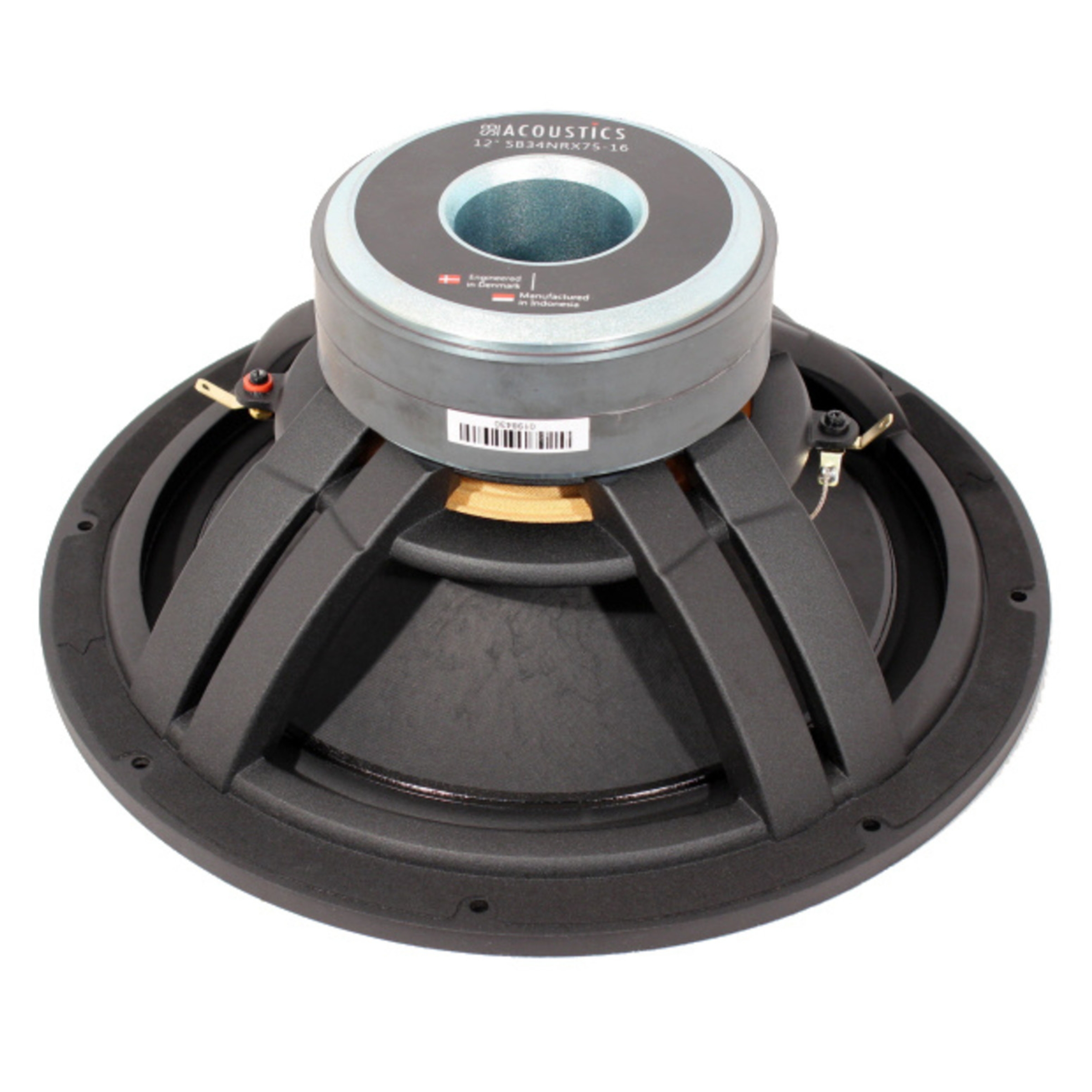

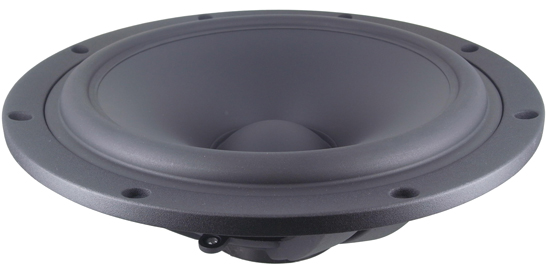

SB ACOUSTICS SB34NRX75-16, 34cm NOREX PAPER CONE OPEN BAFFLE WOOFER 16OHM
CA$274.51each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Paper Cone Woofer
Nominal Diameter 34cm
Impedance 16 ohms
Power Handling (RMS) 100 W
Frequency Response 25 Hz
Sensitivity 86 dB
Voice Coil Diameter 76mm

SB ACOUSTICS SB34NRX75-16, 34cm NOREX PAPER CONE OPEN BAFFLE WOOFER 16OHM Features Designed for open baffle High flow venting center pole 3″ CCAW voice coil Low dampening surround Non-inductive voice coil former Proprietary cone materials made-in-house Cast Aluminium chassis Specs Nominal Impedance 16 Ω DC resistance, Re 14.0 Ω Voice coil inductance, Le 3.2 mH Effective piston area, Sd 508 cm2 Voice coil diameter 75.6 mm Voice coil height 28 mm Air gap height 6 mm Linear coil travel (p-p) 22 mm Magnetic flux density 0.9 T Magnet weight 2.1 kg Net weight 6.0 kg Free air resonance, Fs 25 Hz Sensitivity (2.83V/1m) 86 dB Mechanical Q-factor, Qms 6.65 Electrical Q-factor, Qes 0.80 Total Q-factor, Qts 0.71 Moving mass incl. air,Mms 72 g Force factor, Bl 14.1 Tm Equivalent volume, Vas 205 liters Compliance, Cms 0.56 mm/N Mechanical loss, Rms 1.7 kg/s Rated power handling* 120 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
sb34nrx7516.pdf Download
