The highest quality speaker driver units that you can find.

SB42FHCL75-6

2 left in stock

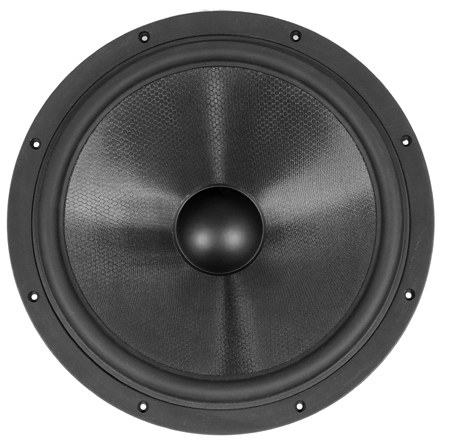

SB ACOUSTICS SB42FHCL75-6, 42cm PAPER FIBER CONE SUBWOOFER 6OHM
CA$581.33each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Paper Fiber Glass Cone Subwoofer
Nominal Diameter 42cm
Impedance 6 ohms
Power Handling (RMS) 300 W
Frequency Response 18-600 Hz
Sensitivity 93 dB
Voice Coil Diameter 76mm

SB ACOUSTICS SB42FHCL75-6, 42cm PAPER FIBER CONE SUBWOOFER 6OHM Features Light weight rigid honeycomb cone (hard paper honeycomb with fiber glass skin layers) 3″ copper voice coil for improved power handling Long life silver lead wires Vented pole piece for minimum compression Vented cast aluminum chassis for optimum strength and low compression Low damping rubber surround for improved dynamic linearity Non-conducting fiber glass voice coil former for minimum damping Large motor system Specs Nominal Impedance 6 Ω DC resistance, Re 4.6 Ω Voice coil inductance, Le 2.1 mH Effective piston area, Sd 850 cm2 Voice coil diameter 75.6 mm Voice coil height 31 mm Air gap height 8 mm Linear coil travel (p-p) 23 mm Magnetic flux density 1.1 T Magnet weight 3.6 kg Net weight 10.2 kg Free air resonance, Fs 18.4 Hz Sensitivity (2.83V/1m) 93 dB Mechanical Q-factor, Qms 7.4 Electrical Q-factor, Qes 0.32 Total Q-factor, Qts 0.31 Moving mass incl. air,Mms 166 g Force factor, Bl 16.7 Tm Equivalent volume, Vas 462 liters Compliance, Cms 0.45 mm/N Mechanical loss, Rms 2.6 kg/s Rated power handling* 300 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
sb42fhcl756.pdf Download
