R3004/6620-00
4 left in stock

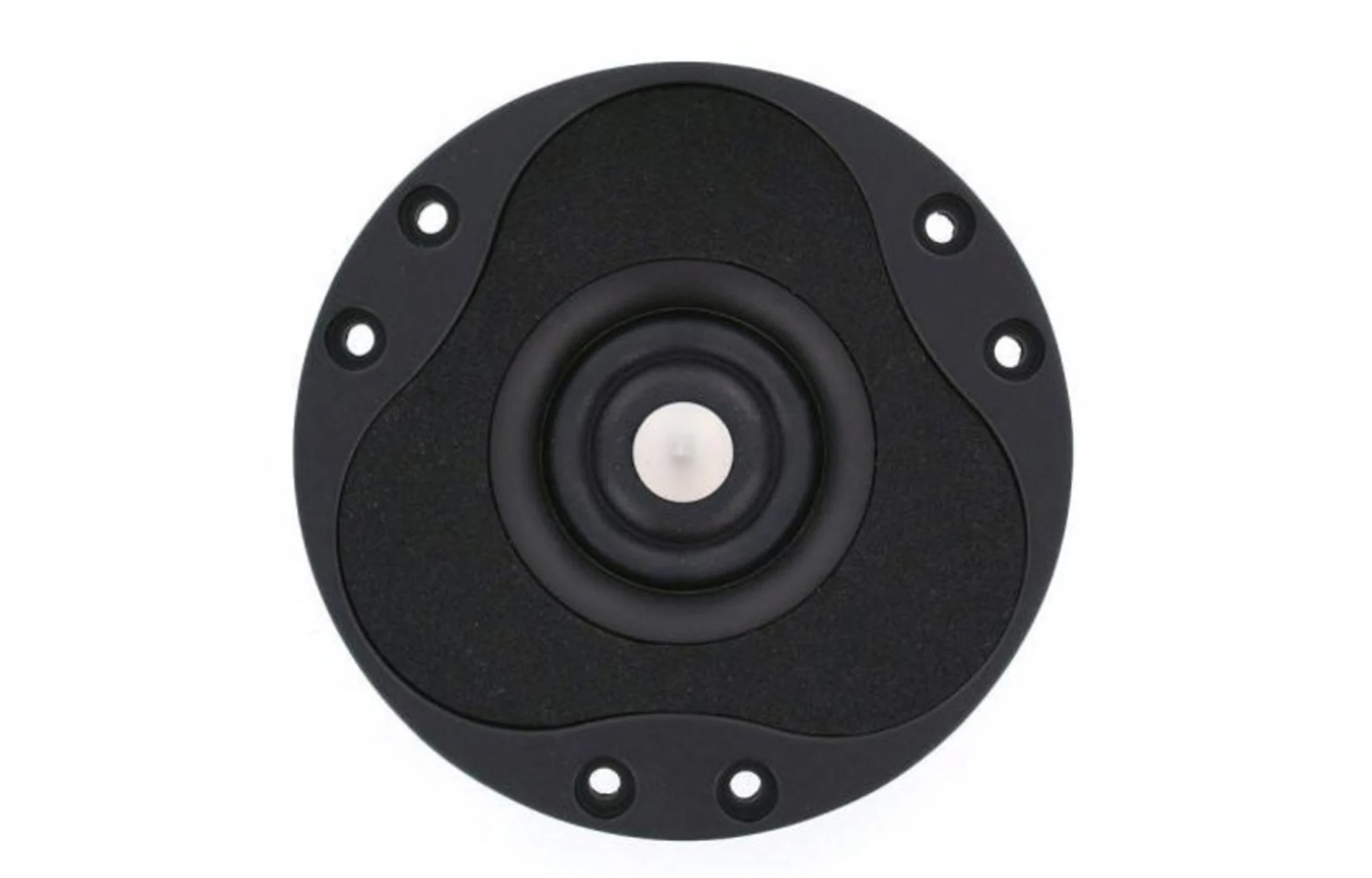

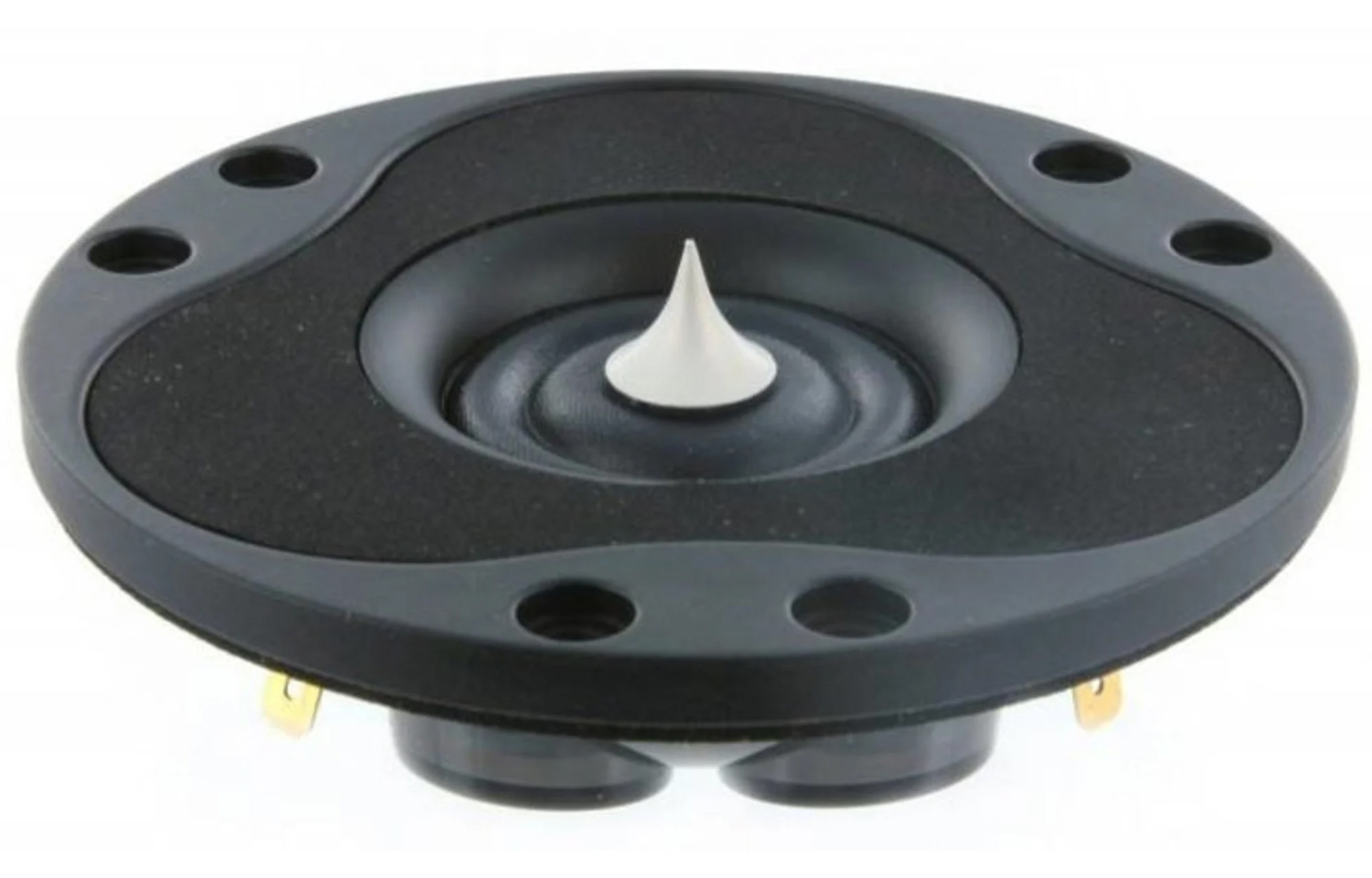

Scan-Speak Illuminator R3004/6620-00, 26mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
CA$399.25Each
- R3004/6620-00
- SCAN-SPEAK
Scan-Speak Illuminator R3004/6620-00, 26mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Tweeter Type | Ring Dome Tweeter |
| Cone / Dome Diameter | 26mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 150 W |
| Resonance Frequency | 520 Hz |
| Sensitivity | 90.4 dB |
The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. With its large roll surround and textile diaphragm provide a flat frequency response to above 30KHz. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
- 1" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- AirCirc Motor Design w. 6 Neo magnets
- Diffraction Damping Rubber Front
- Die Cast Rubber Painted Alu Face Plate
| FILENAME | ACTION |
|---|---|
| r30046620.pdf | Download |
