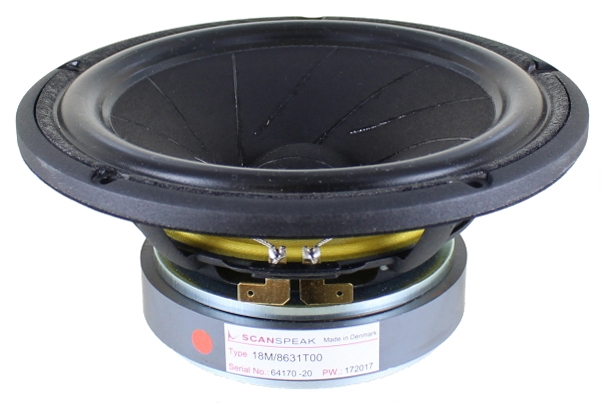

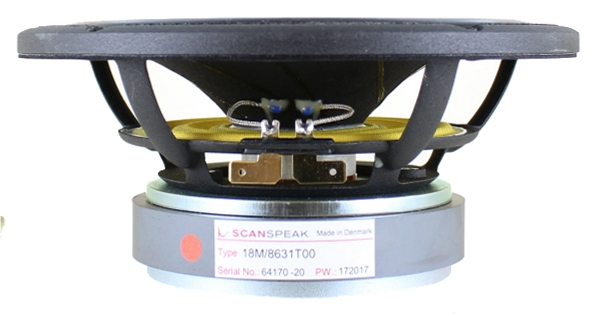

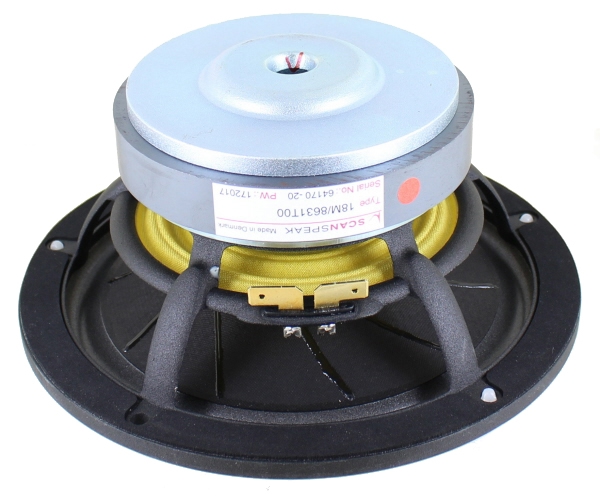

Scan-Speak Revelator 18M/8631G00, 182mm (7in) Paper Cone Midrange, with 38mm Voice Coil, 8ohm.

Product Specifications
Manufacturer SCAN-SPEAK
Speaker Type Paper Cone Midrange
Nominal Diameter 18cm
Impedance 8 ohms
Power Handling (RMS) 120 W
Frequency Response 65 -  5000Hz
Sensitivity 89 dB
Voice Coil Diameter 38mm

The Revelator midranges are well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

- Patented Symmetrical Drive motor design
- Low-loss Linear Suspension
- Coated Foam Surround

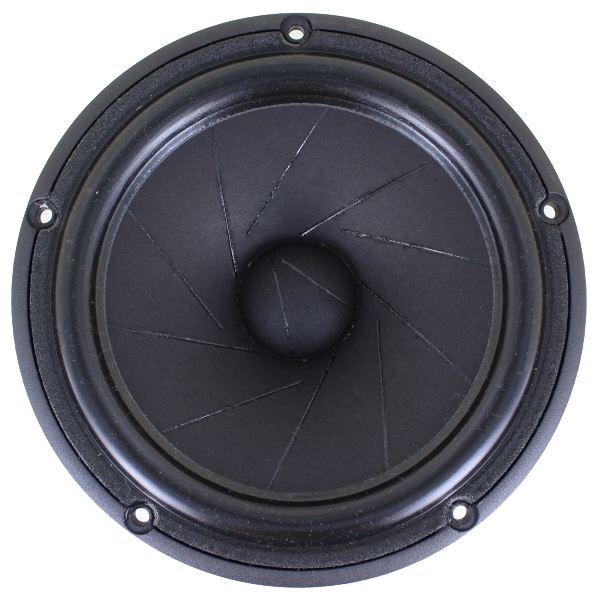

- Sliced Cone (Control Cone Breakups)
- High Sensitivity 89dB @ 2,83V
- Rigid Titanium Voice Coil Former

FILENAME ACTION
18m8631t00.pdf Download
