18W/8531G00
9 left in stock

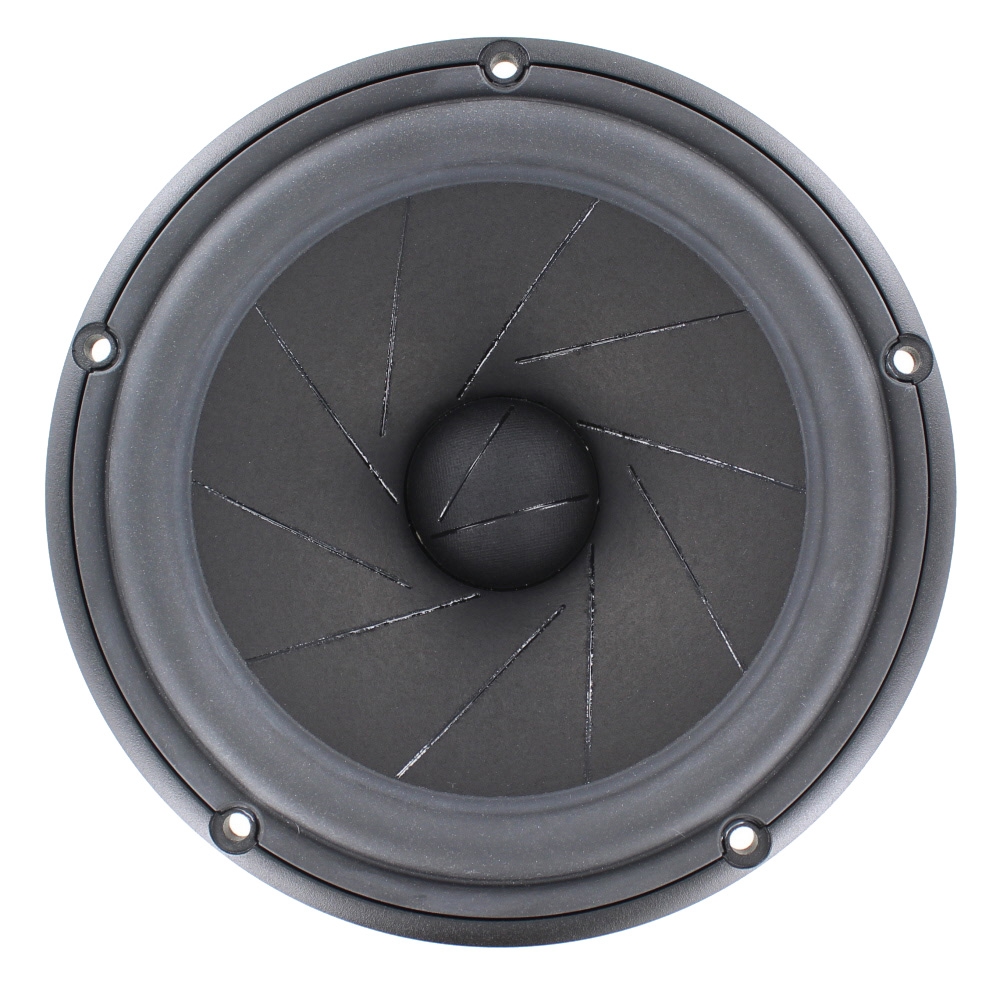

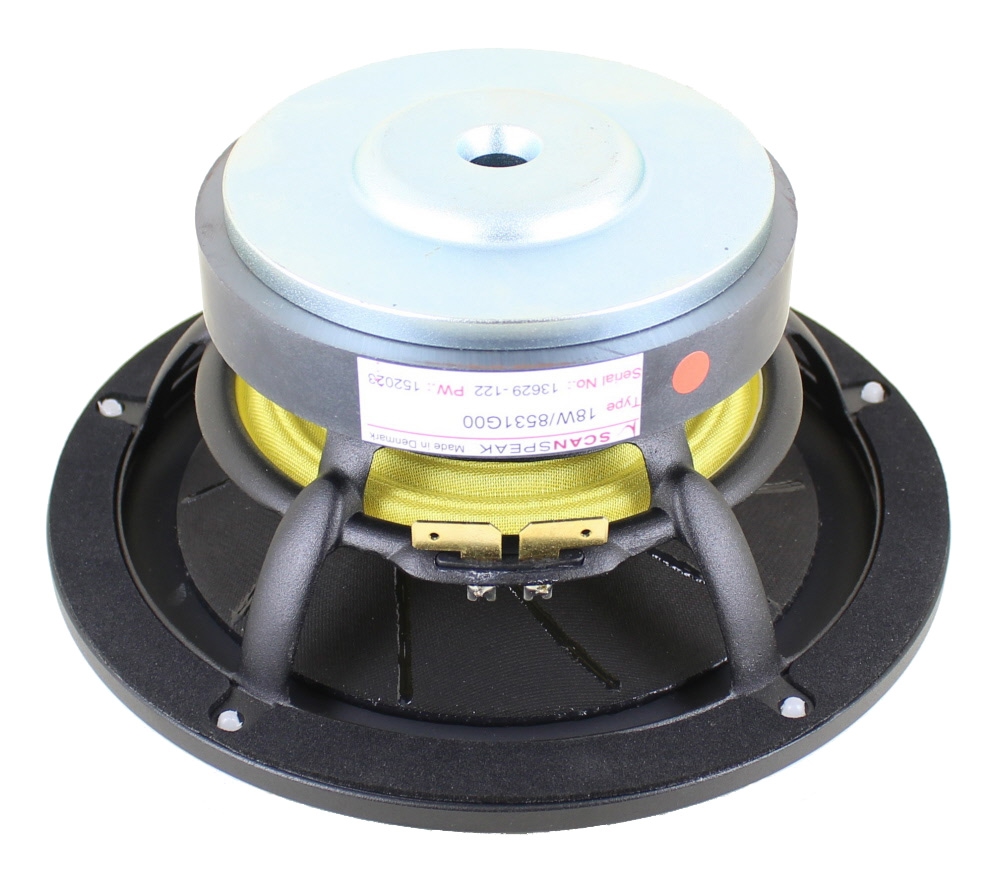

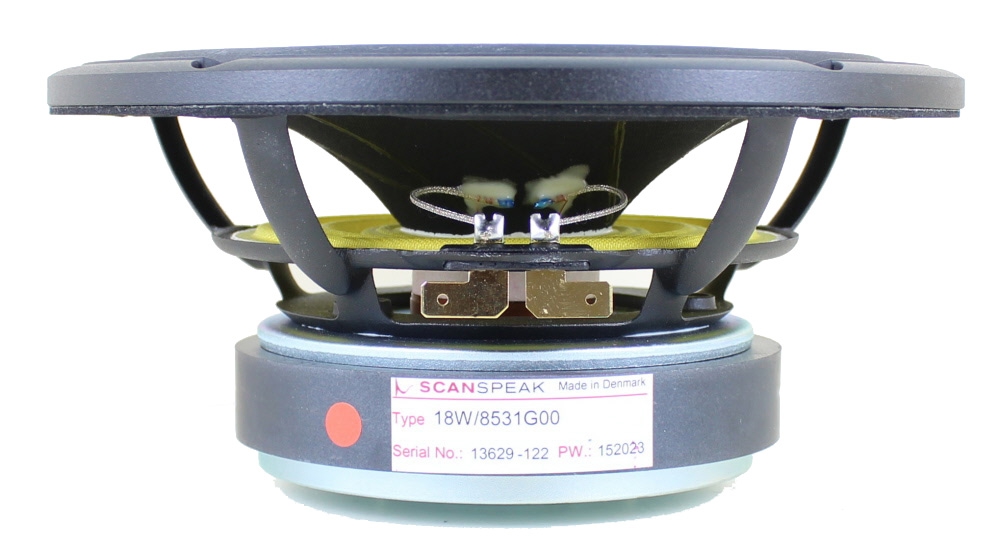

Scan-Speak Revelator 18W/8531G00, 182mm (7in) Paper Cone Midbass, with 38mm Voice Coil, 8ohm.
CA$336.78Each
- 18W/8531G00
- SCAN-SPEAK
Scan-Speak Revelator 18W/8531G00, 182mm (7in) Paper Cone Midbass, with 38mm Voice Coil, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Speaker Type | Paper Cone Midbass |
| Nominal Diameter | 18cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | - W |
| Frequency Response | 28 Hz |
| Sensitivity | 87 dB |
| Voice Coil Diameter | 38mm |
The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks Low-loss linear suspension and the patented Symmetrical drive (SD-2) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Large Ferrite Magnet System
| FILENAME | ACTION |
|---|---|
| 18w8531g00.pdf | Download |
