28W/8878T01
4 left in stock

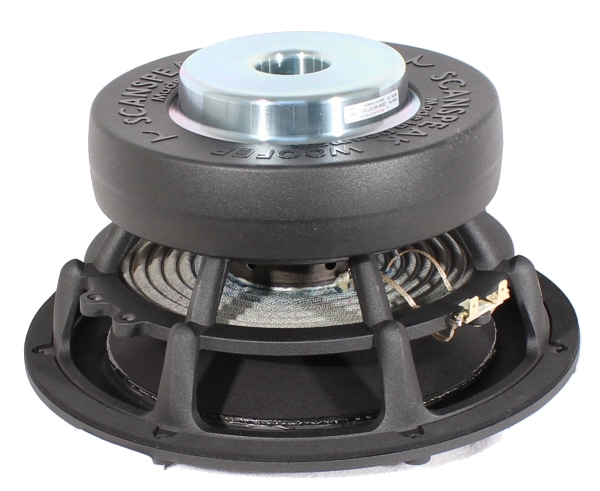

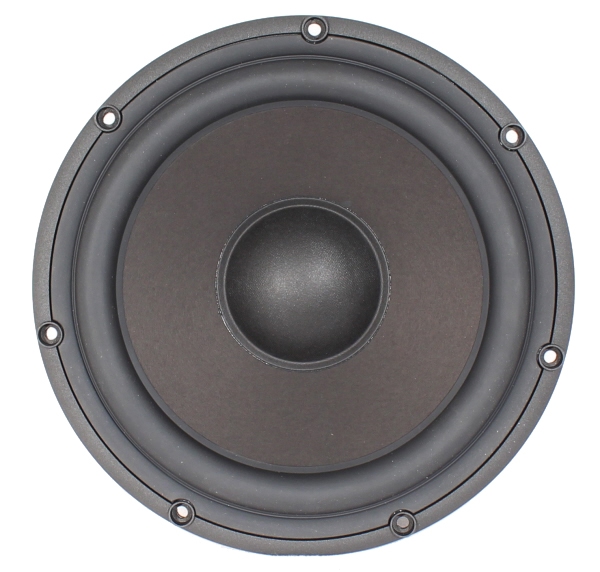

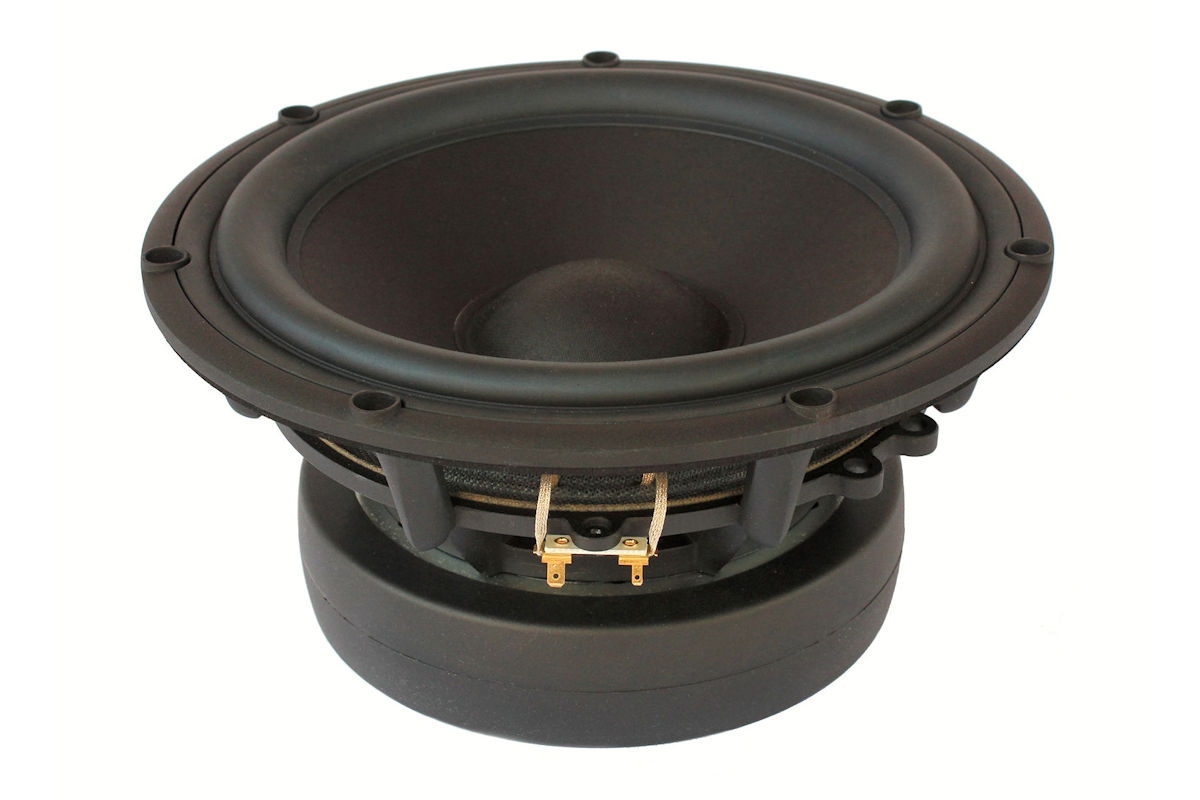

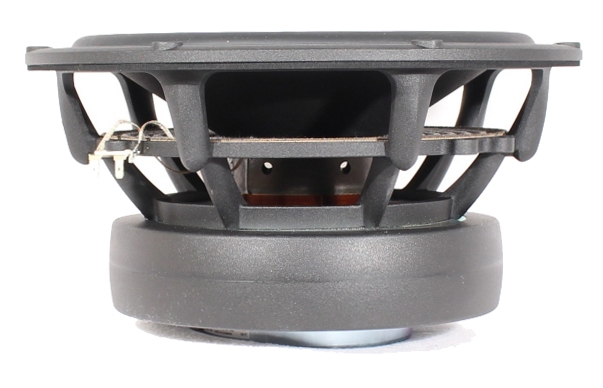

Scan-Speak Revelator 28W/8878T01, 28cm Paper Cone Woofer, with 75mm Voice Coil, 8ohm.
CA$953.32Each
- 28W/8878T01
- SCAN-SPEAK
Scan-Speak Revelator 28W/8878T01, 28cm Paper Cone Woofer, with 75mm Voice Coil, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Speaker Type | Paper Cone Woofer |
| Nominal Diameter | 28cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 200 W |
| Frequency Response | 22 Hz |
| Sensitivity | 88.5 dB |
| Voice Coil Diameter | 75mm |
The 28W/8878T01 is a very powerful 28cm woofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.
- Paper sandwich cone
- Spider with balanced tinsel leads
- 3" Voice coil, Titanium former, paper reinforced
- Patented Symmetrical Drive motor
- Long linear excursion
- Stiff and strong die cast aluminium chassis
| FILENAME | ACTION |
|---|---|
| 28w8878t01.pdf | Download |
