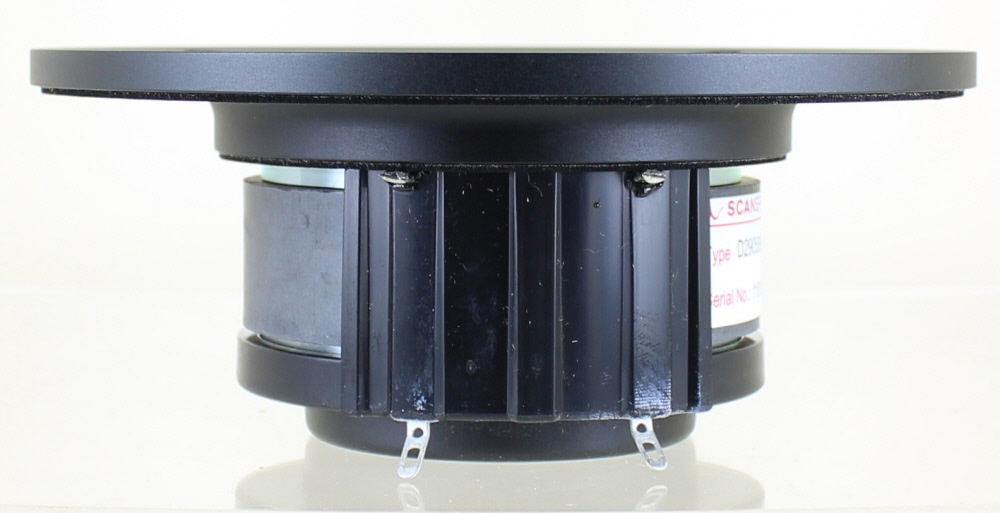

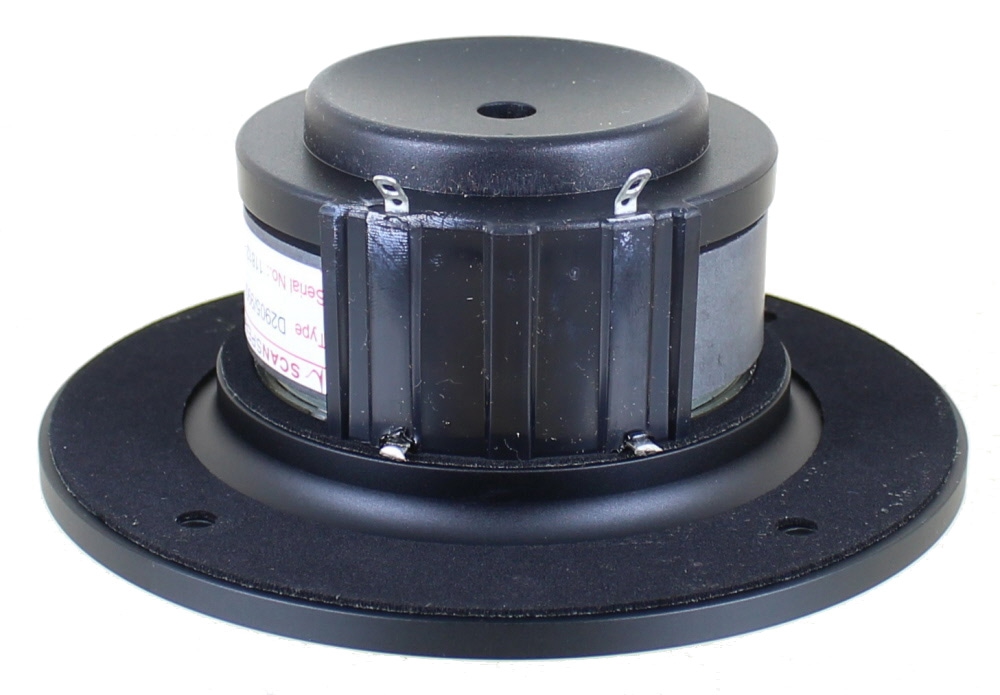

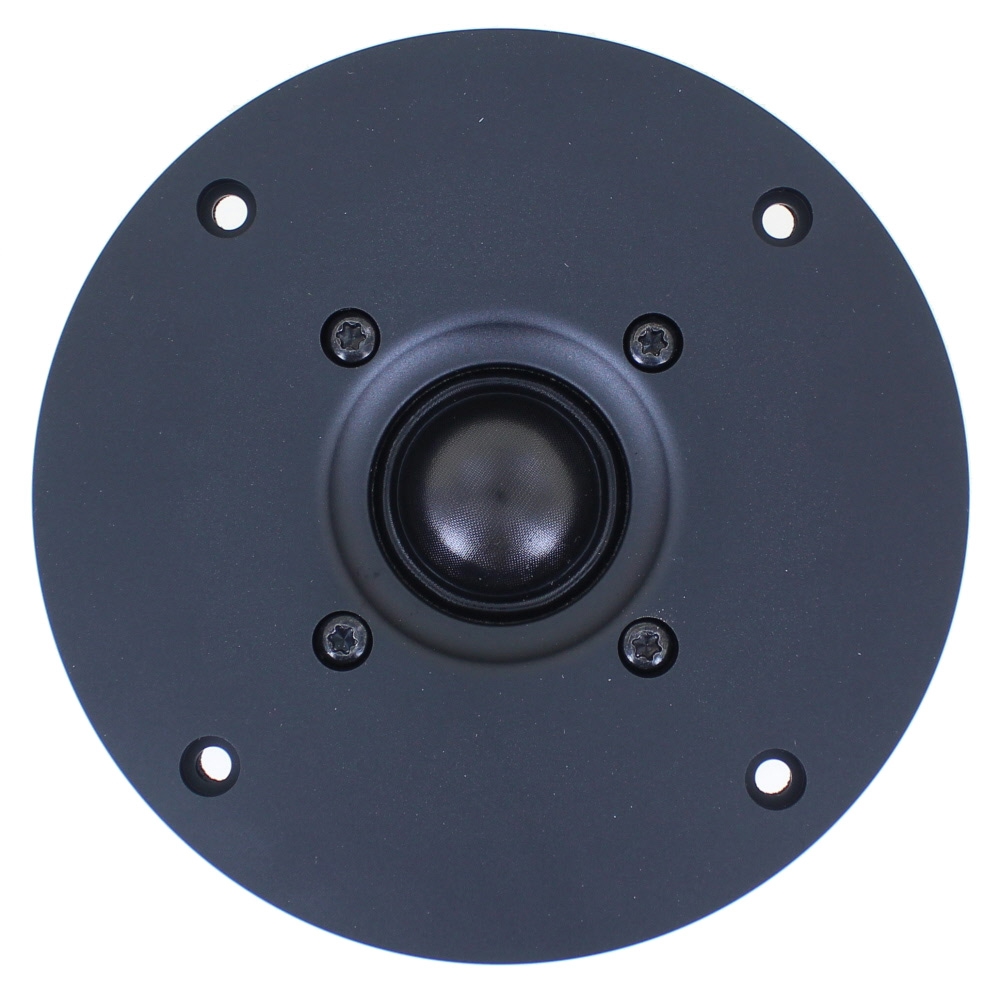

Scan-Speak Revelator D2905/9900, 28mm (1.25in / 1-1/4in) Textile Dome Tweeter, 6ohm, 130mm Faceplate
Product Specifications | |
---|---|
Manufacturer | SCAN-SPEAK |
Tweeter Type | Textile Dome Tweeter |
Cone / Dome Diameter | 28mm |
Impedance | 6 ohms |
Power Handling (RMS) | |
Resonance Frequency | 500 Hz |
Sensitivity | 91 dB |
D2905/990000 – The original Revelator tweeter – is build on the heritage of our successful Classic tweeters, continuing with Symmetrical Drive (SD-2) motor design which includes copper caps, the non resonant chamber and the special treated textile 29mm dome and further optimized optimized for the ultimate performance utilizing a large machined aluminium wave guide front.
- Excellent Sound Reproduction
- 1" Textile Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Wide Surround Textile Diaphragm
- Large Wave Guide Front
- Black Anodized Mashined Alu Face Plate
FILENAME | ACTION |
---|---|
d29059900.pdf | Download |
